Model # 867803032 Official Kenmore heat pump outdoor section

Here are the diagrams and repair parts for Official Kenmore 867803032 heat pump outdoor section, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Capacitor 1053068
#11

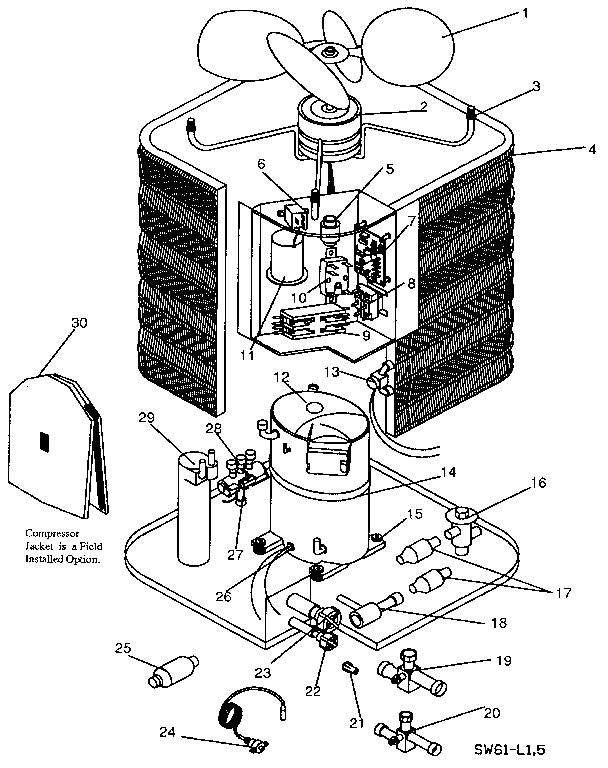

Functional replacement parts diagram

Capacitor

Part #1053068

Replaced by #12885

?
Manufacturer substitution
This part replaces 1053068. Substitute parts can look different from the original.
BEST SELLER
$19.60
In Stock
Spst Relay 1053004
#10

Functional replacement parts diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor Mount 1051460
#3

Functional replacement parts diagram

Central air conditioner condenser fan motor mount

Part #1051460

$310.20
In Stock
Central Air Conditioner Condenser Fan Motor, 1/3-hp 1050703
#2

Functional replacement parts diagram

Central air conditioner condenser fan motor, 1/3-hp

Part #1050703

$319.60 |
$12.00 OFF Phone Price : $331.60
In Stock
Check Valve 1052910
#18

Functional replacement parts diagram

Check valve

Part #1052910

$84.67
In Stock
Press Switch 1053017
#24

Functional replacement parts diagram

Press switch

Part #1053017

$11.23
In Stock
Raceway 1051322
#15A

Non-functional replacement parts diagram

Raceway

Part #1051322

$10.20
In Stock
Expns Valve 1051425
#16

Functional replacement parts diagram

Expns valve

Part #1051425

Replaced by #1082032

?
Manufacturer substitution
This part replaces 1051425. Substitute parts can look different from the original.
$350.78
In Stock
Dpdt Relay 96467
#8

Functional replacement parts diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Raceway 1051321
#15

Non-functional replacement parts diagram

Raceway

Part #1051321

Replaced by #1051322

?
Manufacturer substitution
This part replaces 1051321. Substitute parts can look different from the original.
$10.20
In Stock
