Model # P3URD16N07501 Official York upflow natural gas furnace

Here are the diagrams and repair parts for Official York P3URD16N07501 upflow natural gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Kero-sun Furnace Burner 029-20482-000
#20

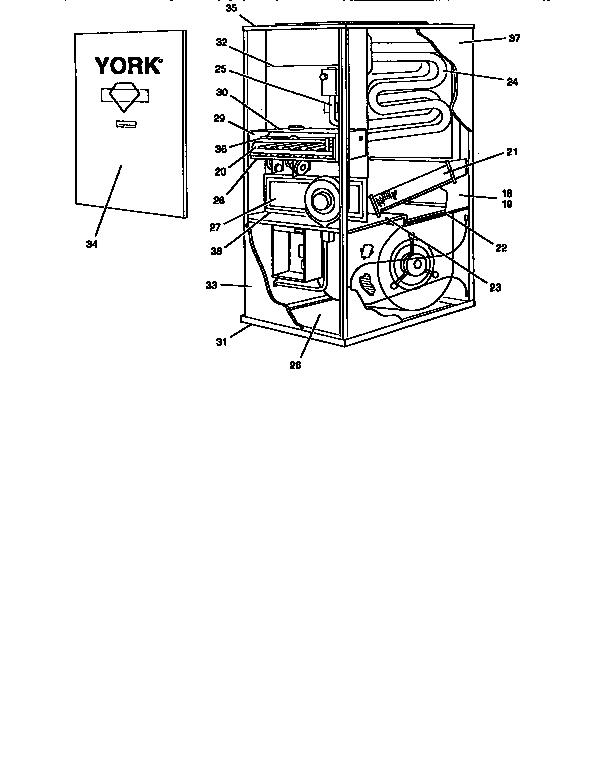

Heat exchanger diagram

Kero-sun furnace burner

Part #029-20482-000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Burner Flame Sensor 025-30788-700
#9

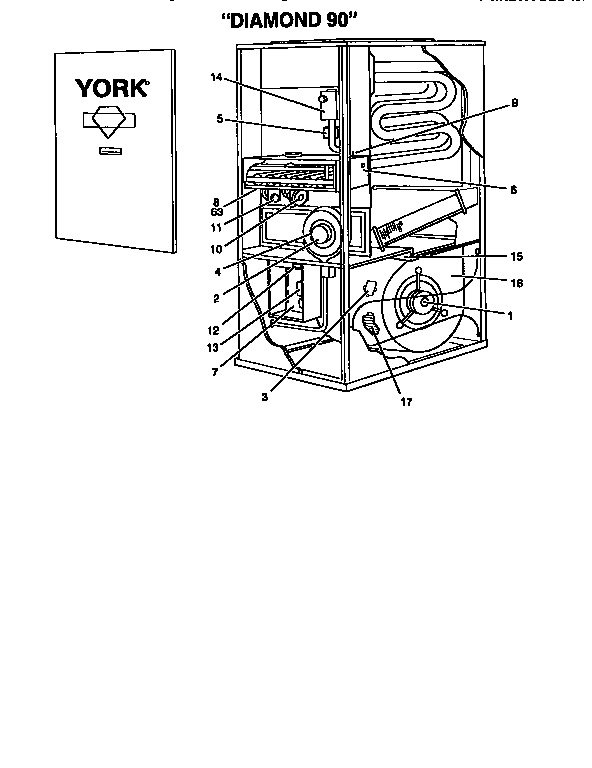

Blower assembly diagram

Furnace burner flame sensor

Part #025-30788-700

The manufacturer no longer makes this part, and there's no substitute part

Gasket 028-11647-000
#46

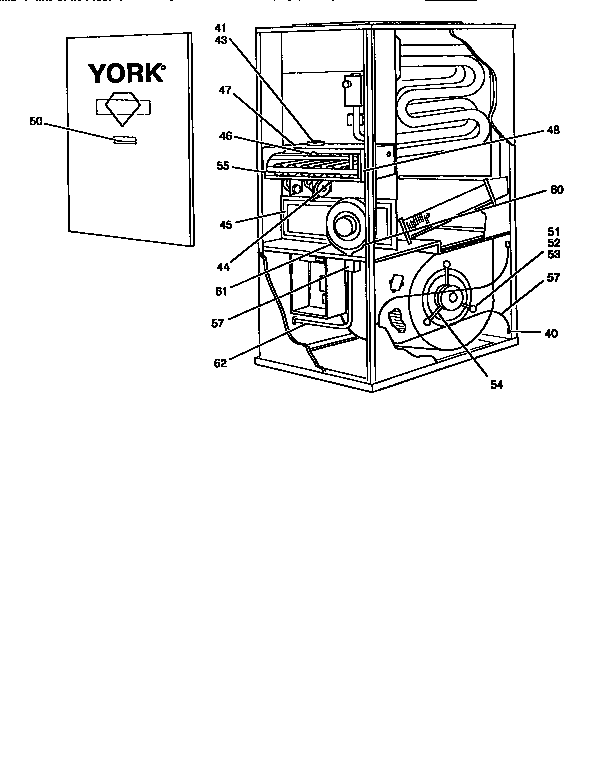

Burner orifice diagram

Gasket

Part #028-11647-000

$18.00
In Stock
Panel, Front (blower) 073-14467-003
#33

Heat exchanger diagram

Panel, front (blower)

Part #073-14467-003

The manufacturer no longer makes this part, and there's no substitute part

Control Board 025-27792-001
#6

Blower assembly diagram

Control board

Part #025-27792-001

The manufacturer no longer makes this part, and there's no substitute part

Cover 073-14427-003
#34

Heat exchanger diagram

Cover

Part #073-14427-003

The manufacturer no longer makes this part, and there's no substitute part

Washer 028-09412-002
#52

Burner orifice diagram

Washer

Part #028-09412-002

The manufacturer no longer makes this part, and there's no substitute part

Wrapper, Burner Box 073-14544-000
#30

Heat exchanger diagram

Wrapper, burner box

Part #073-14544-000

The manufacturer no longer makes this part, and there's no substitute part

Connection 028-11289-000
#41

Burner orifice diagram

Connection

Part #028-11289-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Burner Box (bottom) 073-17451-000
#28

Heat exchanger diagram

Panel, burner box (bottom)

Part #073-17451-000

The manufacturer no longer makes this part, and there's no substitute part
