Model # 9V03 Official Bissell maxi-glide bls vacuum

Here are the diagrams and repair parts for Official Bissell 9V03 maxi-glide bls vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Power Rocker 2031035
#9

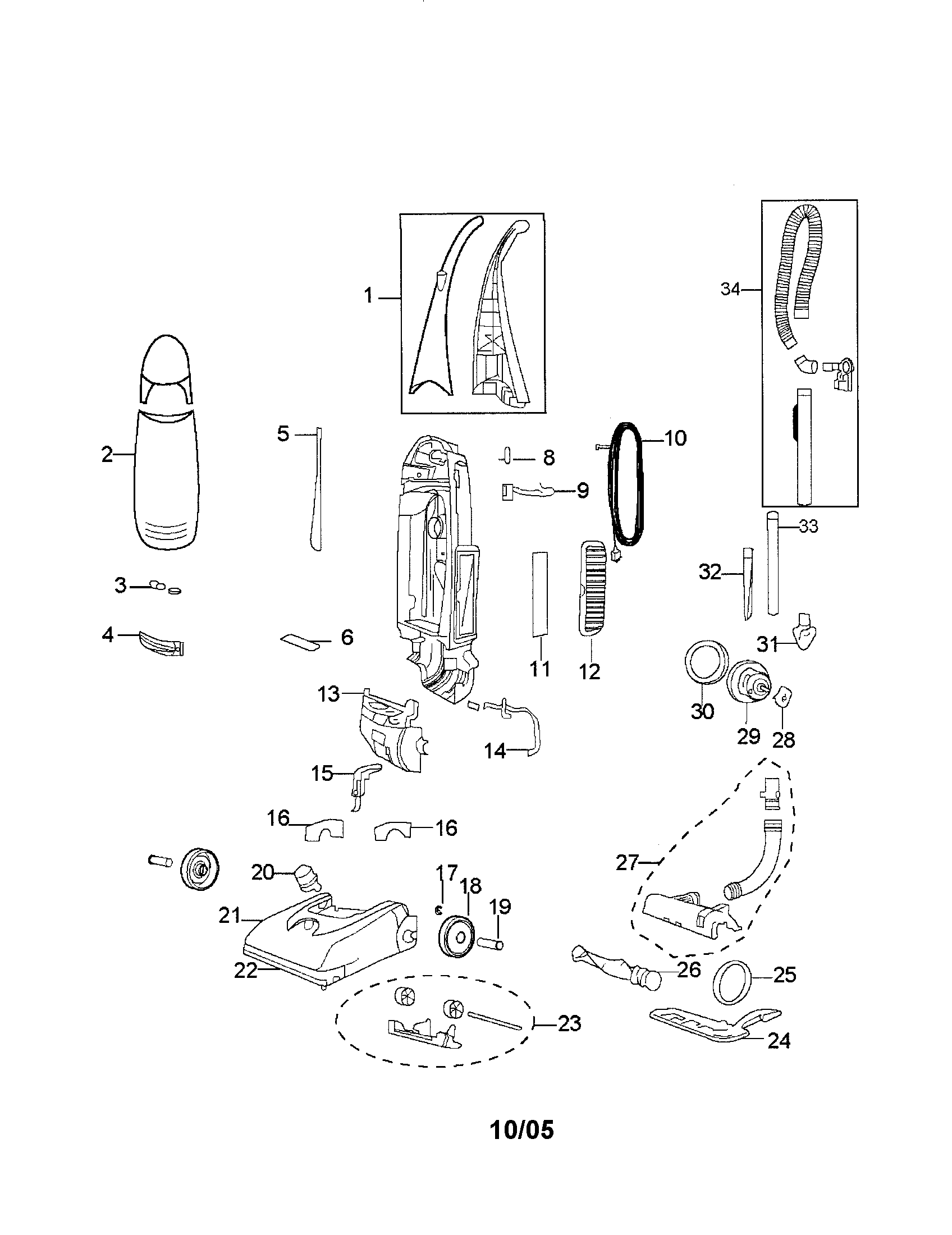

Maxi-glide bsc diagram

Power rocker

Part #2031035

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 2031097
#34

Maxi-glide bsc diagram

Vacuum hose

Part #2031097

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 2031095
#20

Maxi-glide bsc diagram

Vacuum knob

Part #2031095

The manufacturer no longer makes this part, and there's no substitute part

Bissell Power Cord 2031159
#10

Maxi-glide bsc diagram

Bissell power cord

Part #2031159

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Screw 2031003

#(NI)

All parts diagram

Vacuum handle screw

Part #2031003

The manufacturer no longer makes this part, and there's no substitute part

Harness 2031108
#14

Maxi-glide bsc diagram

Harness

Part #2031108

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter 2031009
#11

Maxi-glide bsc diagram

Vacuum exhaust filter

Part #2031009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 2031100
#29

Maxi-glide bsc diagram

Vacuum motor

Part #2031100

The manufacturer no longer makes this part, and there's no substitute part

Brush Tool 2031099
#31

Maxi-glide bsc diagram

Brush tool

Part #2031099

The manufacturer no longer makes this part, and there's no substitute part

Wand 2031022
#33

Maxi-glide bsc diagram

Wand

Part #2031022

The manufacturer no longer makes this part, and there's no substitute part
