Hoover
Upright Vacuum

Model # U5786-900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5786-900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Lit.pick/e 39511018
#77

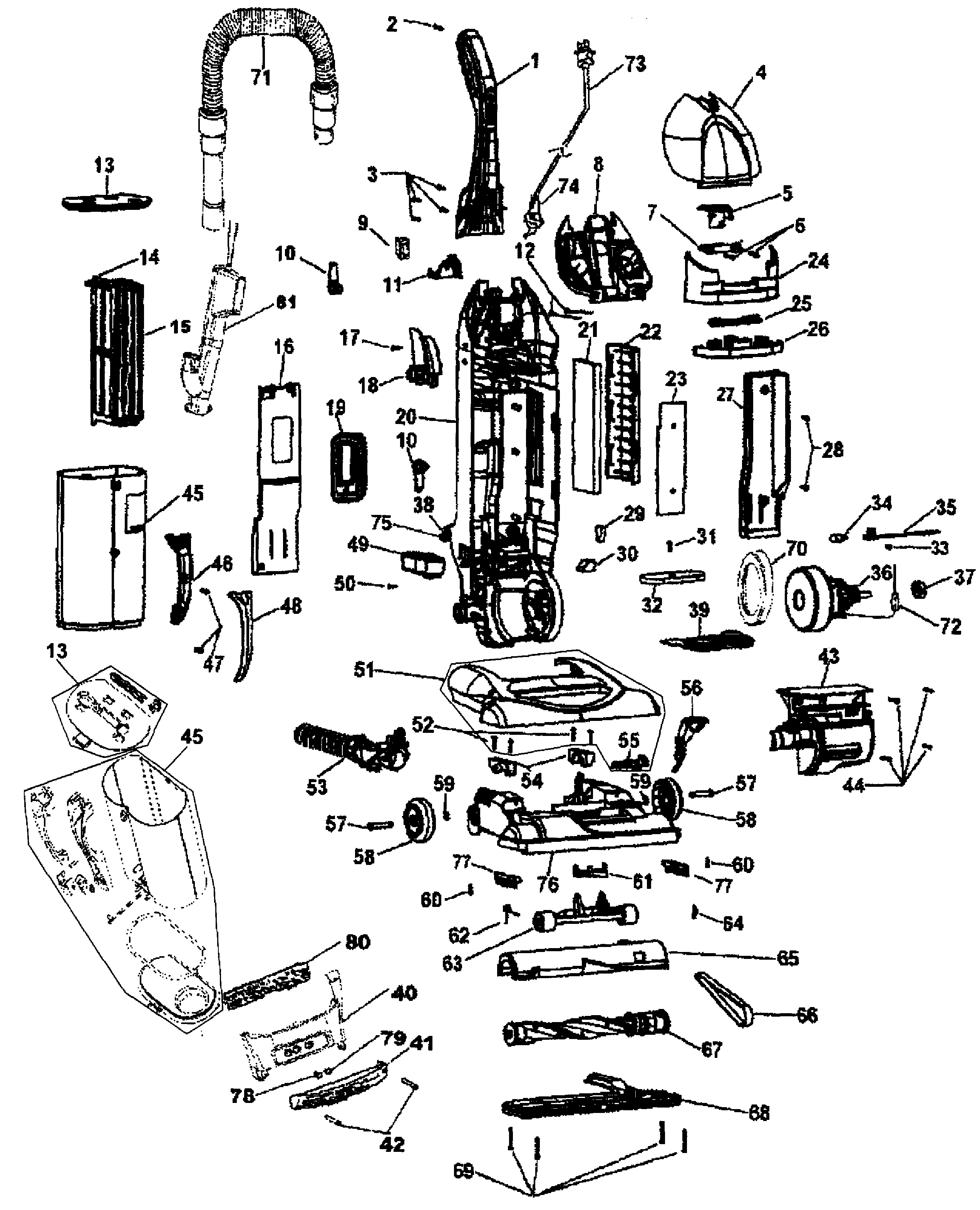

Vacuum diagram

Lit.pick/e

Part #39511018

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#62

Vacuum diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Ribbed Shoe 013261AY
#64

Vacuum diagram

Ribbed shoe

Part #013261AY

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 46383334
#73

Vacuum diagram

Vacuum power cord

Part #46383334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#66

Vacuum diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter Cover 37257289
#22

Vacuum diagram

Vacuum filter cover

Part #37257289

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 21447246
#12

Vacuum diagram

Regina carpet cleaner screw

Part #21447246

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Assembly 27212057
#36

Vacuum diagram

Vacuum motor assembly

Part #27212057

The manufacturer no longer makes this part, and there's no substitute part

Cover 37259016
#27

Vacuum diagram

Cover

Part #37259016

The manufacturer no longer makes this part, and there's no substitute part

Lid Latch 38562034
#5

Vacuum diagram

Lid latch

Part #38562034

The manufacturer no longer makes this part, and there's no substitute part
