Model # CDP-C435 Official Sony cd player

Here are the diagrams and repair parts for Official Sony CDP-C435 cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Pcb Assembly 164790711
#7

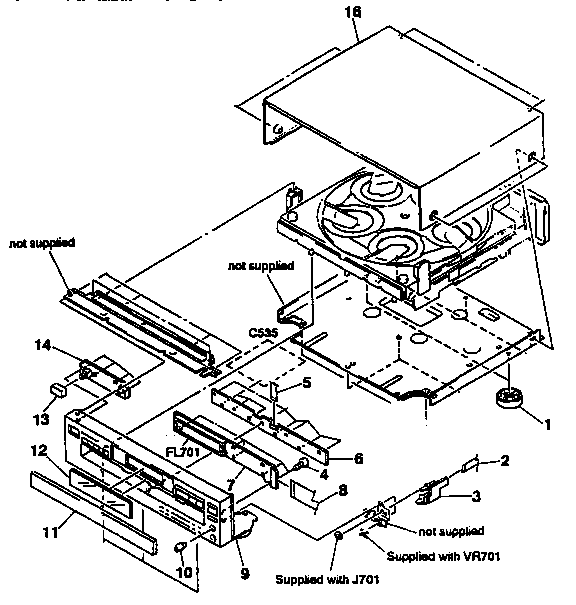

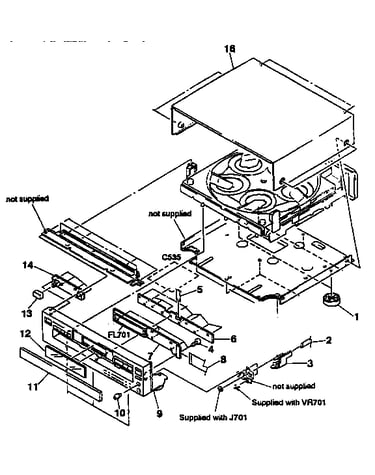

Front panel & case diagram

Pcb assembly

Part #164790711

The manufacturer no longer makes this part, and there's no substitute part

Cushion 495161901
#2

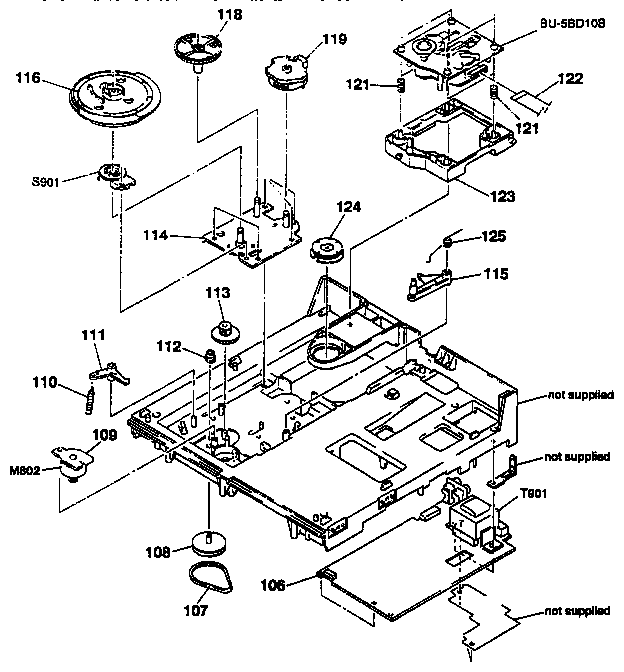

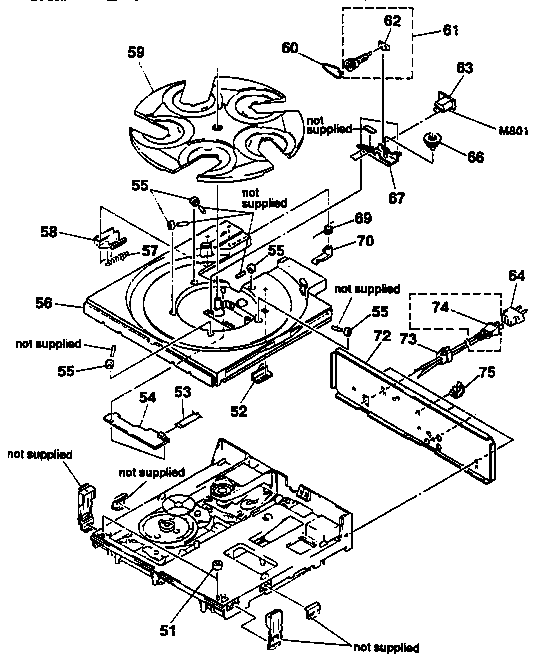

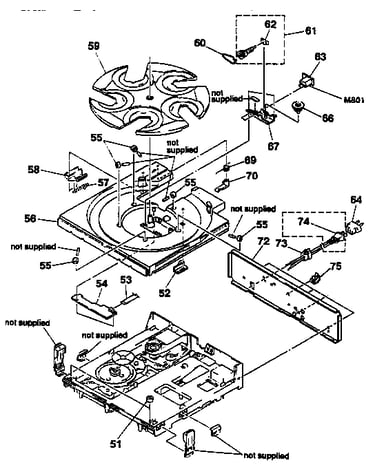

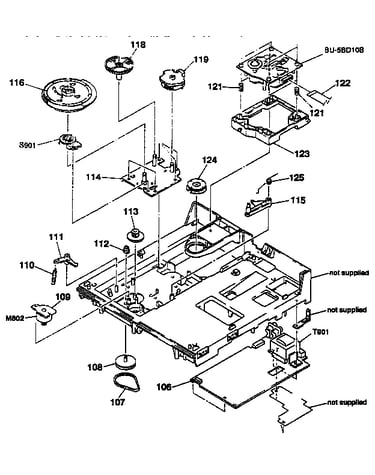

Back panel & disc diagram

Cushion

Part #495161901

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 164790811
#10

Front panel & case diagram

Pcb assembly

Part #164790811

The manufacturer no longer makes this part, and there's no substitute part

Sony Panel 495822241
#19

Back panel & disc diagram

Sony panel

Part #495822241

The manufacturer no longer makes this part, and there's no substitute part

Sony Wire 175112111
#11

Front panel & case diagram

Sony wire

Part #175112111

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly A4649432A
#9

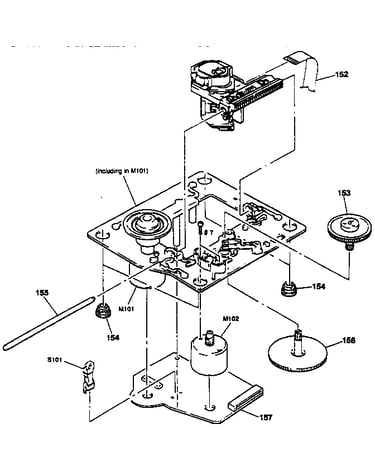

Optical pickup block diagram

Pcb assembly

Part #A4649432A

The manufacturer no longer makes this part, and there's no substitute part

Sony Pcb Assembly A4649668A
#12

Front panel & case diagram

Sony pcb assembly

Part #A4649668A

The manufacturer no longer makes this part, and there's no substitute part

Spring 495729401
#7

Back panel & disc diagram

Spring

Part #495729401

The manufacturer no longer makes this part, and there's no substitute part

Bushing 370324400
#20

Back panel & disc diagram

Bushing

Part #370324400

The manufacturer no longer makes this part, and there's no substitute part

Gear M 491756701
#5

Optical pickup block diagram

Gear m

Part #491756701

The manufacturer no longer makes this part, and there's no substitute part
