Model # 4481AT Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 4481AT vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Lens 15072-313N
#9

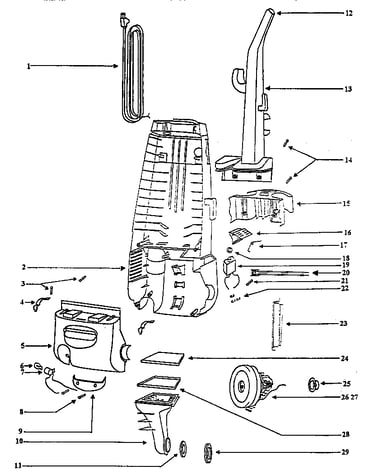

Handle and bag housing diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-2
#5

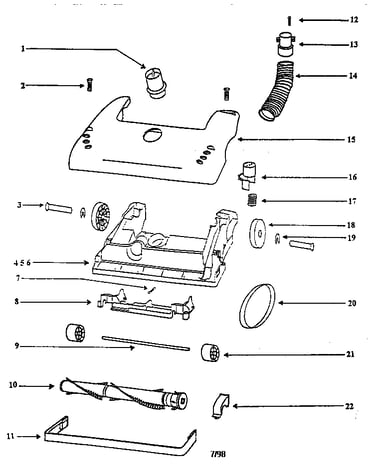

Base assembly diagram

Gasket

Part #58506-2

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#7

Base assembly diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 38479-2
#14

Base assembly diagram

Vacuum hose

Part #38479-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 15234-288N
#11

Base assembly diagram

Vacuum furniture guard

Part #15234-288N

The manufacturer no longer makes this part, and there's no substitute part

Cut-off 59213
#20

Handle and bag housing diagram

Cut-off

Part #59213

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59595-1
#11

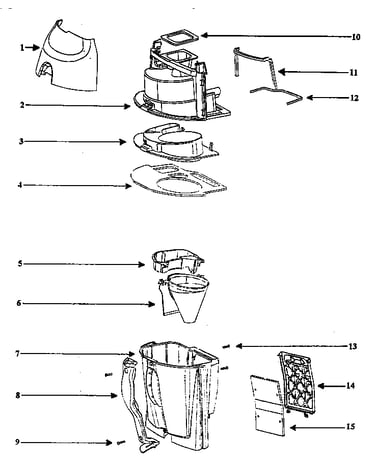

Cyclonic cassette assembly diagram

Gasket

Part #59595-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Screw, 10-pack 54669-2
#2

Base assembly diagram

Electrolux vacuum screw, 10-pack

Part #54669-2

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Knob 39121
#1

Base assembly diagram

Adjustment knob

Part #39121

The manufacturer no longer makes this part, and there's no substitute part
