Makita
Power Sander

Model # 9902 Official Makita 3 x 21" belt sander

Here are the diagrams and repair parts for Official Makita 9902 3 x 21" belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Spring 231225-7
#30

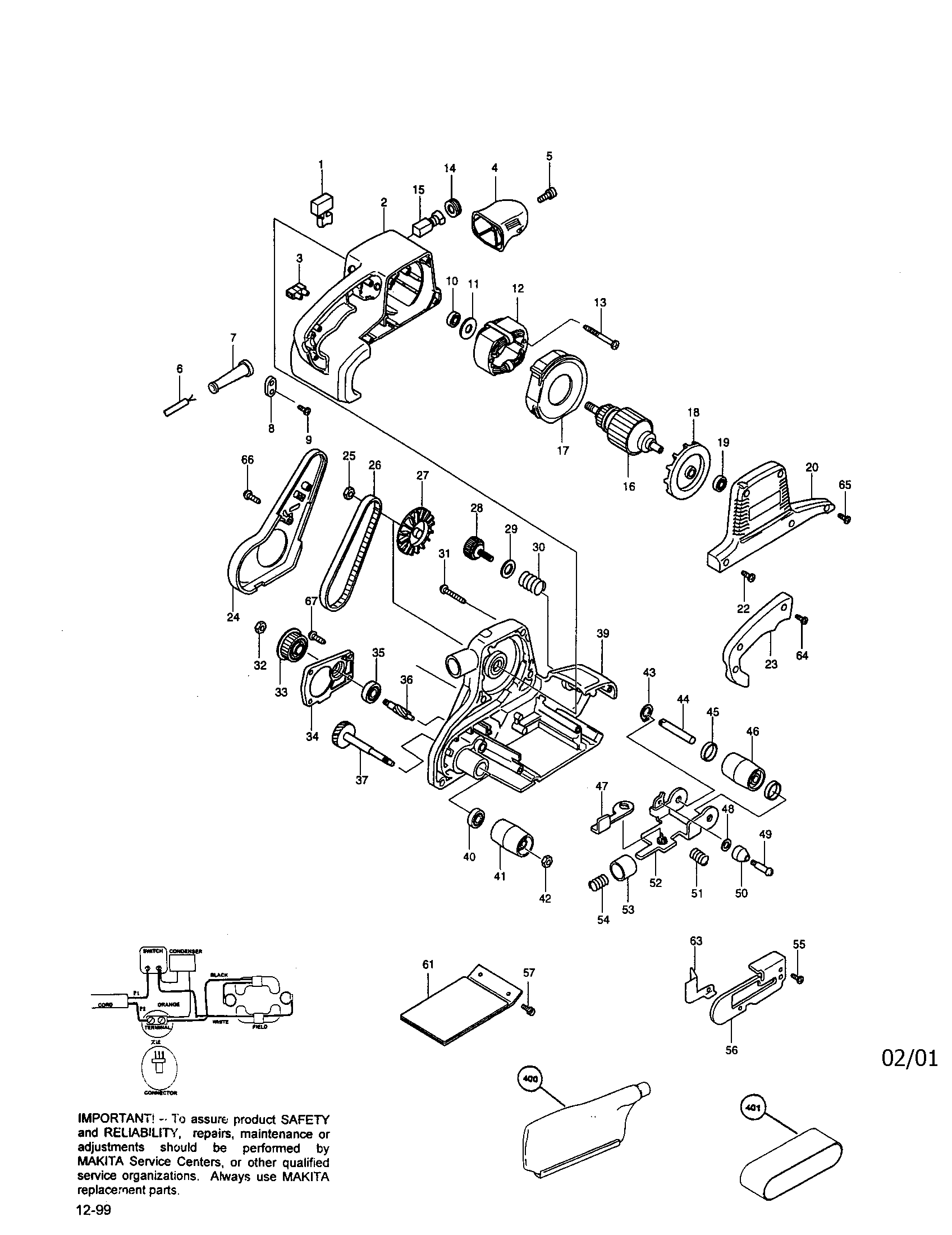

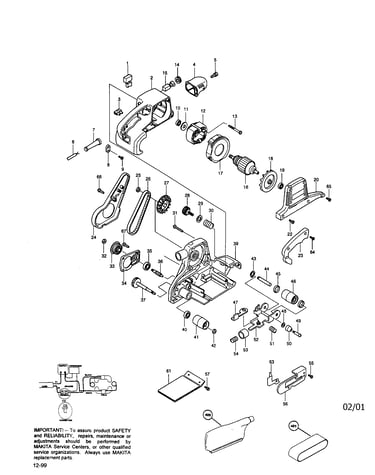

3" x 21" belt sander diagram

Spring

Part #231225-7

The manufacturer no longer makes this part, and there's no substitute part

Trmnl Blck 654532-5
#3

3" x 21" belt sander diagram

Trmnl blck

Part #654532-5

The manufacturer no longer makes this part, and there's no substitute part

Cup Washer 253922-5
#45

3" x 21" belt sander diagram

Cup washer

Part #253922-5

The manufacturer no longer makes this part, and there's no substitute part

Plate 151749-6
#61

3" x 21" belt sander diagram

Plate

Part #151749-6

The manufacturer no longer makes this part, and there's no substitute part

Shoulder S 265059-6
#49

3" x 21" belt sander diagram

Shoulder s

Part #265059-6

The manufacturer no longer makes this part, and there's no substitute part

Screw 251815-0
#28

3" x 21" belt sander diagram

Screw

Part #251815-0

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 643750-0
#14

3" x 21" belt sander diagram

Brush holder

Part #643750-0

The manufacturer no longer makes this part, and there's no substitute part

Bearing 210023-2
#19

3" x 21" belt sander diagram

Bearing

Part #210023-2

The manufacturer no longer makes this part, and there's no substitute part

Switch 651284-9
#1

3" x 21" belt sander diagram

Switch

Part #651284-9

The manufacturer no longer makes this part, and there's no substitute part

Pulley 222156-1
#33

3" x 21" belt sander diagram

Pulley

Part #222156-1

The manufacturer no longer makes this part, and there's no substitute part
