Model # 38TKB048 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TKB048-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Valve Piston EA52PH082
#48

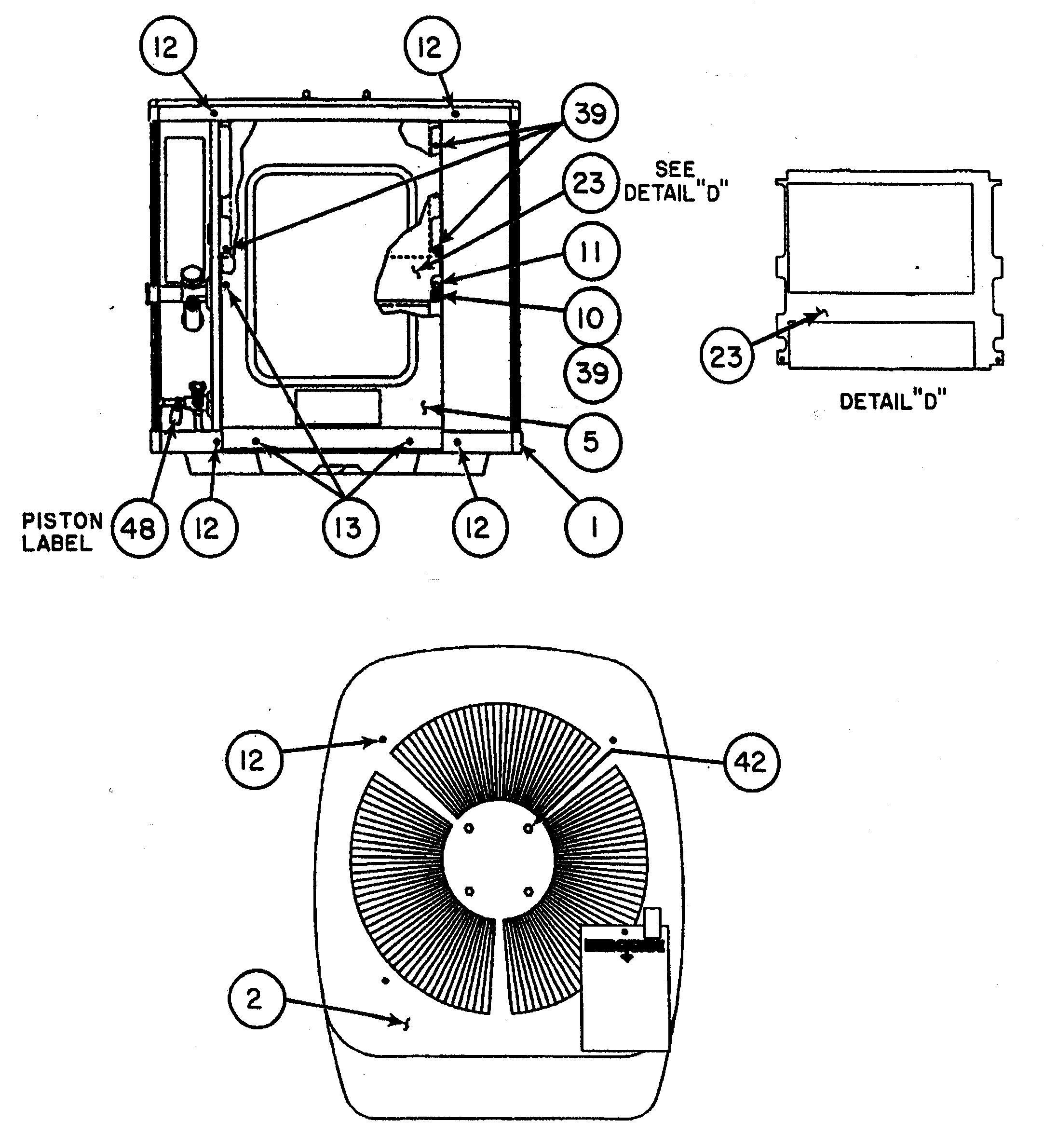

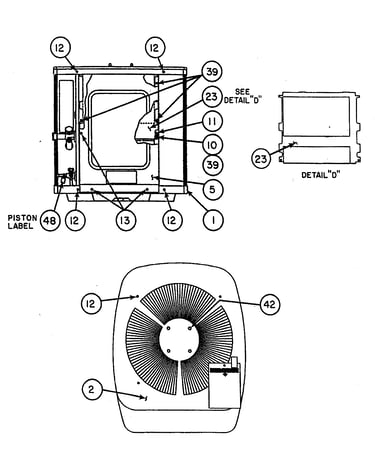

Top/control box cover diagram

Valve piston

Part #EA52PH082

$11.97
In Stock
Paint 313974-751
#NI

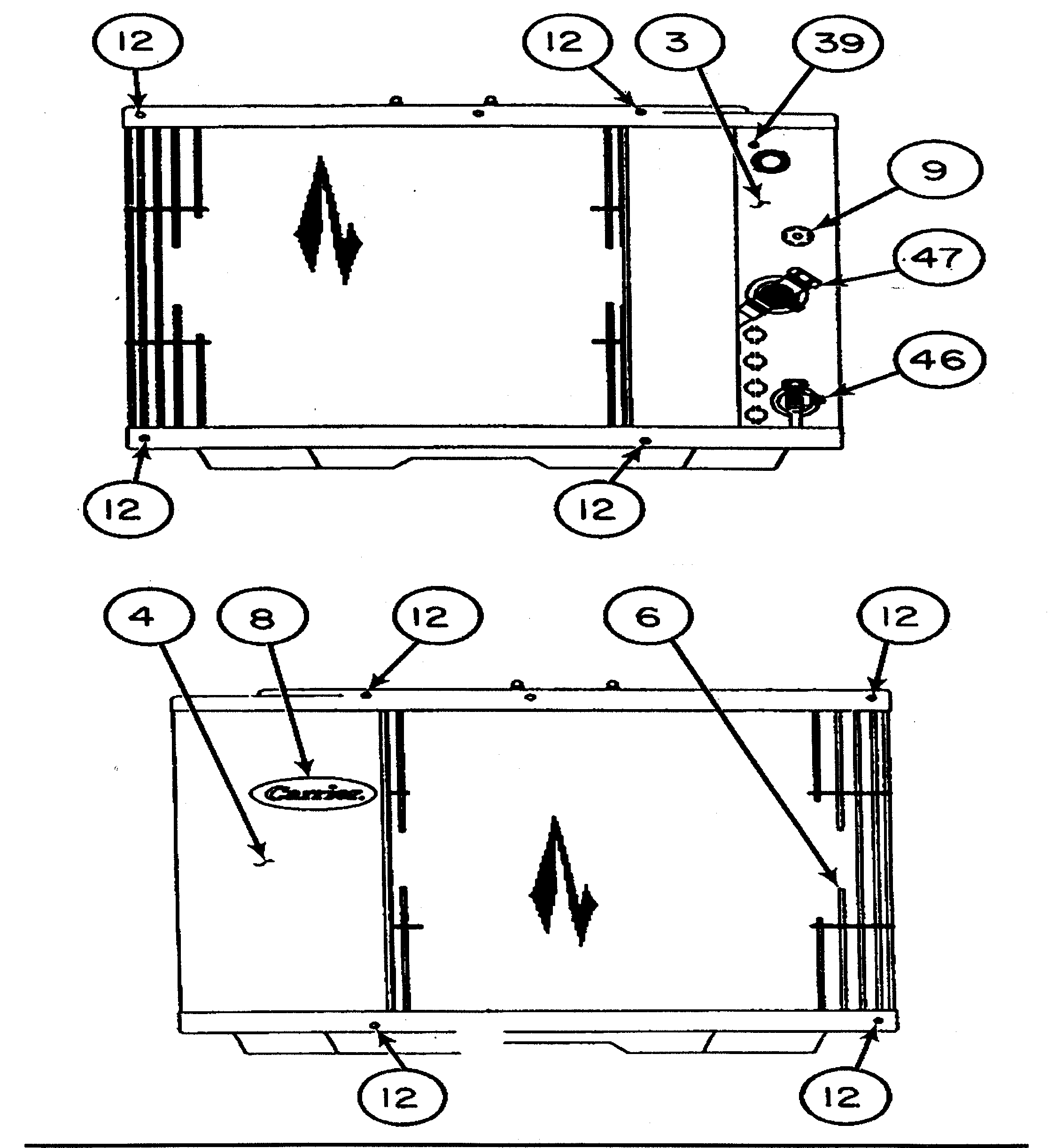

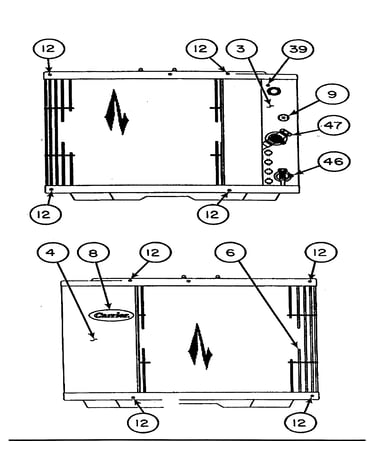

Inlet grille/service panel diagram

Paint

Part #313974-751

$60.89
In Stock
Grommet P041-5103
#17

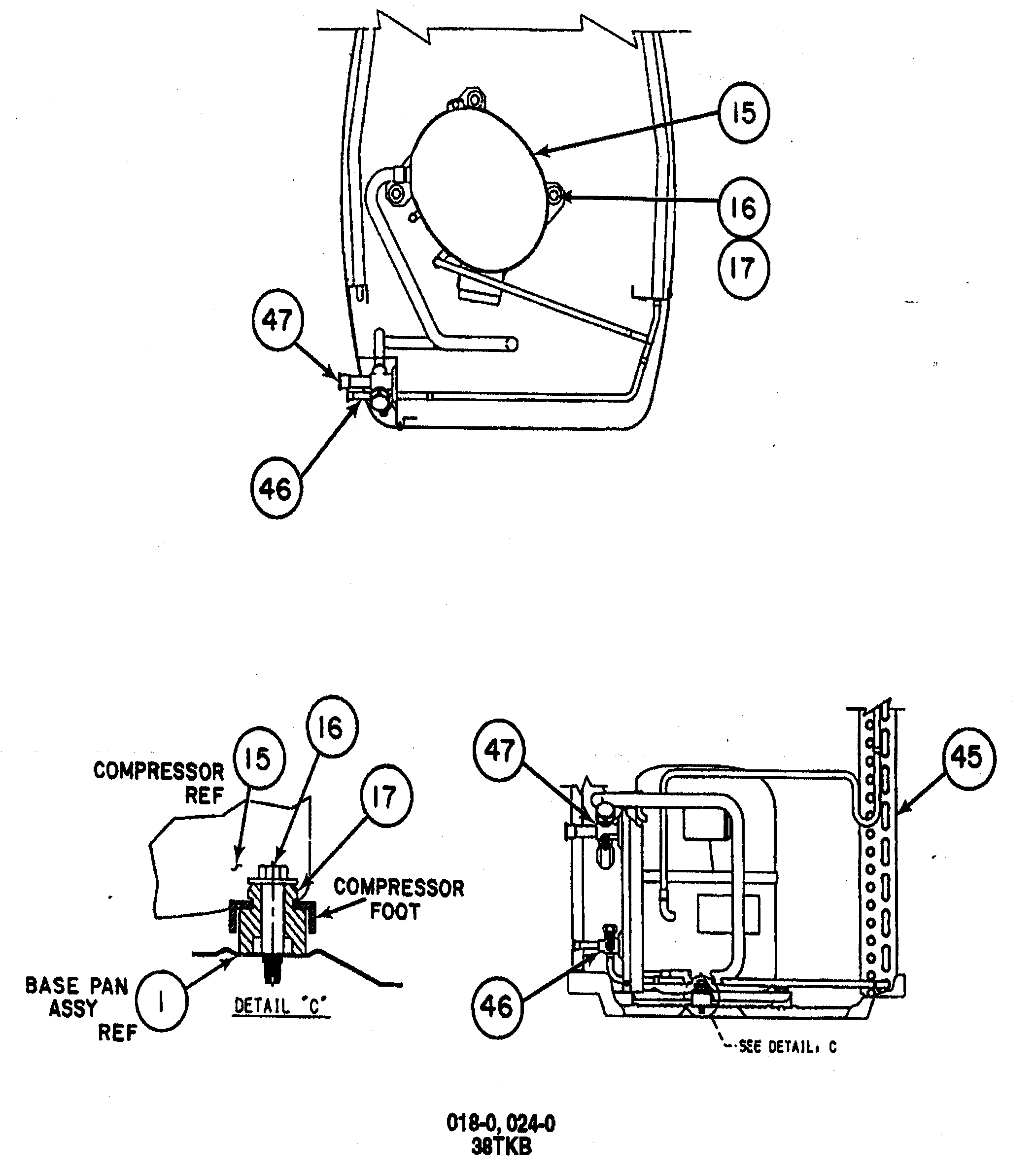

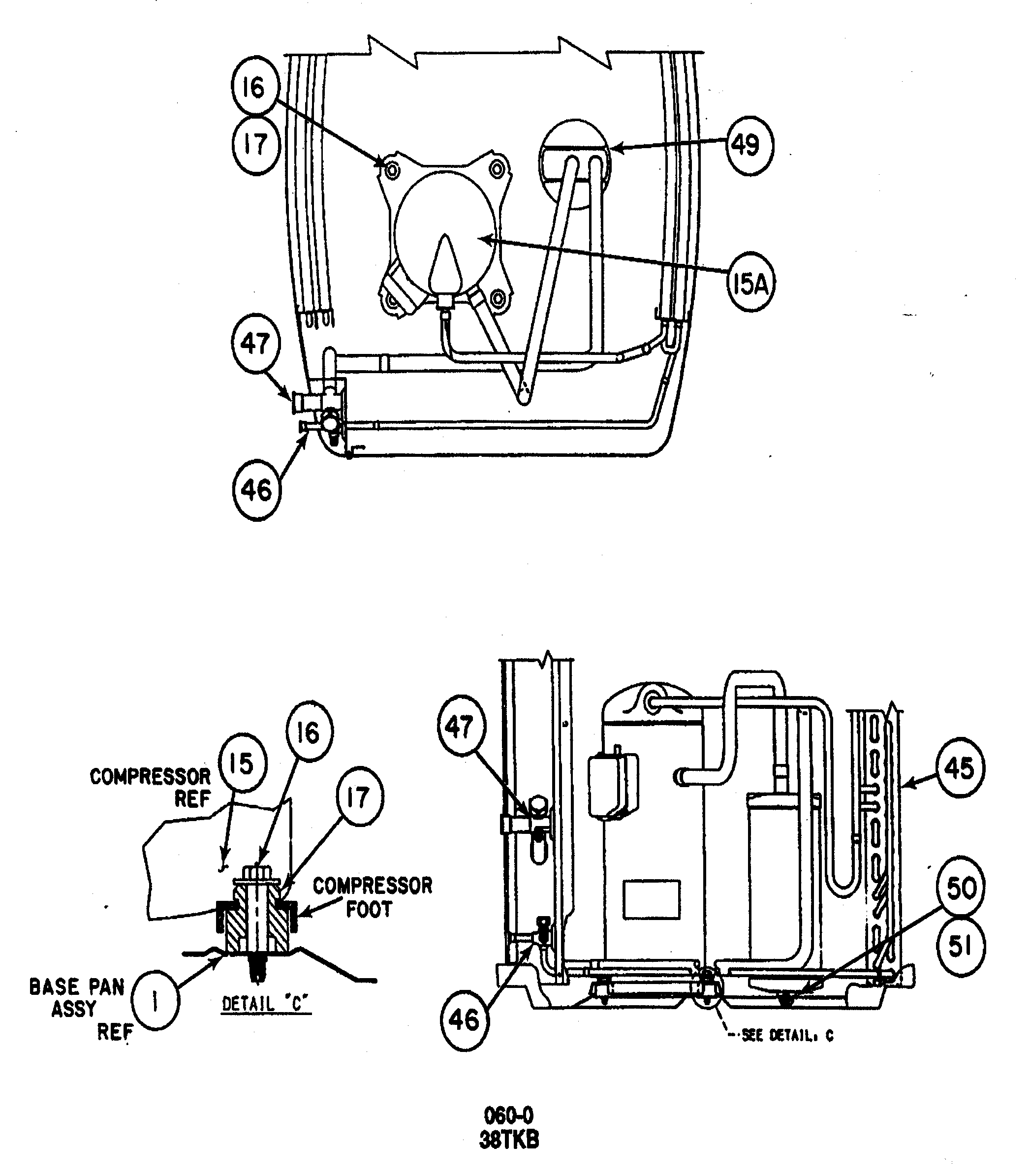

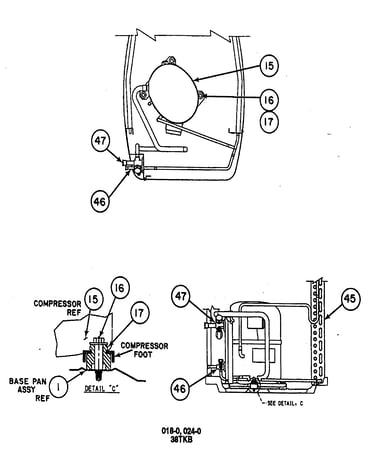

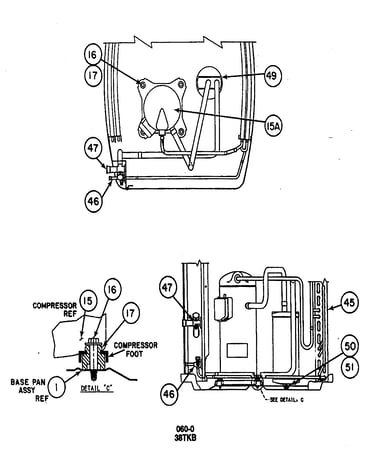

Compressor/condenser coil 1 diagram

Grommet

Part #P041-5103

$12.60
In Stock
Carrier Start Assist Ptc Kit KAACS0201PTC
#NI

Inlet grille/service panel diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

$242.33
In Stock
Valve EC39DM061
#NI

Inlet grille/service panel diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
Central Air Conditioner Capacitor Strap 317739-302
#29

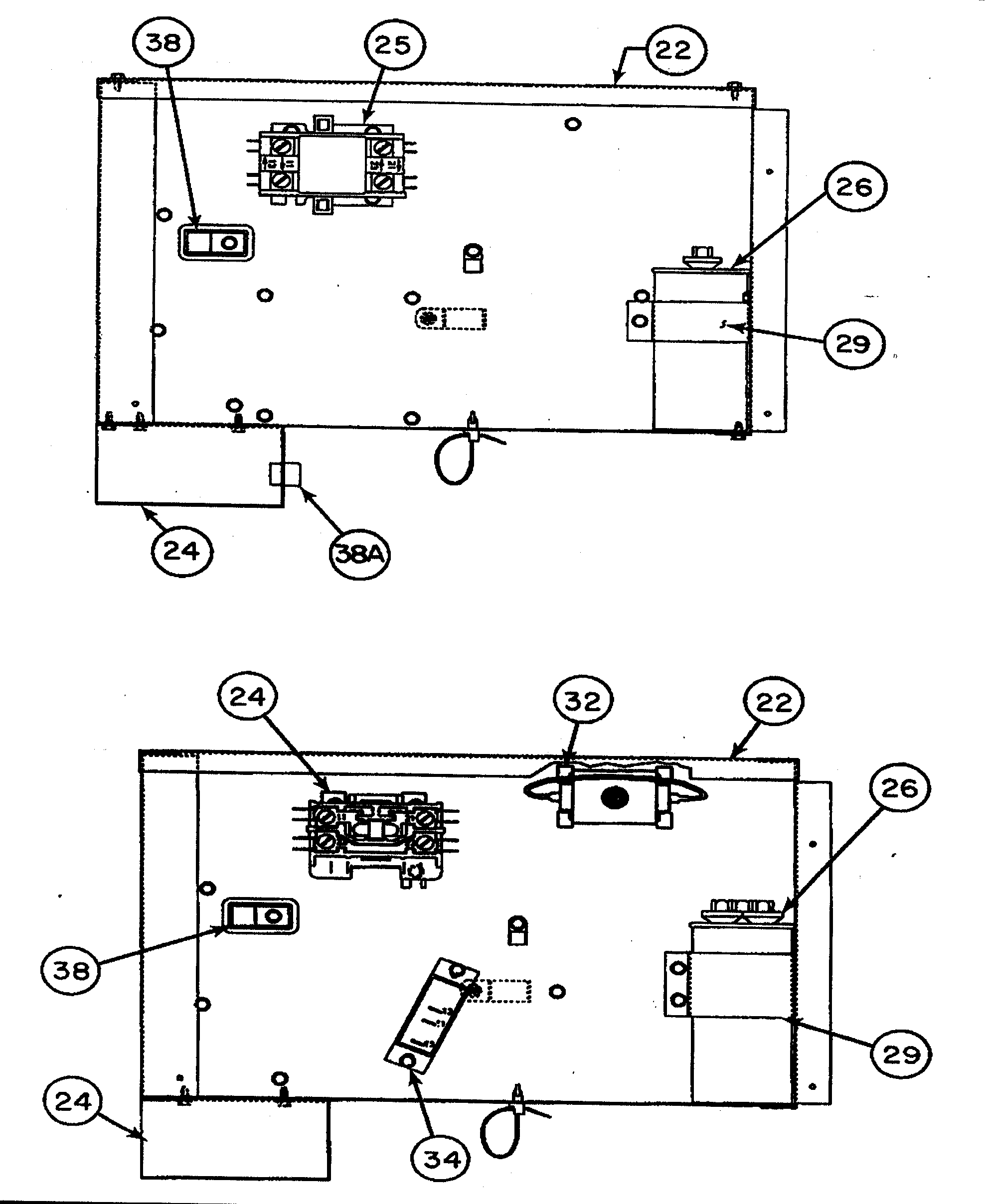

Control box/cover diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock
Central Air Conditioner Accumulator KH71KJ141
#49

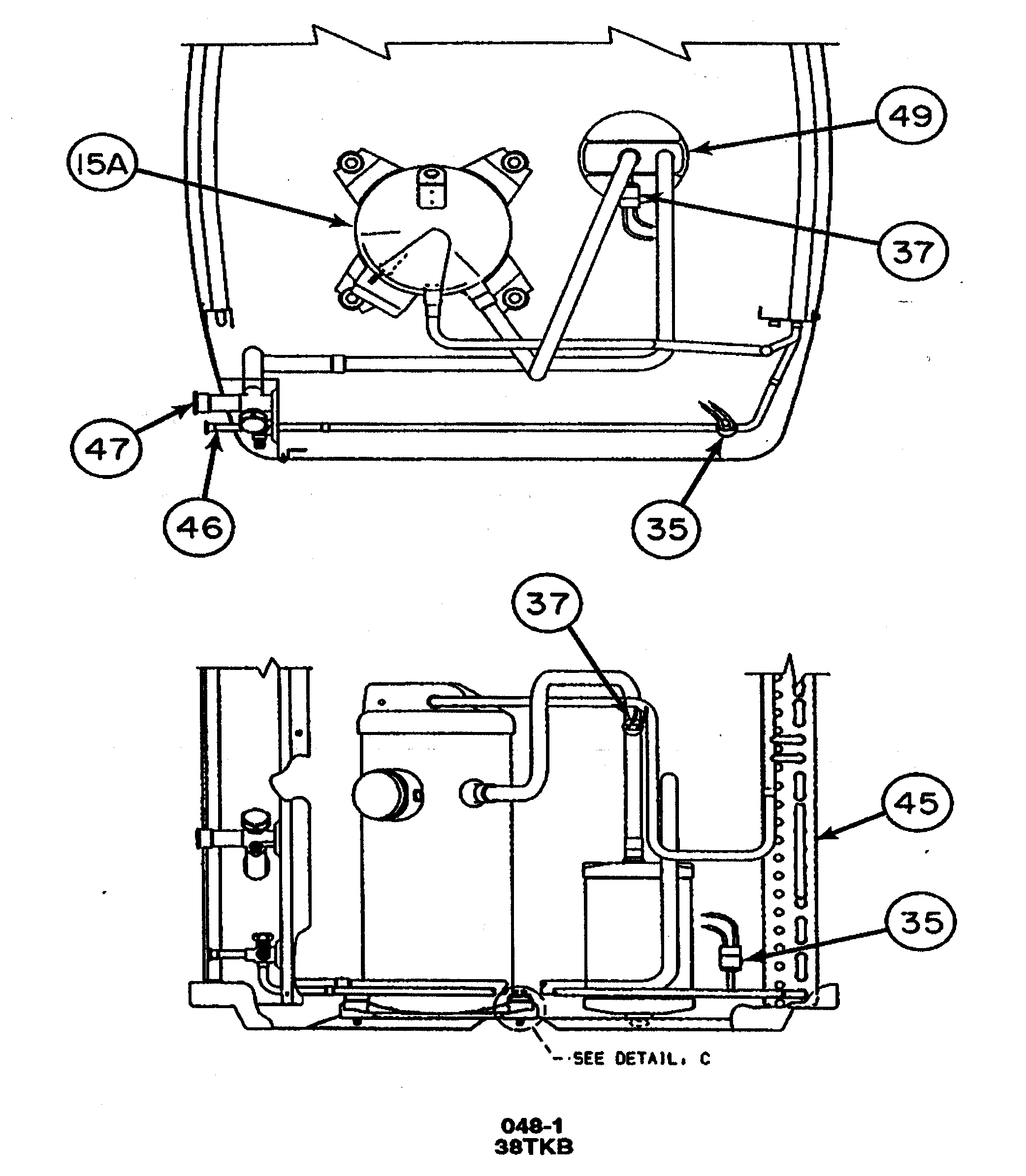

Compressor/condenser coil 2 diagram

Central air conditioner accumulator

Part #KH71KJ141

$175.46
In Stock
Central Air Conditioner Compressor Hard Start Kit KSAHS1501AAA
#NI

Inlet grille/service panel diagram

Central air conditioner compressor hard start kit

Part #KSAHS1501AAA

$291.43 |
$12.00 OFF Phone Price : $303.43
In Stock
Furnace Blower Fan Motor HC40GE230
#NI

Inlet grille/service panel diagram

Furnace blower fan motor

Part #HC40GE230

$881.49 |
$12.00 OFF Phone Price : $893.49
In Stock
Cap,stem 328963-751
#54

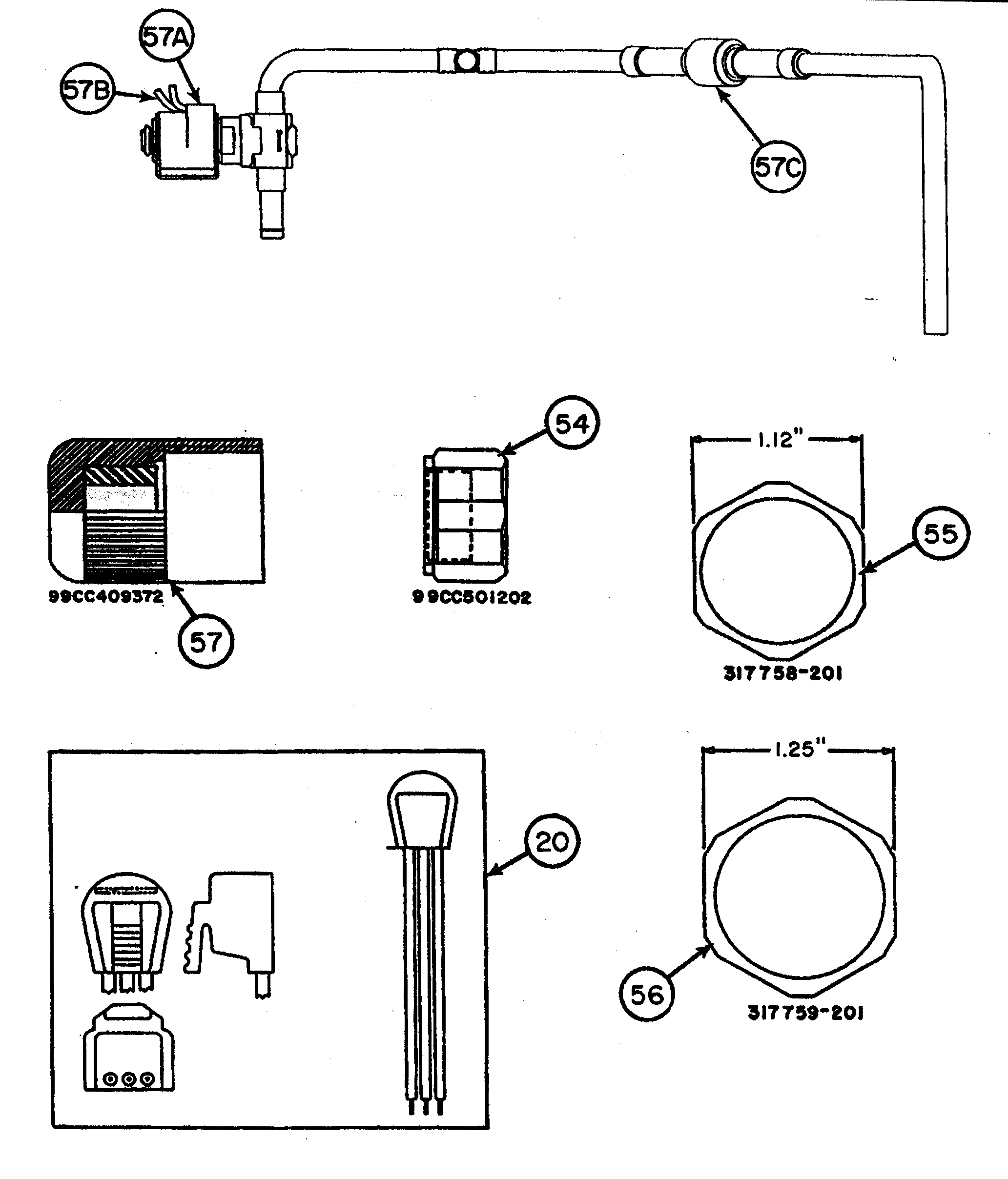

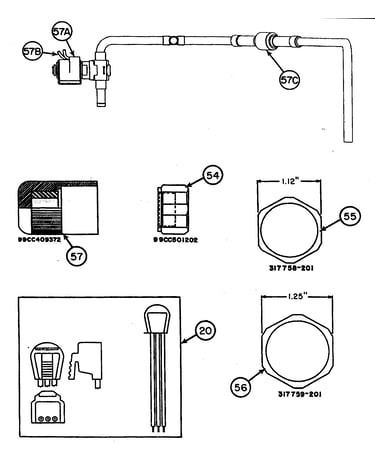

Stem cap/compressor plug diagram

Cap,stem

Part #328963-751

$108.28
In Stock
