Model # XL-FZ158BK Official JVC compact disc with automatic changer

Here are the diagrams and repair parts for Official JVC XL-FZ158BK compact disc with automatic changer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Shaft E408197-001
#37

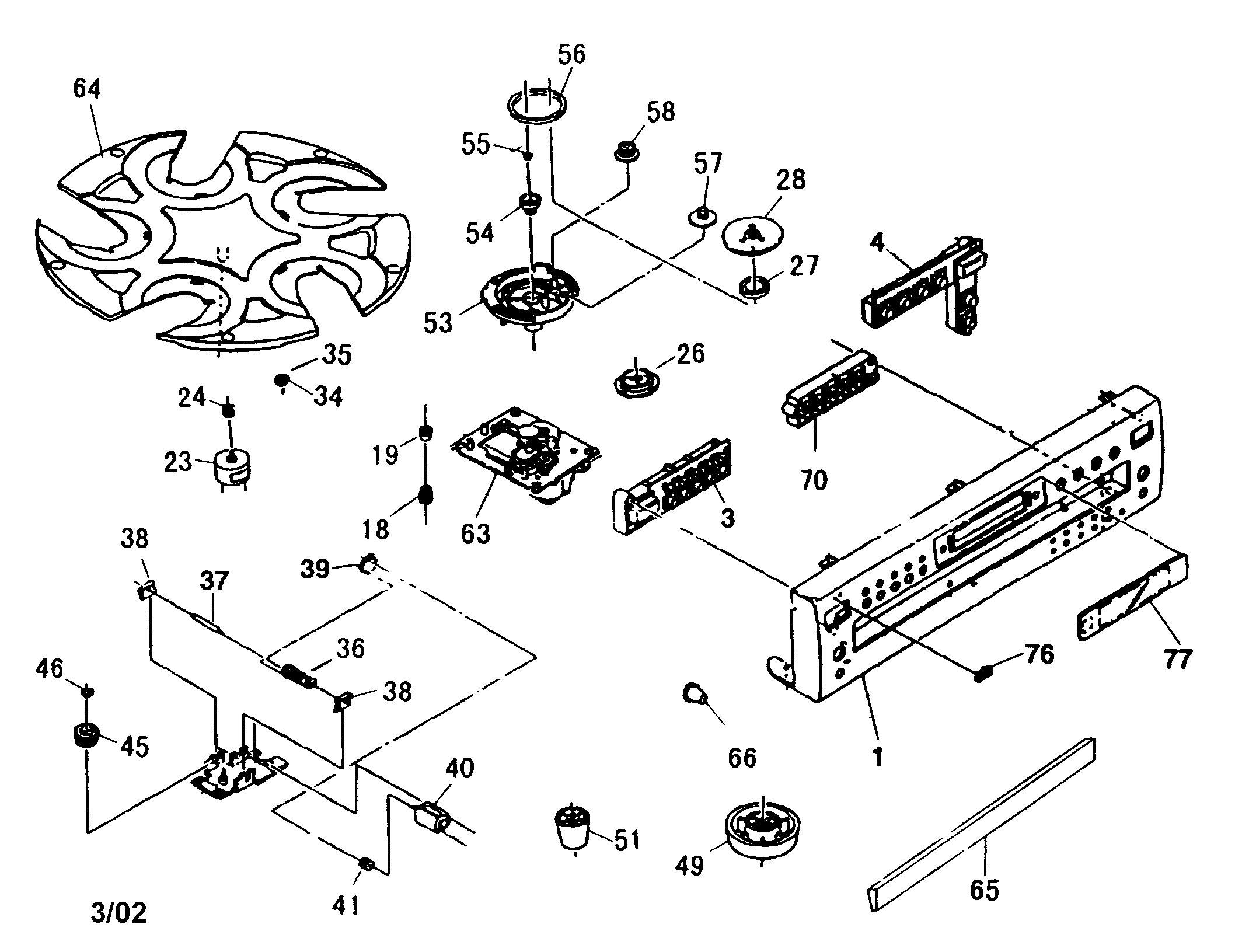

Cabinet parts diagram

Shaft

Part #E408197-001

The manufacturer no longer makes this part, and there's no substitute part

Display ELU0001-179
#NI

Cabinet parts diagram

Display

Part #ELU0001-179

The manufacturer no longer makes this part, and there's no substitute part

Belt E75950-003
#39

Cabinet parts diagram

Belt

Part #E75950-003

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut E72024-001
#55

Cabinet parts diagram

Speed nut

Part #E72024-001

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit BA6898FP-X
#NI

Cabinet parts diagram

Integrated circuit

Part #BA6898FP-X

The manufacturer no longer makes this part, and there's no substitute part

Turn Table EPB309173A
#NI

Cabinet parts diagram

Turn table

Part #EPB309173A

The manufacturer no longer makes this part, and there's no substitute part

P Button LE20111-012A
#3

Cabinet parts diagram

P button

Part #LE20111-012A

The manufacturer no longer makes this part, and there's no substitute part

Magnet VYH7313-003
#27

Cabinet parts diagram

Magnet

Part #VYH7313-003

The manufacturer no longer makes this part, and there's no substitute part

Ir Detect GP1U271X
#NI

Cabinet parts diagram

Ir detect

Part #GP1U271X

The manufacturer no longer makes this part, and there's no substitute part

Button LE30351-001A
#70

Cabinet parts diagram

Button

Part #LE30351-001A

The manufacturer no longer makes this part, and there's no substitute part
