GE
Freestanding Ice Maker

Model # UNC15NPRBII Official GE ice maker

Here are the diagrams and repair parts for Official GE UNC15NPRBII ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Cplg1/4-5/32 WR97X10033
#7000

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock
Main Control Board WR55X38595
#105

Cabinet diagram

Main control board

Part #WR55X38595

$371.00
In Stock
Drain Valve WR87X38941
#51

Machine compartment diagram

Drain valve

Part #WR87X38941

$92.18
In Stock
Motor WR60X38810
#143

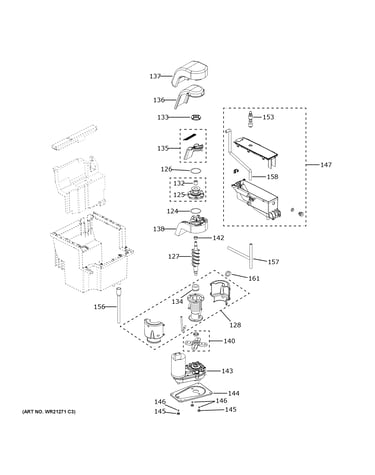

Ice maker diagram

Motor

Part #WR60X38810

$839.68
In Stock
Br .335-1/4 WR97X10076
#7002

Lokring connectors diagram

Br .335-1/4

Part #WR97X10076

$35.09 |
15% OFF Phone Price : $41.09
In Stock
Auger WR29X38608
#127

Ice maker diagram

Auger

Part #WR29X38608

$312.70
In Stock
Adaptor & Seal WR01X43632
#140

Ice maker diagram

Adaptor & seal

Part #WR01X43632

$103.00
In Stock
Evaporator & Housing WR87X43636
#128

Ice maker diagram

Evaporator & housing

Part #WR87X43636

$345.82
In Stock
Compressor WR87X38588
#20

Machine compartment diagram

Compressor

Part #WR87X38588

$318.64
In Stock
90-& Check Valve WR02X42905
#163

Upk4 - pump kit diagram

90-& check valve

Part #WR02X42905

$82.38
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your freestanding ice makers

Choose a symptom to see related ice maker repairs.

View all

Why is my ice maker making noise?

Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…

Read more

Why does the ice in my freestanding ice maker taste bad?

Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…

Read more

Why does my freestanding ice maker leak water?

Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…

Read more

Why won't my freestanding ice maker cut the ice into cubes?

Main causes: wiring failure, broken cutting grid, faulty electronic control board…

Read more

Why does my freestanding ice maker run but not make ice?

Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…

Read more

Why isn't my freestanding ice maker making much ice?

Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…

Read more

Why does the ice melt together in my freestanding ice maker?

Main causes: bad bin thermistor, condenser fan failure, faulty control board…

Read more

Why won't my freestanding ice maker run?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…

Read more
