Kenmore
Water Pump

Model # 3902575 Official Kenmore deluxe shallow well jet pump

Here are the diagrams and repair parts for Official Kenmore 3902575 deluxe shallow well jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Slinger N69-1
#2

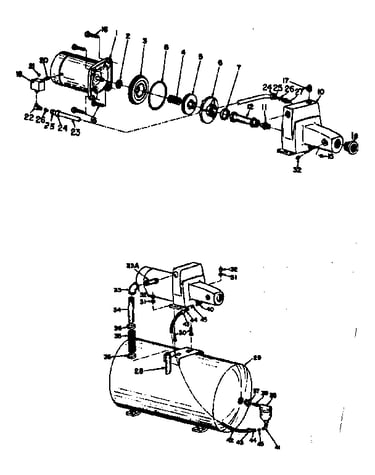

Replacement parts diagram

Slinger

Part #N69-1

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces N69-1. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Rotary Seal U9-6
#4

Replacement parts diagram

Rotary seal

Part #U9-6

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U9-6. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Pump Nozzle N34P-17
#11

Replacement parts diagram

Pump nozzle

Part #N34P-17

$28.33
In Stock
Elbow U11-86
Elbow

Part #U11-86

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U11-86. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order
Complete Valve N212-10P
#18

Replacement parts diagram

Complete valve

Part #N212-10P

Replaced by #N212-12P

?
Manufacturer substitution
This part replaces N212-10P. Substitute parts can look different from the original.
$118.69 |
9% OFF Phone Price : $130.69
In Stock
Pump Diffuser L1-25P
#6

Replacement parts diagram

Pump diffuser

Part #L1-25P

This item is not returnable
$71.80
In Stock
Pump Impeller J105-42P
#5B

Replacement parts diagram

Pump impeller

Part #J105-42P

$125.69 |
9% OFF Phone Price : $137.69
In Stock
Pump Shaft Seal N20-34
#7

Replacement parts diagram

Pump shaft seal

Part #N20-34

This item is not returnable
$25.69
In Stock
Seal Plate N3-9
#3

Replacement parts diagram

Seal plate

Part #N3-9

$123.70
In Stock
Pump Impeller J105-40P
#5A

Replacement parts diagram

Pump impeller

Part #J105-40P

$149.07 |
7% OFF Phone Price : $161.07
In Stock
