Model # LEM085H01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE LEM085H01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

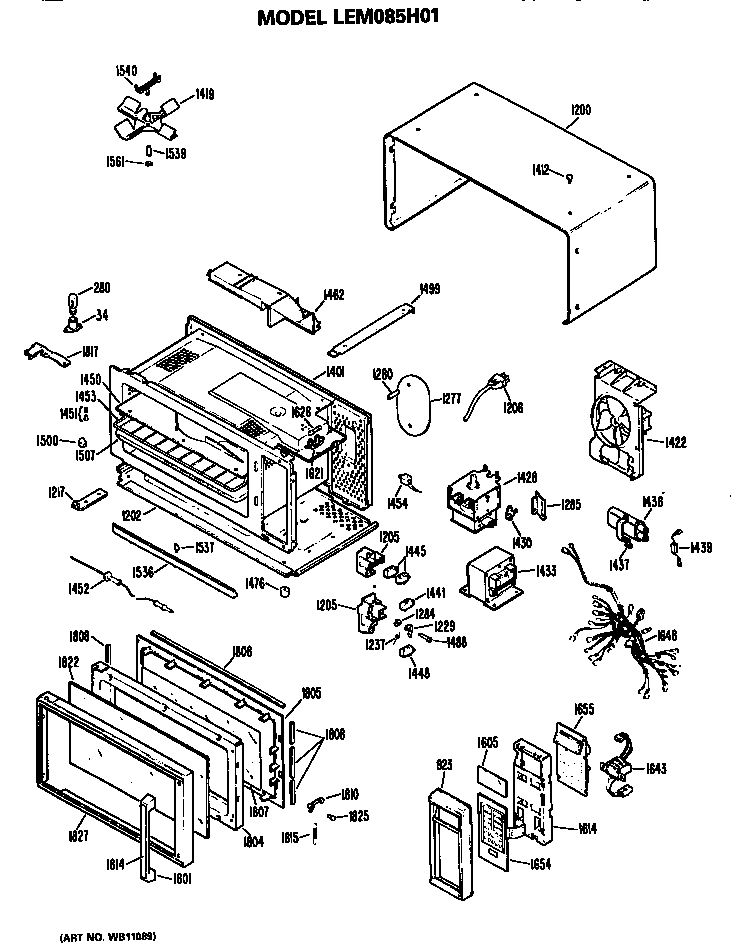

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Switch WB24X429

#1441

All parts diagram

Switch

Part #WB24X429

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X429. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X364

#1439

All parts diagram

Diode

Part #WB27X364

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X364. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X5334

#1428

All parts diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Control P WB7X1536

#923

All parts diagram

Control p

Part #WB7X1536

The manufacturer no longer makes this part, and there's no substitute part

Outer Case WB56X1965

#1200

All parts diagram

Outer case

Part #WB56X1965

The manufacturer no longer makes this part, and there's no substitute part

Bottom WB27X07

#NA

All parts diagram

Bottom

Part #WB27X07

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly WB2X4883

#1419

All parts diagram

Blade assembly

Part #WB2X4883

The manufacturer no longer makes this part, and there's no substitute part

Ivory Hol WB2X4511

#1500

All parts diagram

Ivory hol

Part #WB2X4511

The manufacturer no longer makes this part, and there's no substitute part

Cap WB2X9340

#1202

All parts diagram

Cap

Part #WB2X9340

The manufacturer no longer makes this part, and there's no substitute part

Ferrite-2 WB2X4896

#1808

All parts diagram

Ferrite-2

Part #WB2X4896

The manufacturer no longer makes this part, and there's no substitute part
