Model # AM11C4EVA Official Gibson room air conditioner - lg34088200

Here are the diagrams and repair parts for Official Gibson AM11C4EVA room air conditioner - lg34088200, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

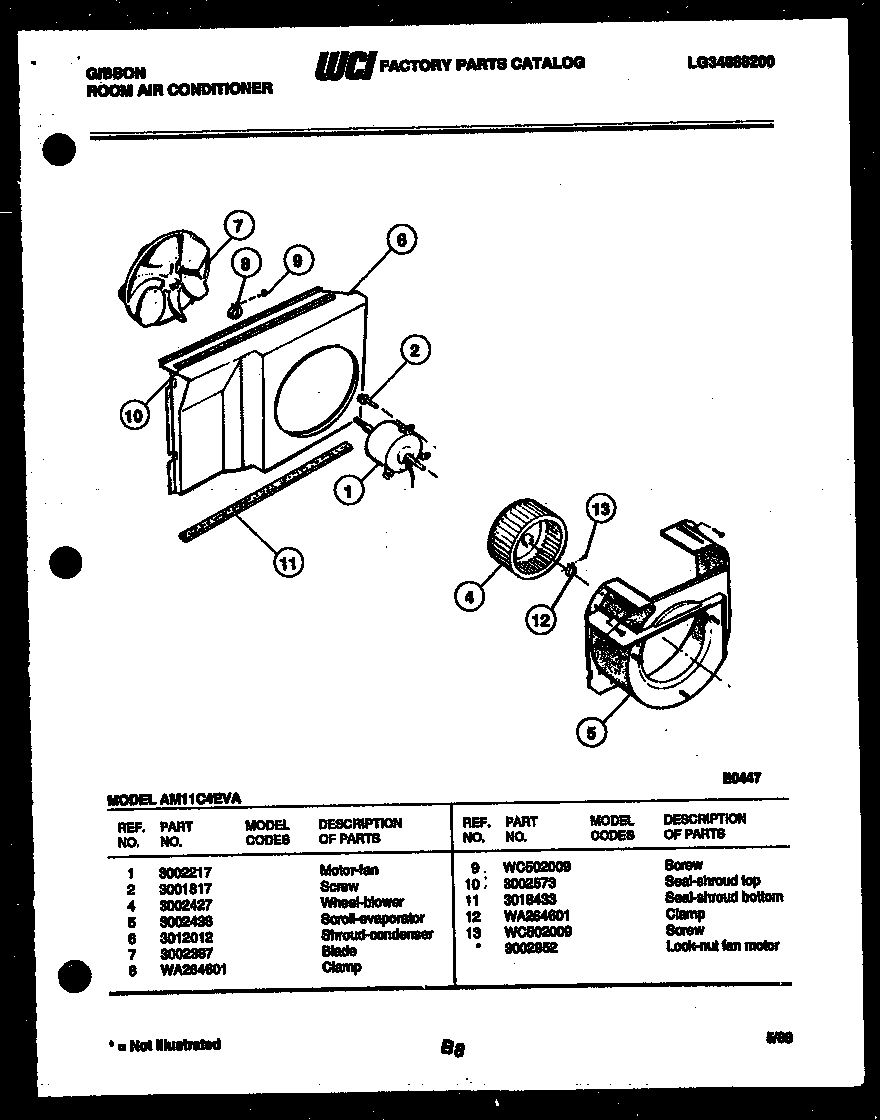

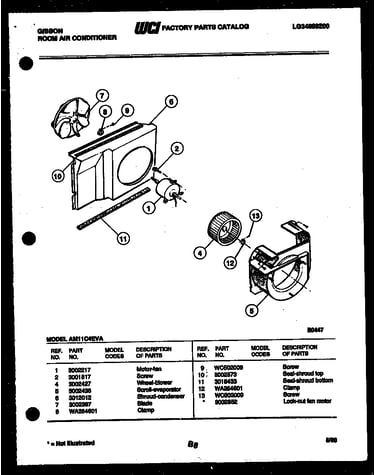

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Strainer 3017512
#2

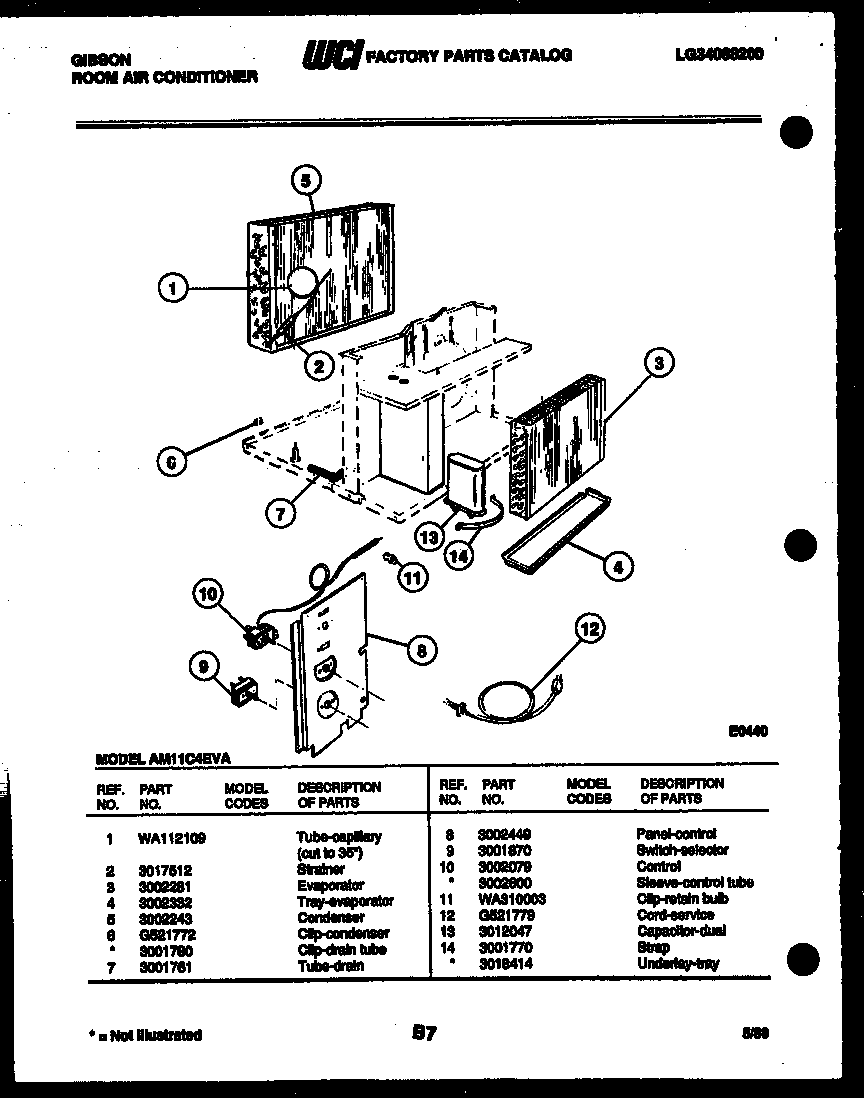

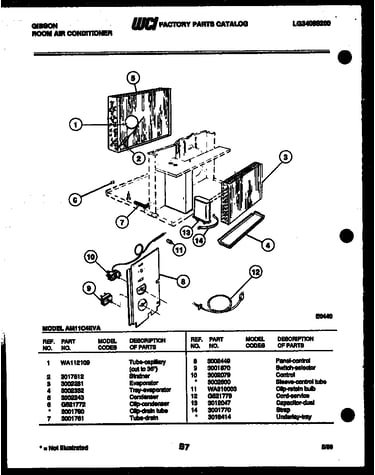

Electrical parts diagram

Strainer

Part #3017512

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3017512. Substitute parts can look different from the original.
$212.62
In Stock
Gasket 3002603

#NI

All parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Protector 3002136
#5

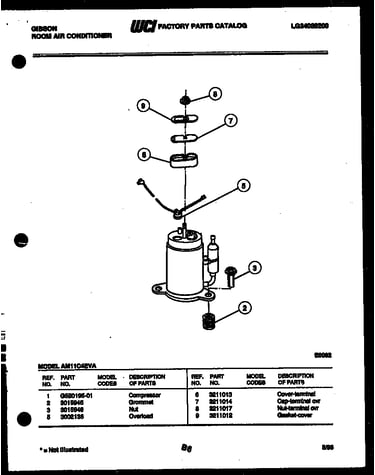

Compressor parts diagram

Protector

Part #3002136

Replaced by #5303002136

?
Manufacturer substitution
This part replaces 3002136. Substitute parts can look different from the original.
$43.99
In Stock
Lock Nut 3002952

#NI

All parts diagram

Lock nut

Part #3002952

Replaced by #5303002952

?
Manufacturer substitution
This part replaces 3002952. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Compressor G520195-11
#1

Compressor parts diagram

Compressor

Part #G520195-11

The manufacturer no longer makes this part, and there's no substitute part

Tube 3001761
#7

Electrical parts diagram

Tube

Part #3001761

The manufacturer no longer makes this part, and there's no substitute part

Bracket G500741
#7

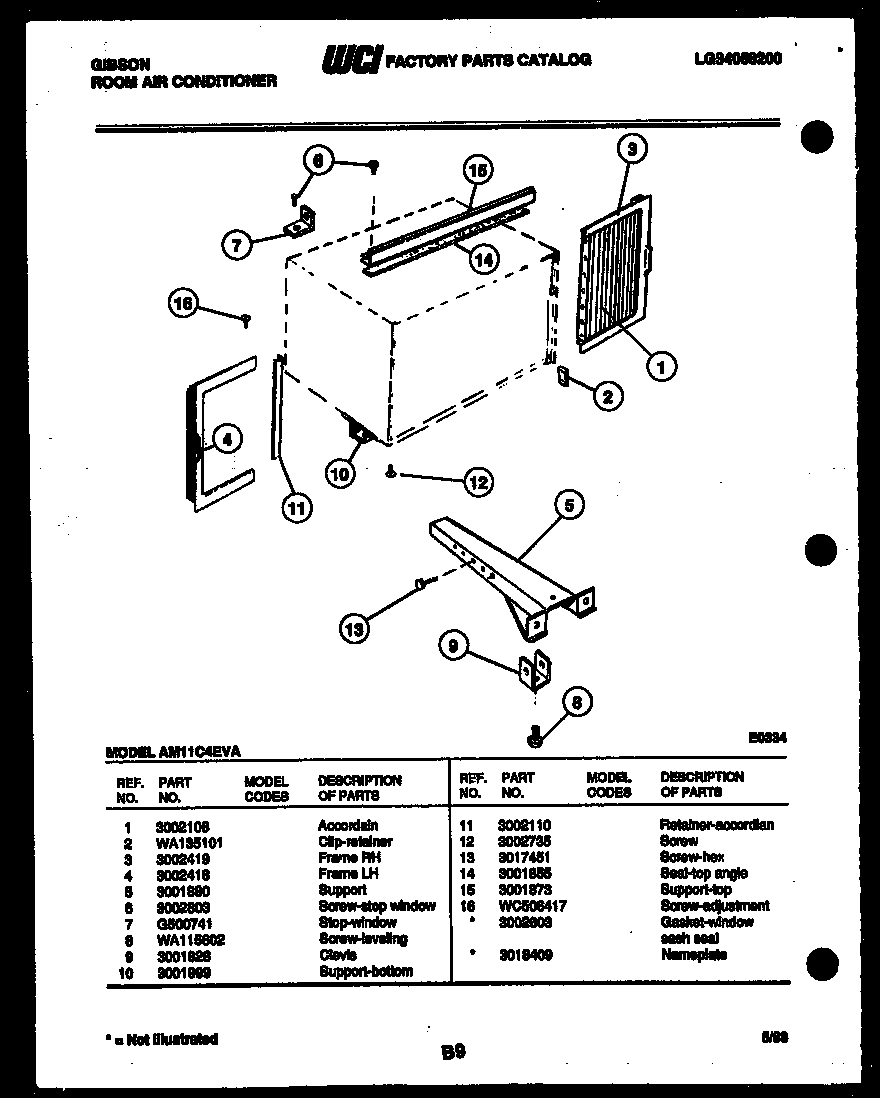

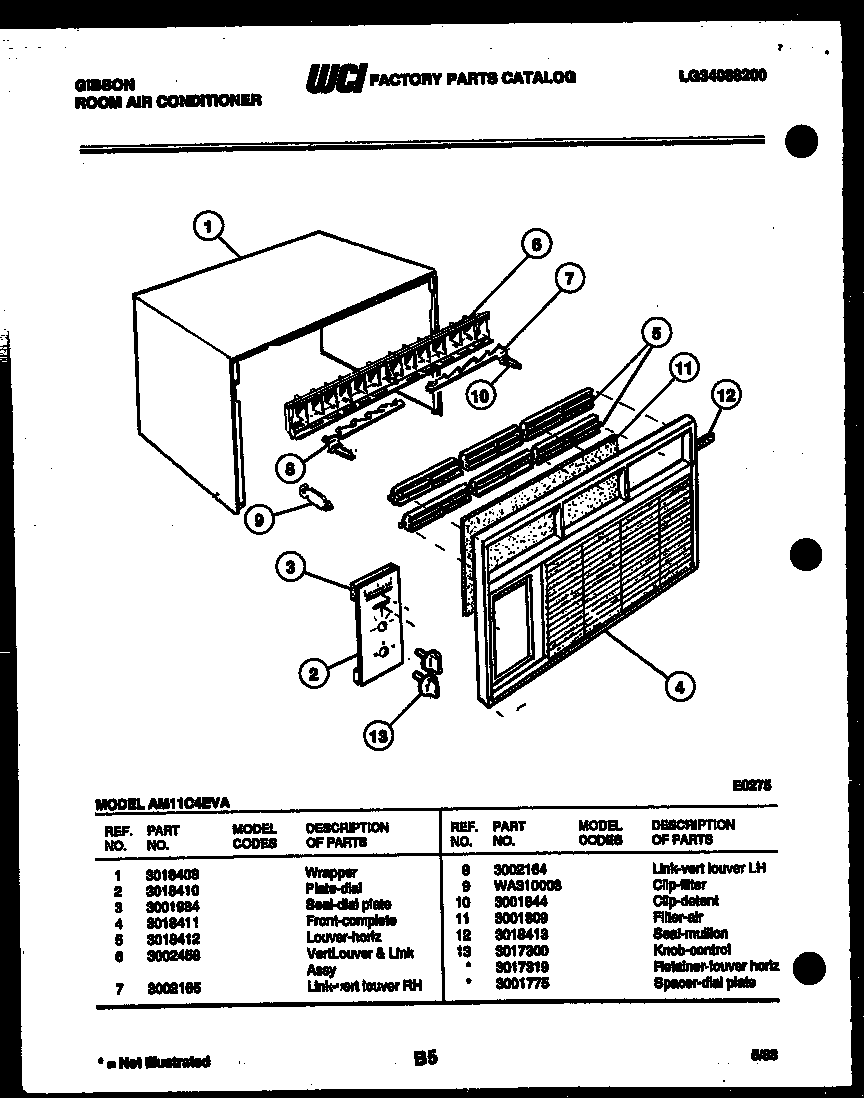

Cabinet and installation parts diagram

Bracket

Part #G500741

The manufacturer no longer makes this part, and there's no substitute part

Retainer 3002110
#11

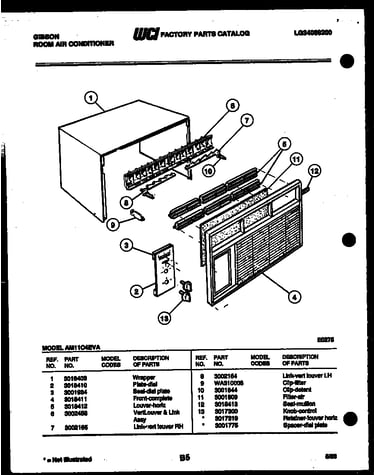

Cabinet and installation parts diagram

Retainer

Part #3002110

The manufacturer no longer makes this part, and there's no substitute part

Support 3001828
#9

Cabinet and installation parts diagram

Support

Part #3001828

The manufacturer no longer makes this part, and there's no substitute part

Support 3001880
#5

Cabinet and installation parts diagram

Support

Part #3001880

The manufacturer no longer makes this part, and there's no substitute part
