Model # R-20EC Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-20EC microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

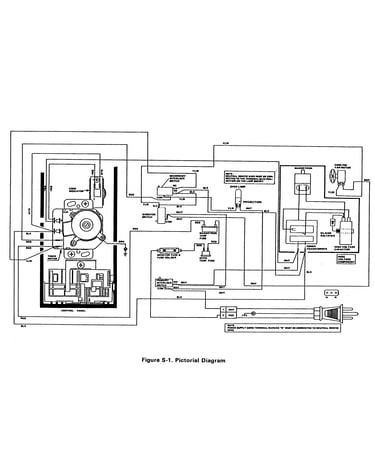

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Switch QSW-MA020WRE0
#1-7

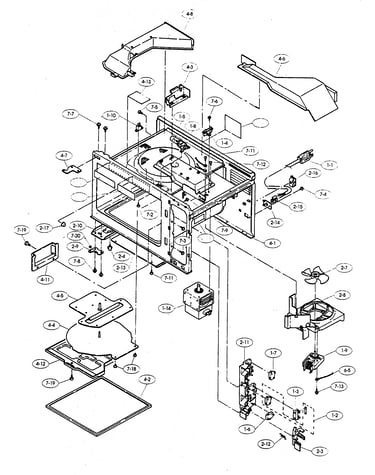

Cavity assy diagram

Switch

Part #QSW-MA020WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse QFS-T0018MRE0
#1-4

Cavity assy diagram

Fuse

Part #QFS-T0018MRE0

The manufacturer no longer makes this part, and there's no substitute part

Button JBTN-A365WRF0
#3-4

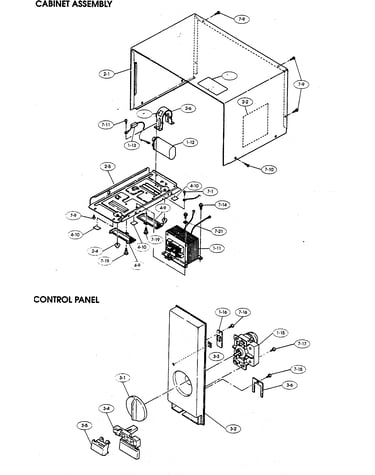

Cabinet assy/control panel diagram

Button

Part #JBTN-A365WRF0

The manufacturer no longer makes this part, and there's no substitute part

Filter Lamp PFILWA016WRP0
#4-13

Cavity assy diagram

Filter lamp

Part #PFILWA016WRP0

The manufacturer no longer makes this part, and there's no substitute part

Temperature Fuse QFS-TA013WRE0
#1-10

Cavity assy diagram

Temperature fuse

Part #QFS-TA013WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA011WRE0
#1-3

Cavity assy diagram

Fuse holder

Part #QFSHDA011WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse FFS-BA012/KIT
#1-2

Cavity assy diagram

Fuse

Part #FFS-BA012/KIT

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA046WRE0
#5-3

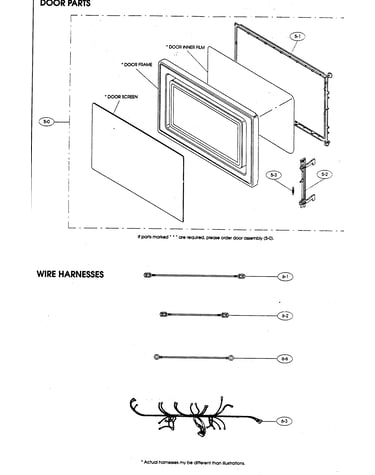

Door/wiring harnesses diagram

Spring

Part #MSPRTA046WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPT0003YBE0
#1-5

Cavity assy diagram

Microwave lamp

Part #RLMPT0003YBE0

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer RTRN-A159WRE0
#1-11

Cabinet assy/control panel diagram

Power transformer

Part #RTRN-A159WRE0

The manufacturer no longer makes this part, and there's no substitute part
