Poulan
Gas Chainsaw

Model # 1975 TYPE 7 Official Poulan chainsaw

Here are the diagrams and repair parts for Official Poulan 1975-TYPE-7 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#6

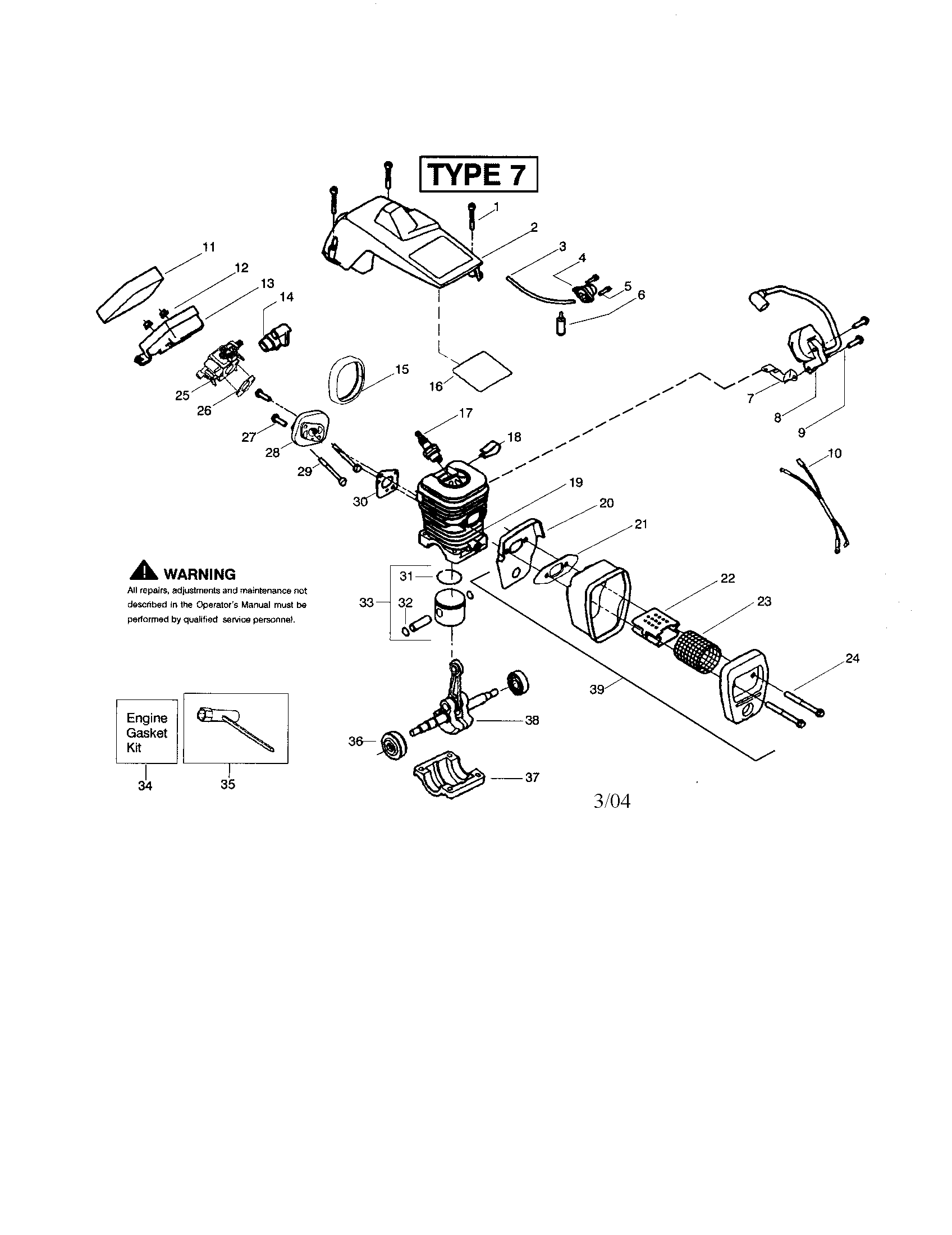

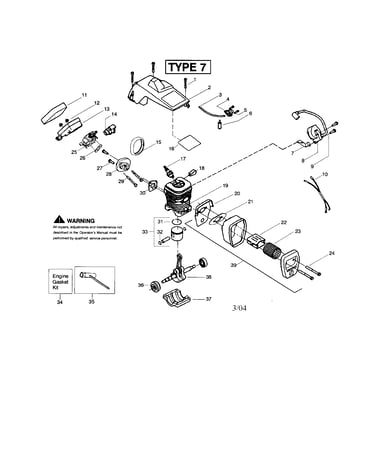

Cylinder/shield-cylinder diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$9.20 |
10% OFF Phone Price : $10.20
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#3

Cylinder/shield-cylinder diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#5

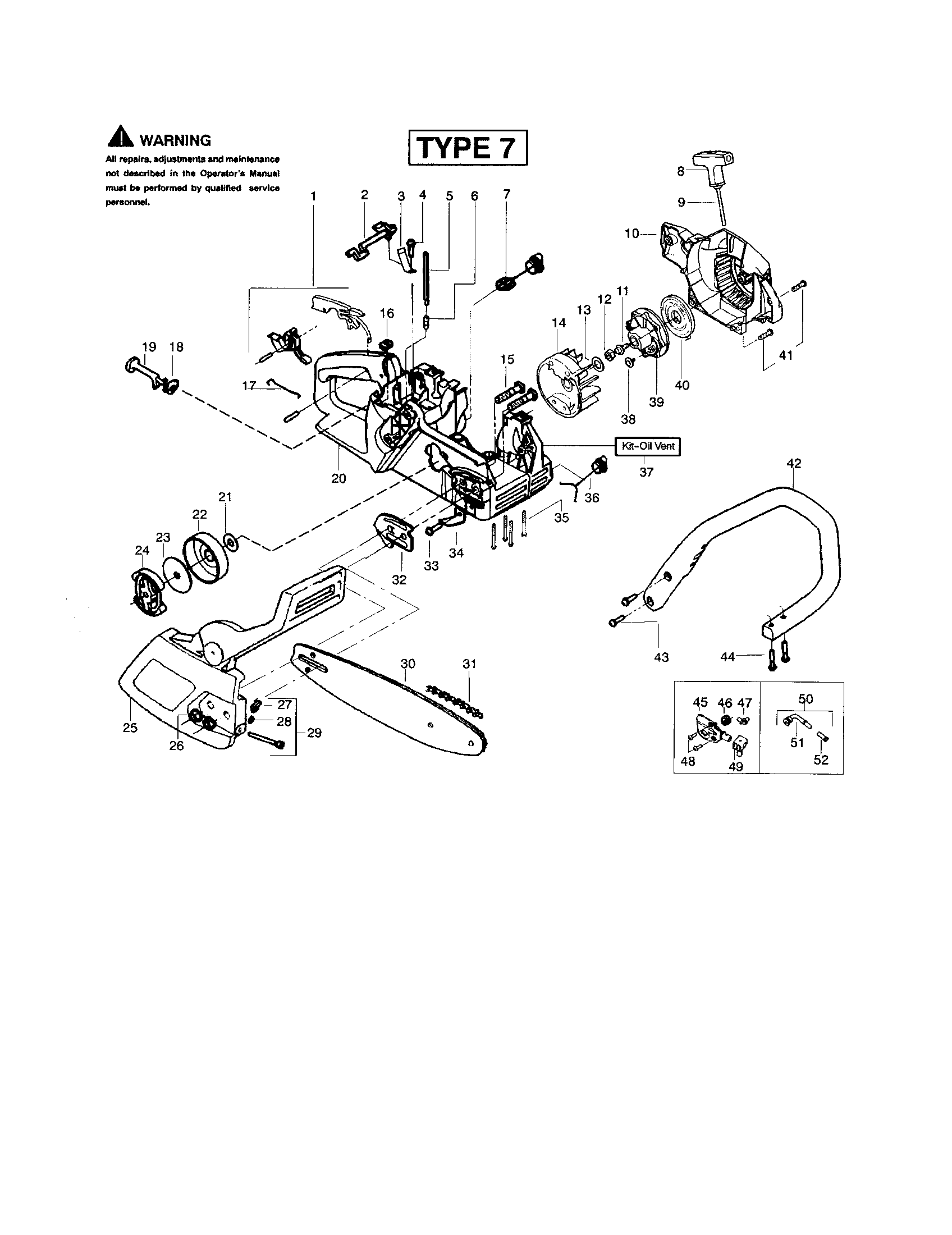

Chain/bar/fan housing diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces 5300377-93, 530-037793) 530037793
#11

Cylinder/shield-cylinder diagram

Lawn & garden equipment engine air filter (replaces 5300377-93, 530-037793)

Part #530037793

BEST SELLER
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Fuel Tank Cap 530047192
#7

Chain/bar/fan housing diagram

Fuel tank cap

Part #530047192

Replaced by #580940901

?
Manufacturer substitution
This part replaces 530047192. Substitute parts can look different from the original.
BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#6

Chain/bar/fan housing diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Husqvarna Chainsaw Bar Adjuster Screw (replaces 530-069611) 530069611
#29

Chain/bar/fan housing diagram

Husqvarna chainsaw bar adjuster screw (replaces 530-069611)

Part #530069611

This item is not returnable
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Piston Ring 530038729
#31

Cylinder/shield-cylinder diagram

Piston ring

Part #530038729

Replaced by #545160401

?
Manufacturer substitution
This part replaces 530038729. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Chainsaw Engine Cylinder Cover Screw (replaces 530016102) 530016153
#1

Cylinder/shield-cylinder diagram

Chainsaw engine cylinder cover screw (replaces 530016102)

Part #530016153

This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Chainsaw Clutch (replaces 5300149-49, 530-014949, 530094188) 530014949
#24

Chain/bar/fan housing diagram

Chainsaw clutch (replaces 5300149-49, 530-014949, 530094188)

Part #530014949

This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
