Model # YISR309JT6AA Official GE washer

Here are the diagrams and repair parts for Official GE YISR309JT6AA washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

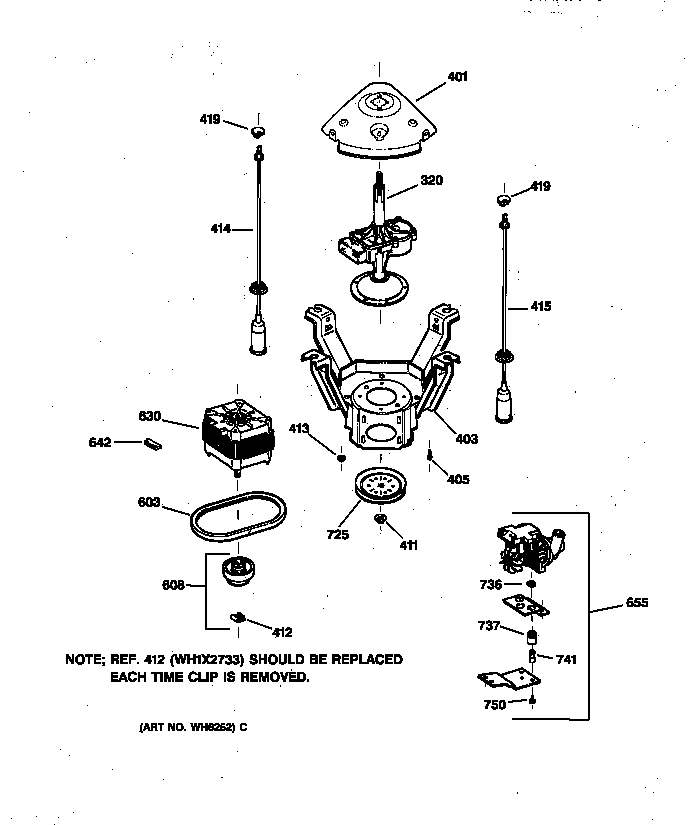

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Washer Hub Nut (replaces Wh02x1193) WH2X1193
#325

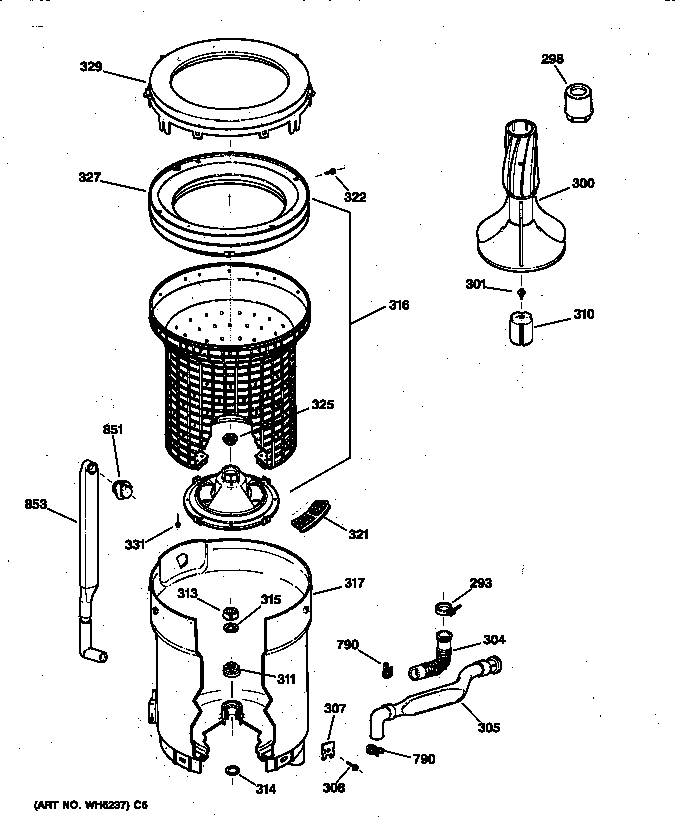

Tub, basket & agitator diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH2X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH2X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH2X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Seal WH2X1196
#311

Tub, basket & agitator diagram

Seal

Part #WH2X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Washer Tub Mounting Hub Washer (replaces Wh02x1199) WH2X1199
#315

Tub, basket & agitator diagram

Washer tub mounting hub washer (replaces wh02x1199)

Part #WH2X1199

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Agitator A WH43X142
#300

Tub, basket & agitator diagram

Agitator a

Part #WH43X142

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X142. Substitute parts can look different from the original.
BEST SELLER
$62.69 |
9% OFF Phone Price : $68.69
In Stock
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

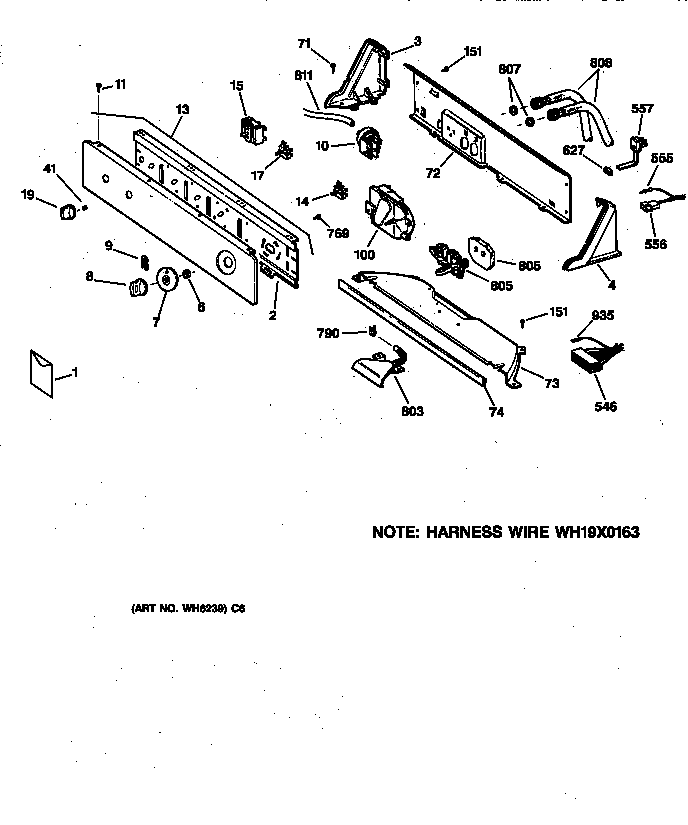

Controls & backsplash diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Hose Dr Ex WH41X367
#825

Cabinet, cover & front panel diagram

Hose dr ex

Part #WH41X367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X367. Substitute parts can look different from the original.
BEST SELLER
$22.74 |
21% OFF Phone Price : $28.74
In Stock
Coupl Agit WH43X137
#310

Tub, basket & agitator diagram

Coupl agit

Part #WH43X137

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH43X137. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Screw WH2X1200
#301

Tub, basket & agitator diagram

Screw

Part #WH2X1200

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH2X1200. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Washer Water-level Pressure Switch Hose (replaces Wh41x0365) WH41X365
#811

Controls & backsplash diagram

Washer water-level pressure switch hose (replaces wh41x0365)

Part #WH41X365

$7.88 |
11% OFF Phone Price : $8.88
In Stock
