Frigidaire
Wall Oven/Microwave Combo

Model # GCWM2767ADD Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire GCWM2767ADD wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

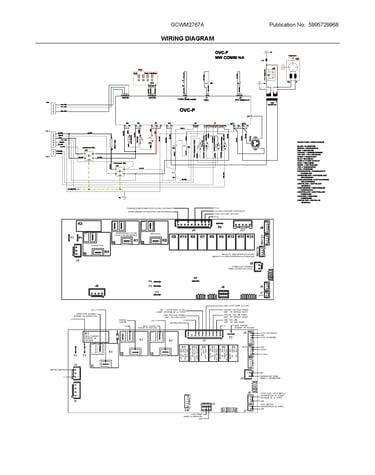

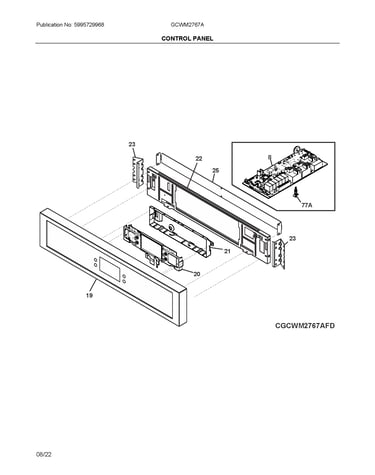

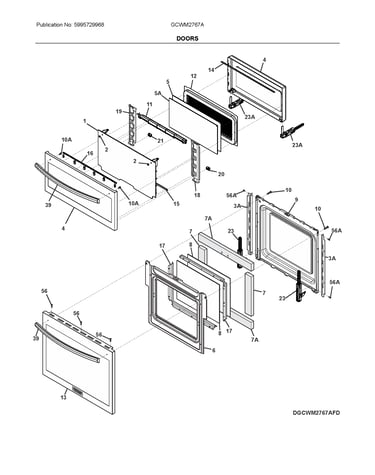

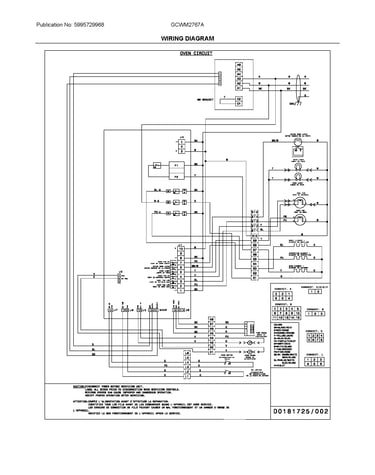

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Range Oven Temperature Sensor (replaces 5304504897) 5304525427
#37

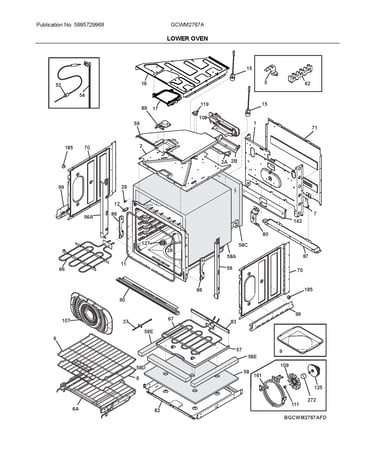

Lower oven diagram

Range oven temperature sensor (replaces 5304504897)

Part #5304525427

BEST SELLER
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Microwave Fuse And Holder 318647300
#44

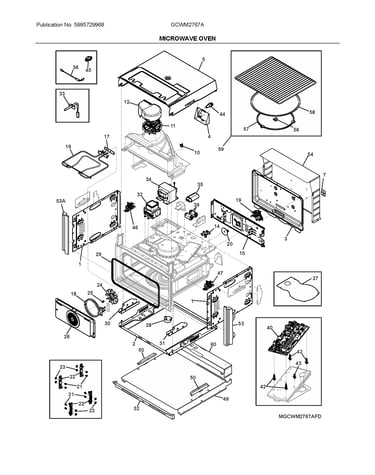

Microwave oven diagram

Wall oven microwave fuse and holder

Part #318647300

BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Wall Oven Microwave Electronic Control Board A18493801
#40

Microwave oven diagram

Wall oven microwave electronic control board

Part #A18493801

BEST SELLER
This item is not returnable
$232.35
In Stock
Interlock L A16919201
#46

Microwave oven diagram

Interlock l

Part #A16919201

Replaced by #A23242801

?
Manufacturer substitution
This part replaces A16919201. Substitute parts can look different from the original.
BEST SELLER
$91.62
In Stock
Interlock R A16919301
#47

Microwave oven diagram

Interlock r

Part #A16919301

Replaced by #A23243301

?
Manufacturer substitution
This part replaces A16919301. Substitute parts can look different from the original.
BEST SELLER
$84.91
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Door Light Switch 318394802
#12

Lower oven diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Thermostat A01802605
#10

Microwave oven diagram

Thermostat

Part #A01802605

$25.17
In Stock
