Model # 417800 Official Kenmore drawer unit

Here are the diagrams and repair parts for Official Kenmore 417800 drawer unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Housing 196194
#4A

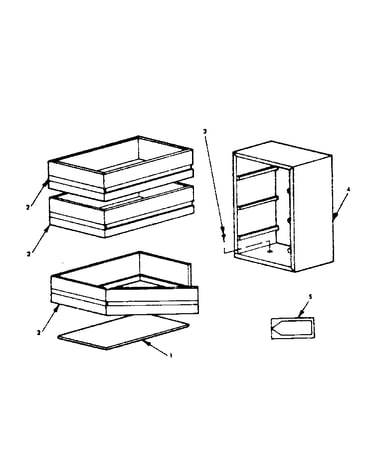

Unit parts diagram

Housing

Part #196194

The manufacturer no longer makes this part, and there's no substitute part

Drawer Frame 196198
#2

Unit parts diagram

Drawer frame

Part #196198

The manufacturer no longer makes this part, and there's no substitute part

Hardware Kit 249049

#NI

All parts diagram

Hardware kit

Part #249049

The manufacturer no longer makes this part, and there's no substitute part

Bottom 172024
#1

Unit parts diagram

Bottom

Part #172024

The manufacturer no longer makes this part, and there's no substitute part

Adjustable Shelf N/P
#4

Unit parts diagram

Adjustable shelf

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Housing 196197
#4B

Unit parts diagram

Housing

Part #196197

The manufacturer no longer makes this part, and there's no substitute part

Glue 936127
#5

Unit parts diagram

Glue

Part #936127

The manufacturer no longer makes this part, and there's no substitute part

Screw 131600
#3

Unit parts diagram

Screw

Part #131600

The manufacturer no longer makes this part, and there's no substitute part

Parts List F642-12484

#NI

All parts diagram

Parts list

Part #F642-12484

The manufacturer no longer makes this part, and there's no substitute part
