Model # D-822K Official Sony cd player

Here are the diagrams and repair parts for Official Sony D-822K cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Sony Bracket Lowe 494760501
#8

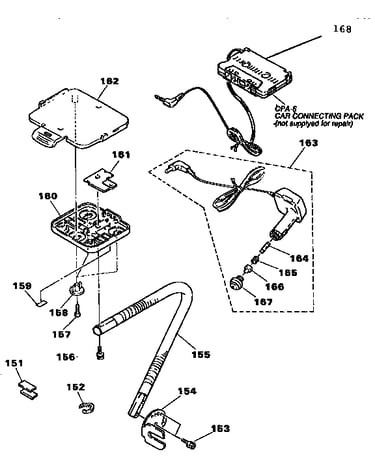

Car mount section diagram

Sony bracket lowe

Part #494760501

The manufacturer no longer makes this part, and there's no substitute part

Sony Bolt Hex 4.0 768332307
#3

Car mount section diagram

Sony bolt hex 4.0

Part #768332307

The manufacturer no longer makes this part, and there's no substitute part

Sony Compression Spring 495942501
#17

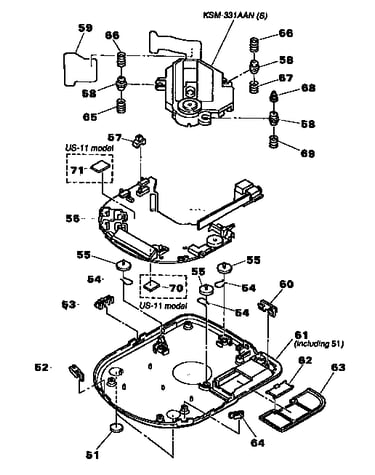

Cabinet section 2 diagram

Sony compression spring

Part #495942501

The manufacturer no longer makes this part, and there's no substitute part

Sony Knob 495943401
#7

Cabinet section 2 diagram

Sony knob

Part #495943401

The manufacturer no longer makes this part, and there's no substitute part

Sony Caution Label 370303421
#6

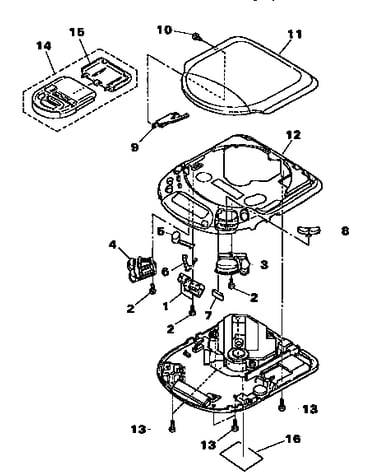

Cabinet section 1 diagram

Sony caution label

Part #370303421

The manufacturer no longer makes this part, and there's no substitute part

Sony Spring 495942511
#15

Cabinet section 2 diagram

Sony spring

Part #495942511

The manufacturer no longer makes this part, and there's no substitute part

Sony Screw +ps 4x 768266509
#6

Car mount section diagram

Sony screw +ps 4x

Part #768266509

The manufacturer no longer makes this part, and there's no substitute part

Sony Capacitor 495025901
#17

Car mount section diagram

Sony capacitor

Part #495025901

The manufacturer no longer makes this part, and there's no substitute part

Sony Cord Clamp 212053401
#2

Car mount section diagram

Sony cord clamp

Part #212053401

The manufacturer no longer makes this part, and there's no substitute part

Sony Insulator 495941201
#8

Cabinet section 2 diagram

Sony insulator

Part #495941201

The manufacturer no longer makes this part, and there's no substitute part
