Model # 91762809 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 91762809 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

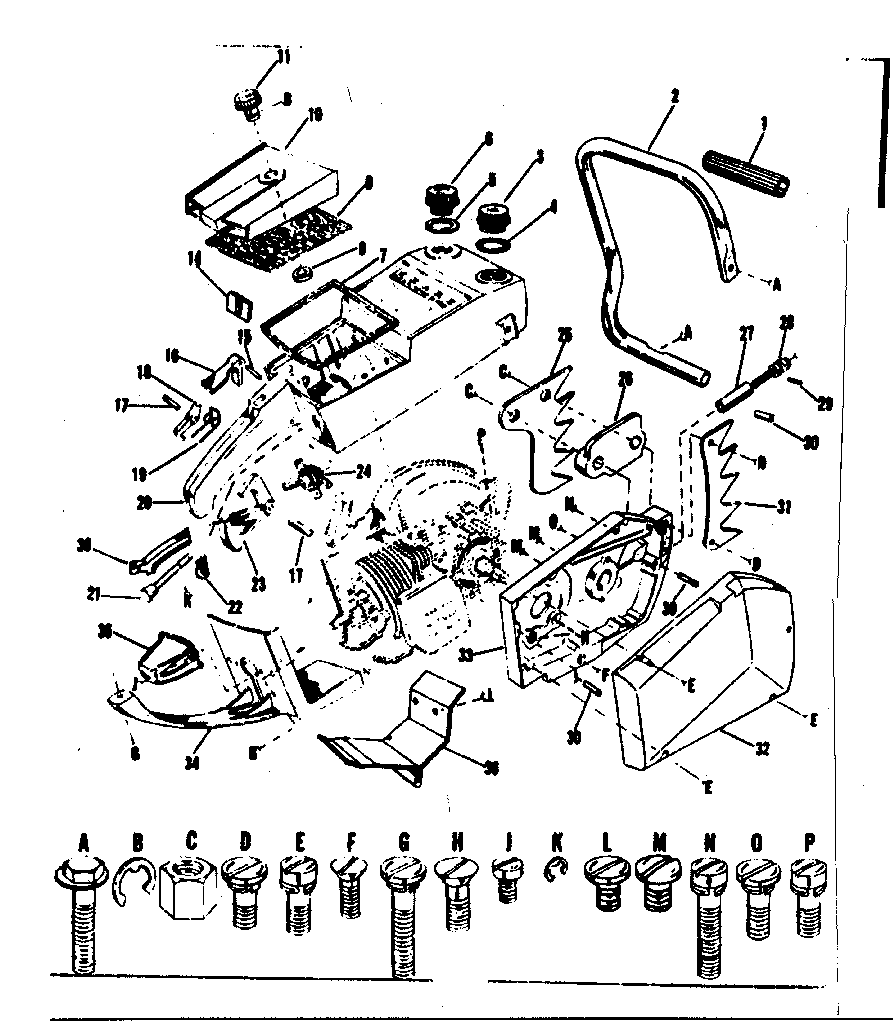

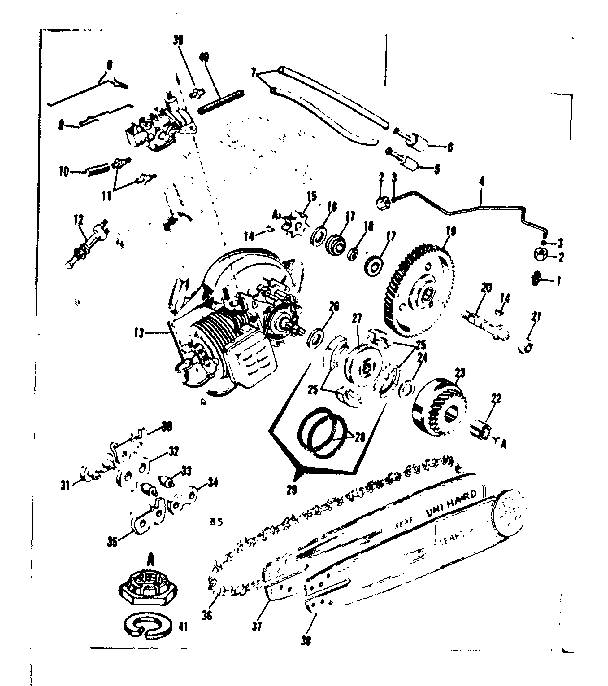

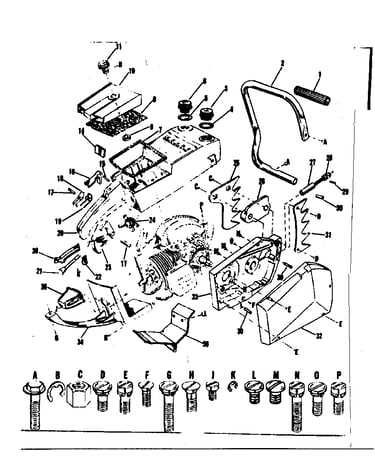

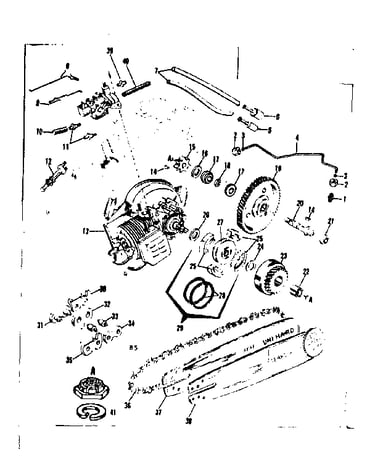

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Cover 610118
#26

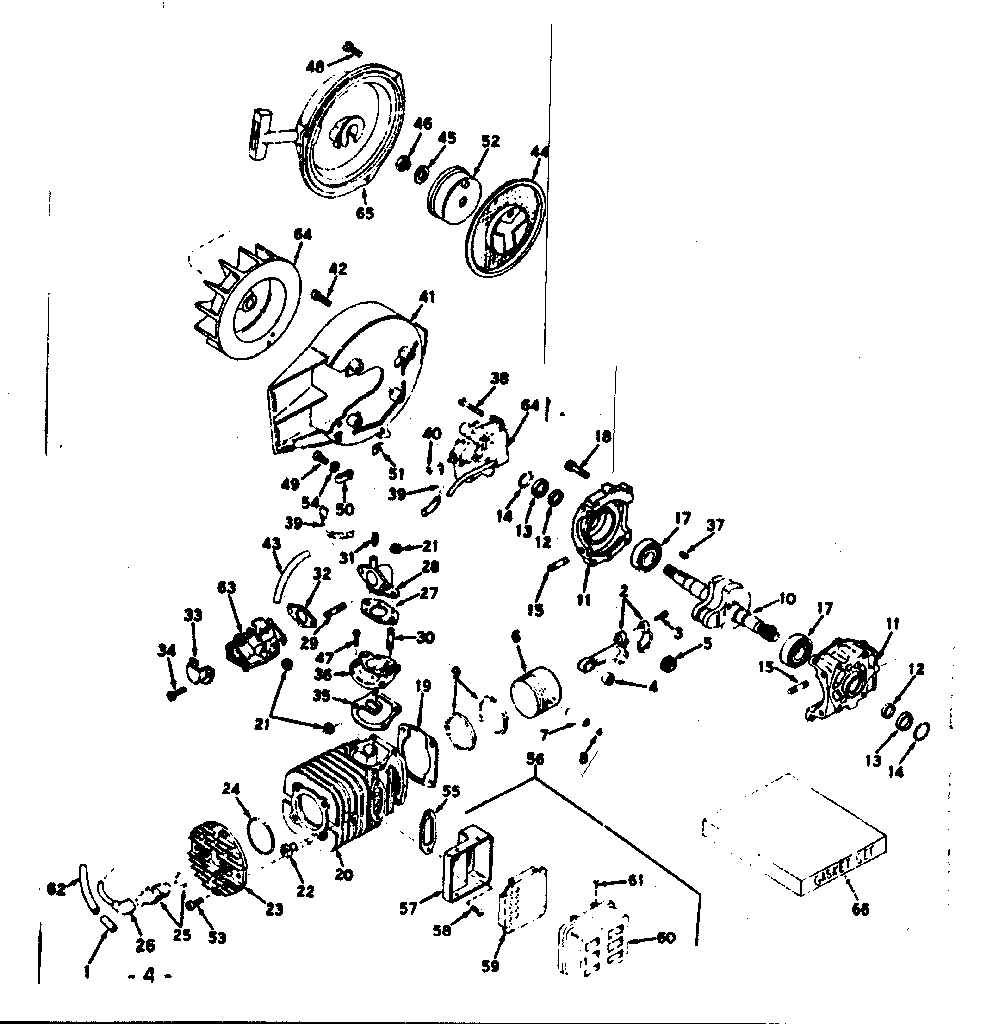

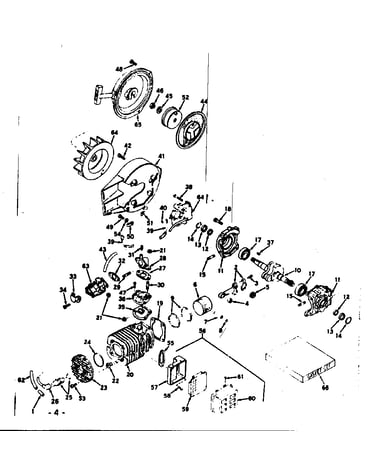

Cylinder /crankshaft and rewind starter diagram

Cover

Part #610118

Replaced by #610118

?
Manufacturer substitution
This part replaces 610118. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Gasket 510230
#55

Cylinder /crankshaft and rewind starter diagram

Gasket

Part #510230

Replaced by #510207A

?
Manufacturer substitution
This part replaces 510230. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Element 630953
#16

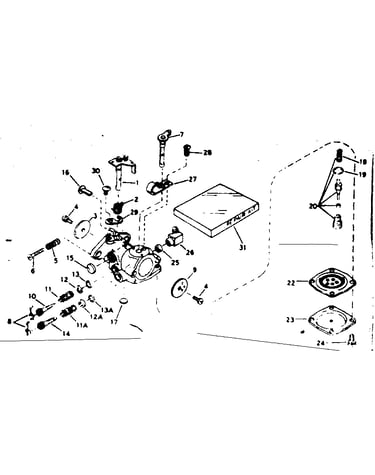

Carburetor diagram

Element

Part #630953

Replaced by #630953

?
Manufacturer substitution
This part replaces 630953. Substitute parts can look different from the original.
$9.57
In Stock
Piston 310189
#6

Cylinder /crankshaft and rewind starter diagram

Piston

Part #310189

Replaced by #310283A

?
Manufacturer substitution
This part replaces 310189. Substitute parts can look different from the original.
$29.89
In Stock
Gasket 630742
#19

Carburetor diagram

Gasket

Part #630742

Replaced by #630742

?
Manufacturer substitution
This part replaces 630742. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spring 630766
#5

Carburetor diagram

Spring

Part #630766

Replaced by #630766

?
Manufacturer substitution
This part replaces 630766. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Ring 310190
#9

Cylinder /crankshaft and rewind starter diagram

Ring

Part #310190

Replaced by #310289A

?
Manufacturer substitution
This part replaces 310190. Substitute parts can look different from the original.
$16.51
In Stock
Screw 650576
#49

Cylinder /crankshaft and rewind starter diagram

Screw

Part #650576

Replaced by #650597

?
Manufacturer substitution
This part replaces 650576. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Dog 590389
#7

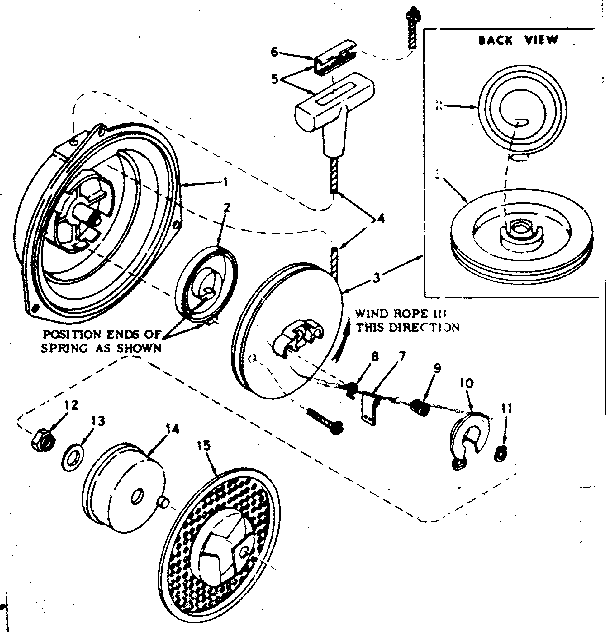

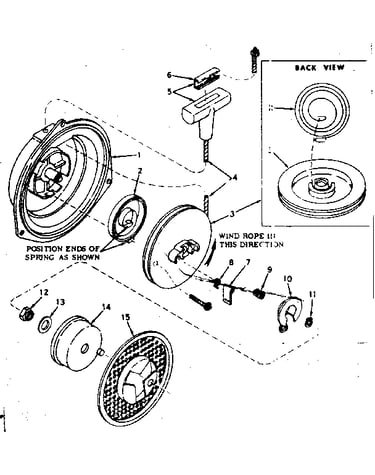

Rewind starter 590332b for gear drive saw engine diagram

Dog

Part #590389

Replaced by #590389

?
Manufacturer substitution
This part replaces 590389. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Spring 590418
#8

Rewind starter 590332b for gear drive saw engine diagram

Spring

Part #590418

Replaced by #590418

?
Manufacturer substitution
This part replaces 590418. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
