Dremel
Power Sander

Model # 1630-1 Official Dremel sander

Here are the diagrams and repair parts for Official Dremel 1630-1 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Spring 5296275
#36

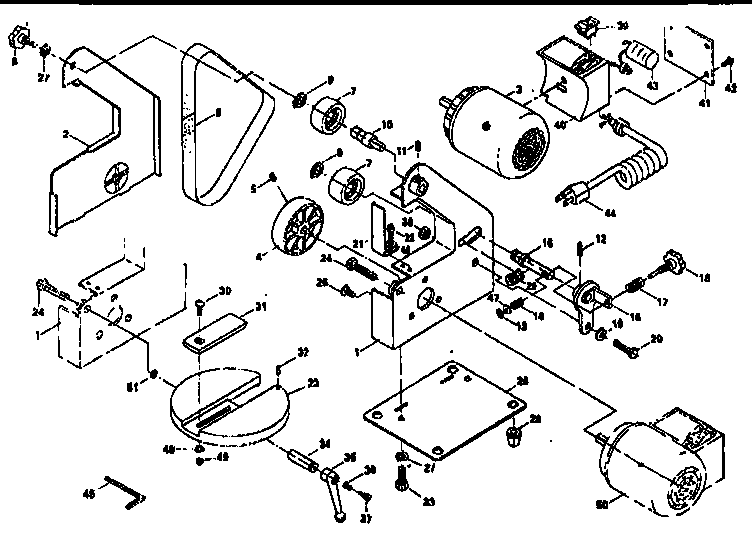

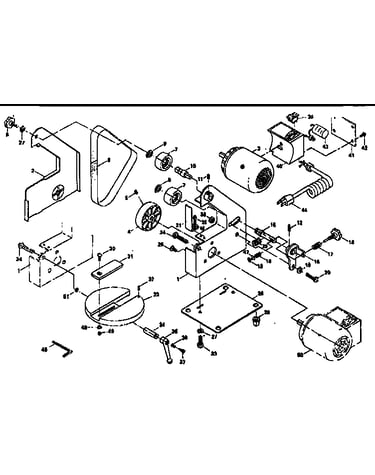

Unit parts diagram

Spring

Part #5296275

The manufacturer no longer makes this part, and there's no substitute part

Dremel Main Frame 5296267
#1

Unit parts diagram

Dremel main frame

Part #5296267

The manufacturer no longer makes this part, and there's no substitute part

Platen 5296266
#21

Unit parts diagram

Platen

Part #5296266

The manufacturer no longer makes this part, and there's no substitute part

Dremel Nut 5296351
#49

Unit parts diagram

Dremel nut

Part #5296351

The manufacturer no longer makes this part, and there's no substitute part

Dremel Gde Plte Scw 5296299
#30

Unit parts diagram

Dremel gde plte scw

Part #5296299

The manufacturer no longer makes this part, and there's no substitute part

Dremel Screw 5296255
#33

Unit parts diagram

Dremel screw

Part #5296255

The manufacturer no longer makes this part, and there's no substitute part

Dremel Screw 5296292
#32

Unit parts diagram

Dremel screw

Part #5296292

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Knob 5296274
#18

Unit parts diagram

Adjustment knob

Part #5296274

The manufacturer no longer makes this part, and there's no substitute part

Lever 5296269
#35

Unit parts diagram

Lever

Part #5296269

The manufacturer no longer makes this part, and there's no substitute part

Pin 5296294
#12

Unit parts diagram

Pin

Part #5296294

The manufacturer no longer makes this part, and there's no substitute part
