Model # 752KSV5903 Official Kohler engine

Here are the diagrams and repair parts for Official Kohler 752KSV5903 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

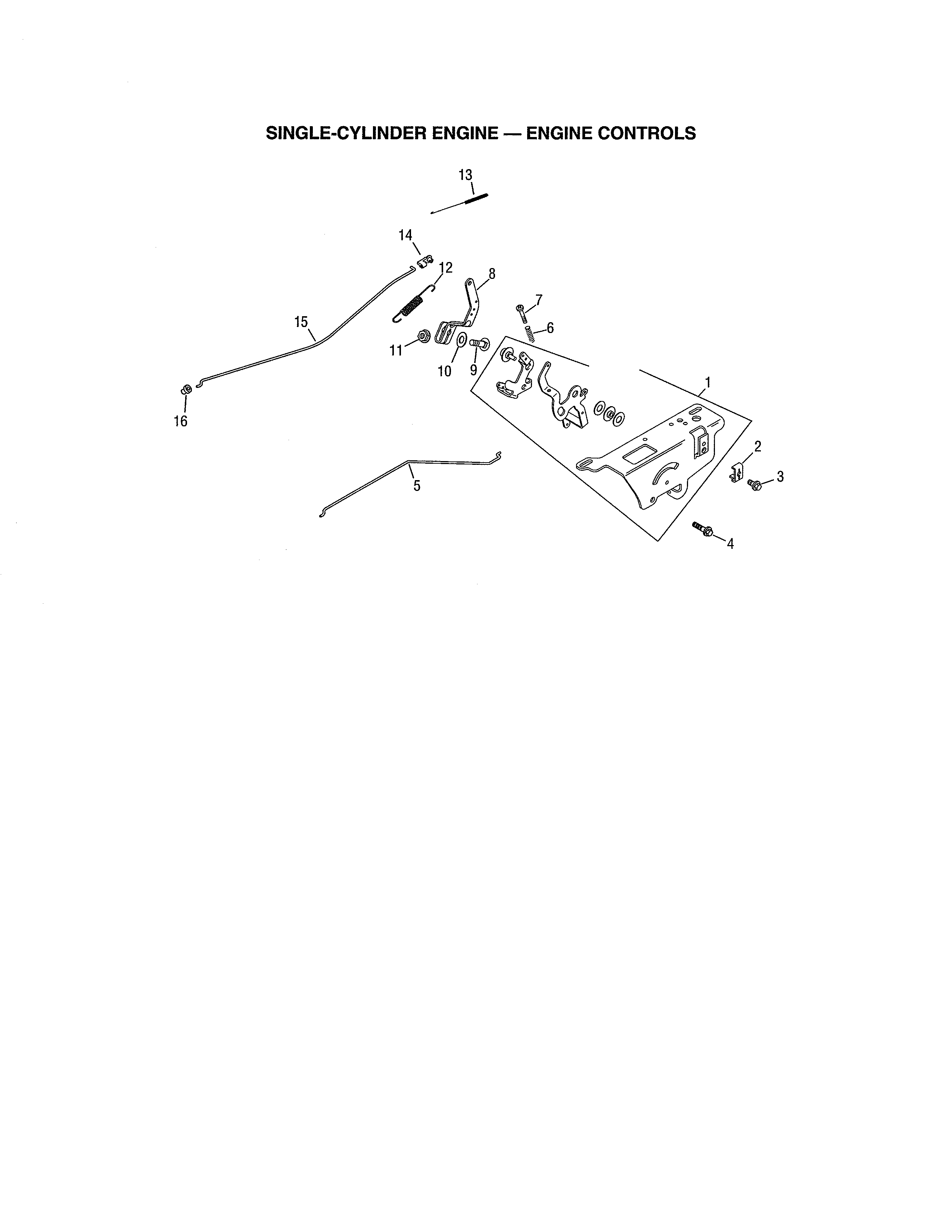

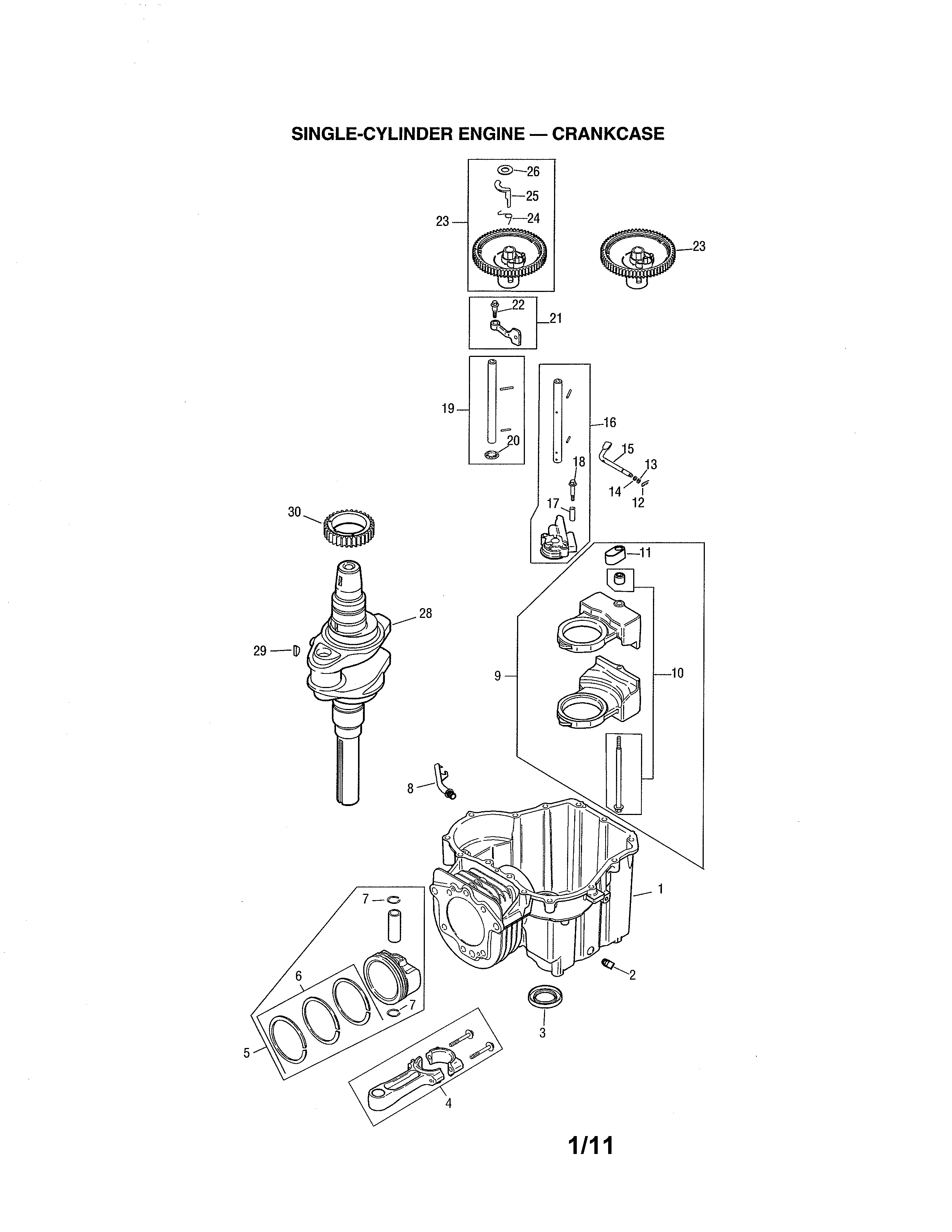

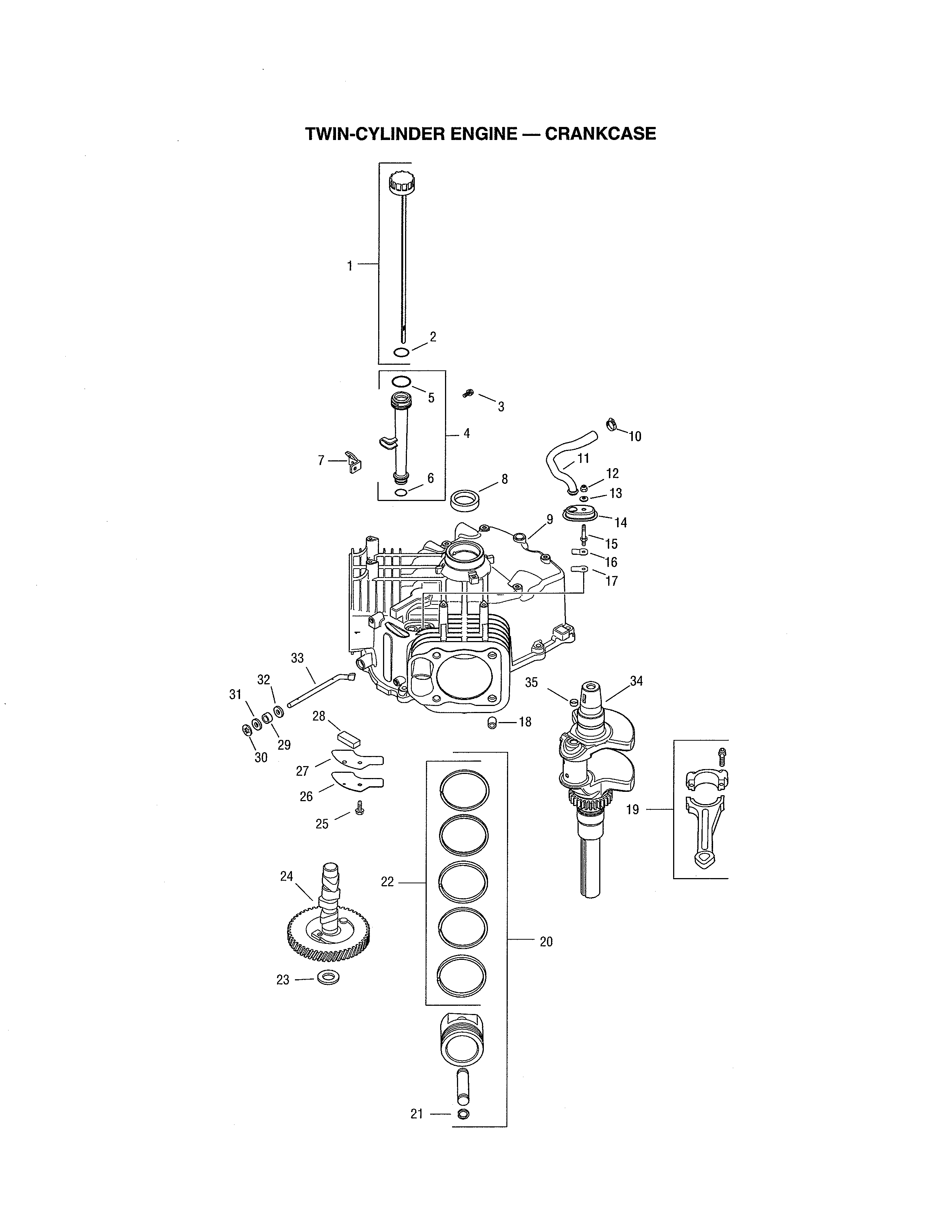

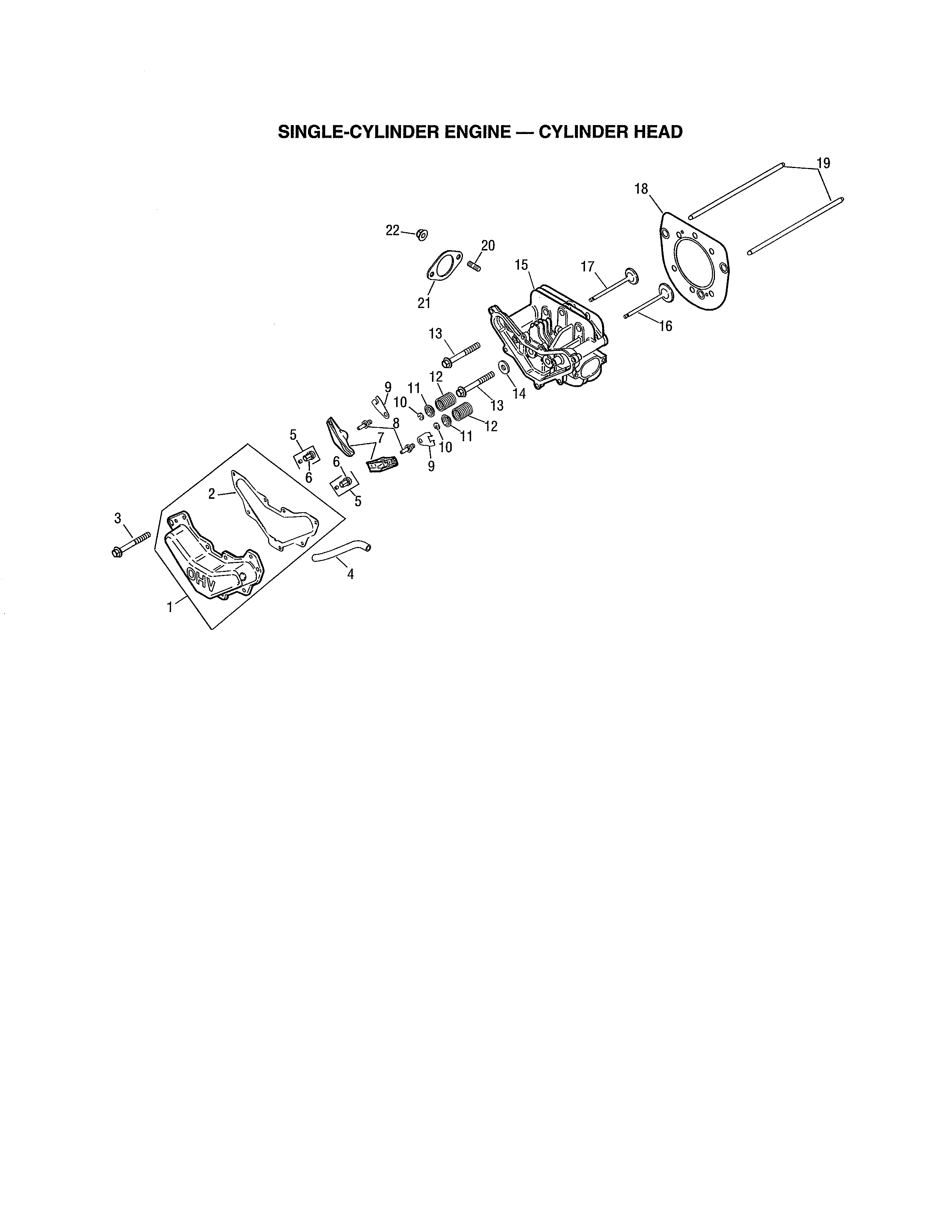

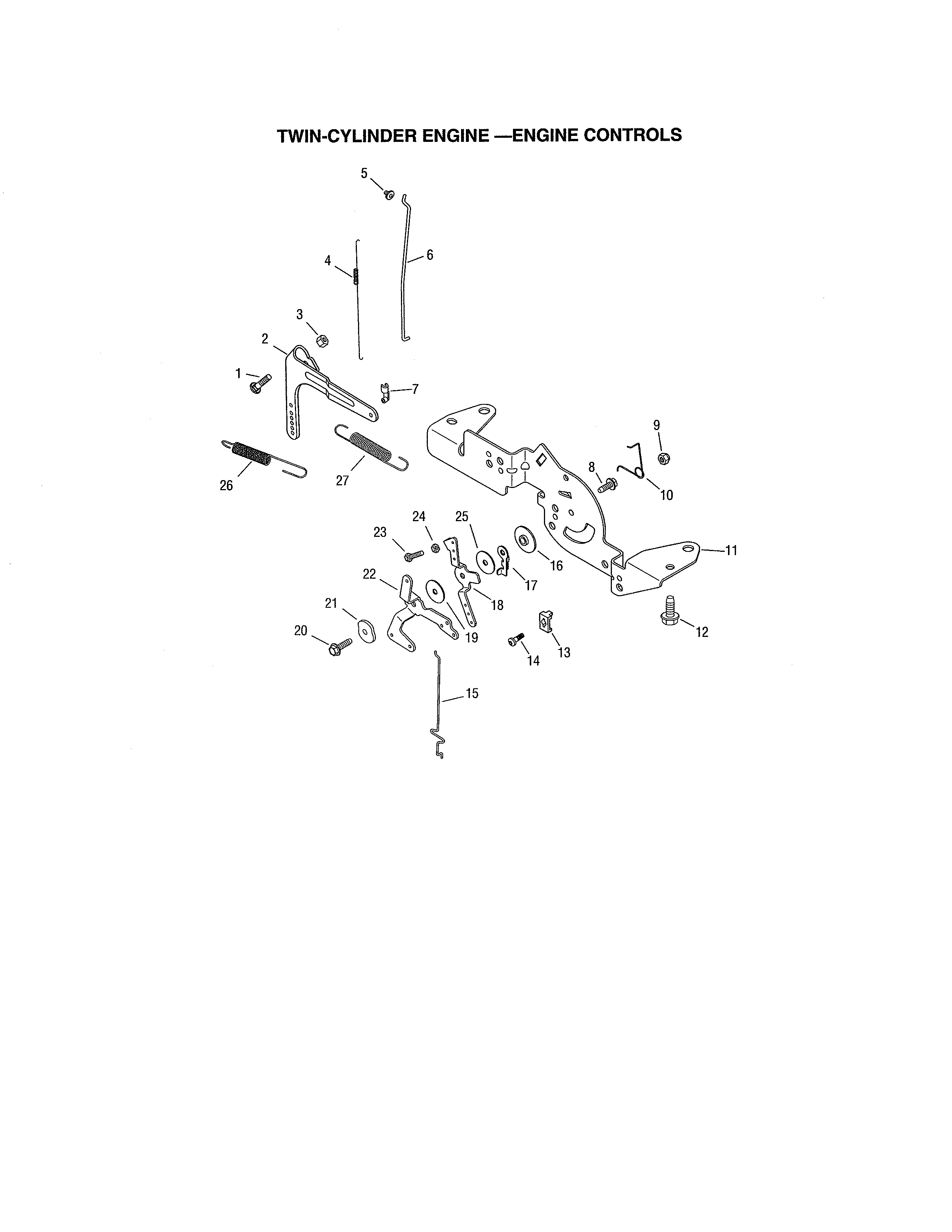

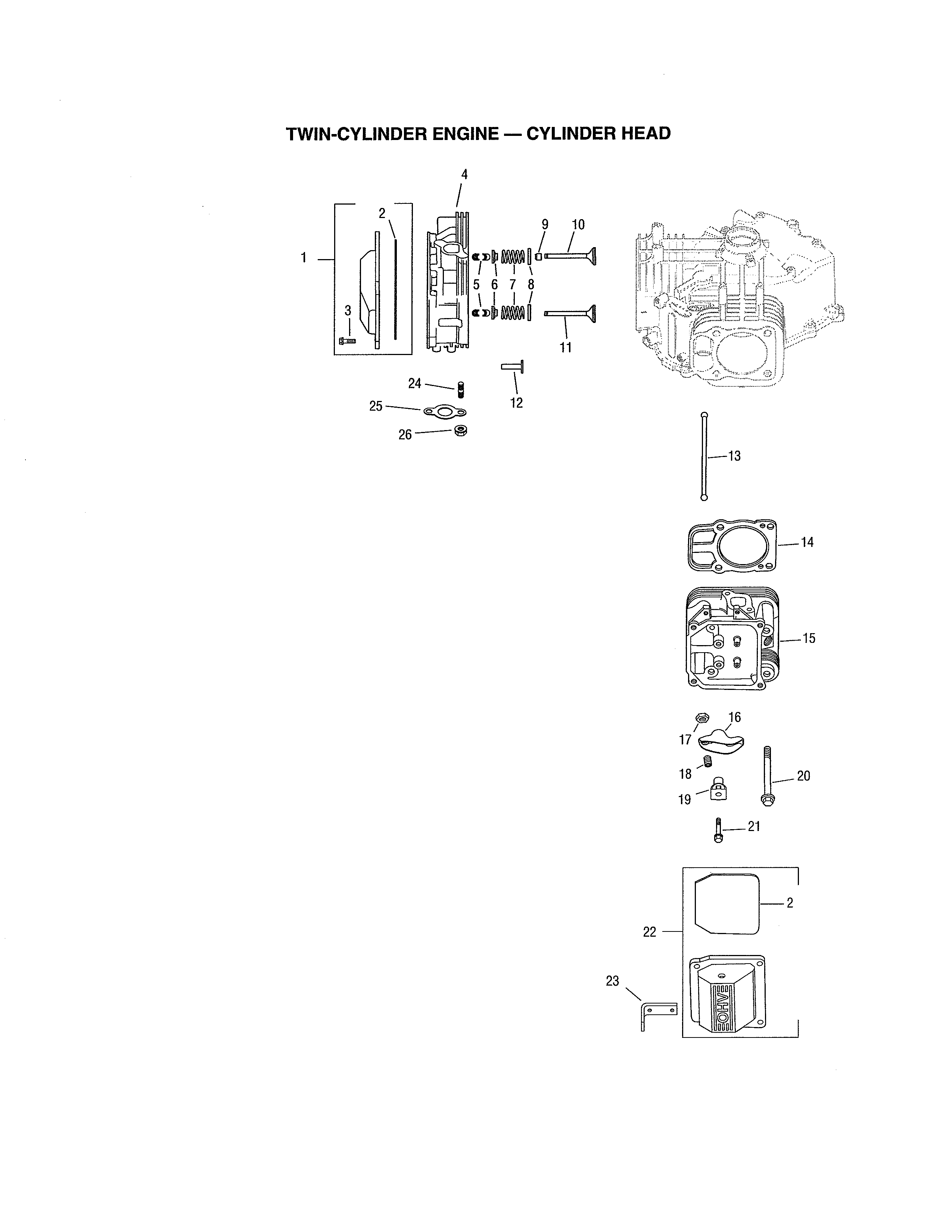

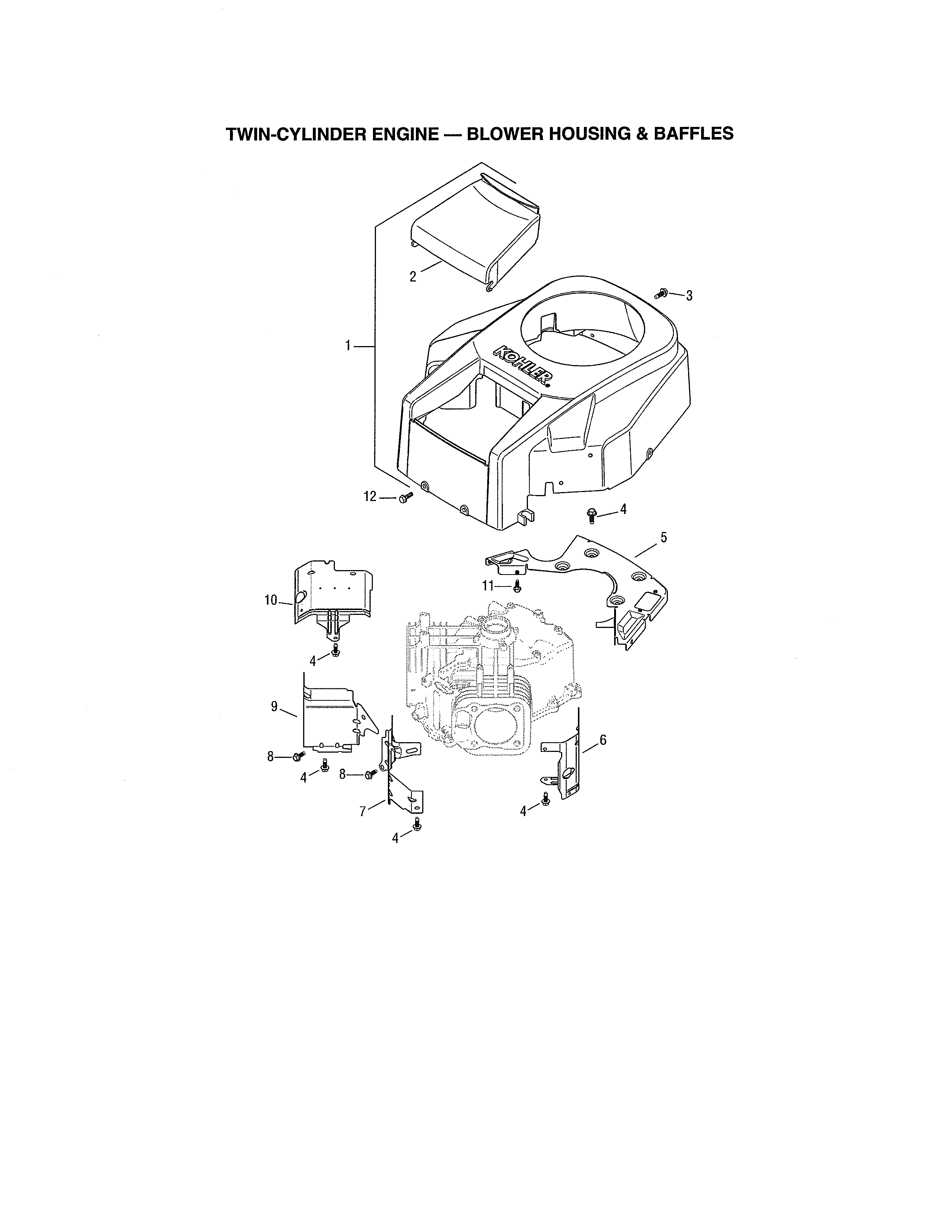

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Oil Filter 52-050-02
#17

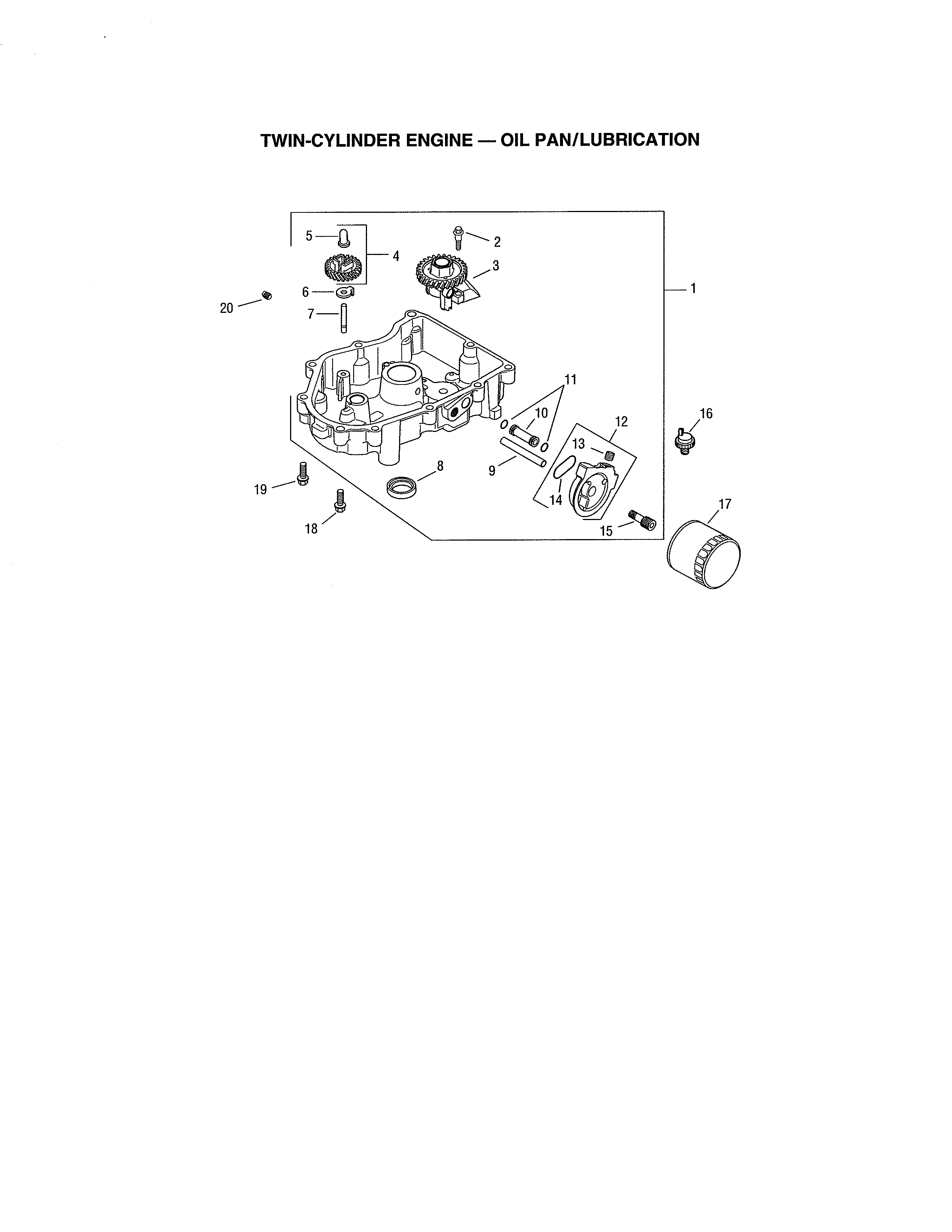

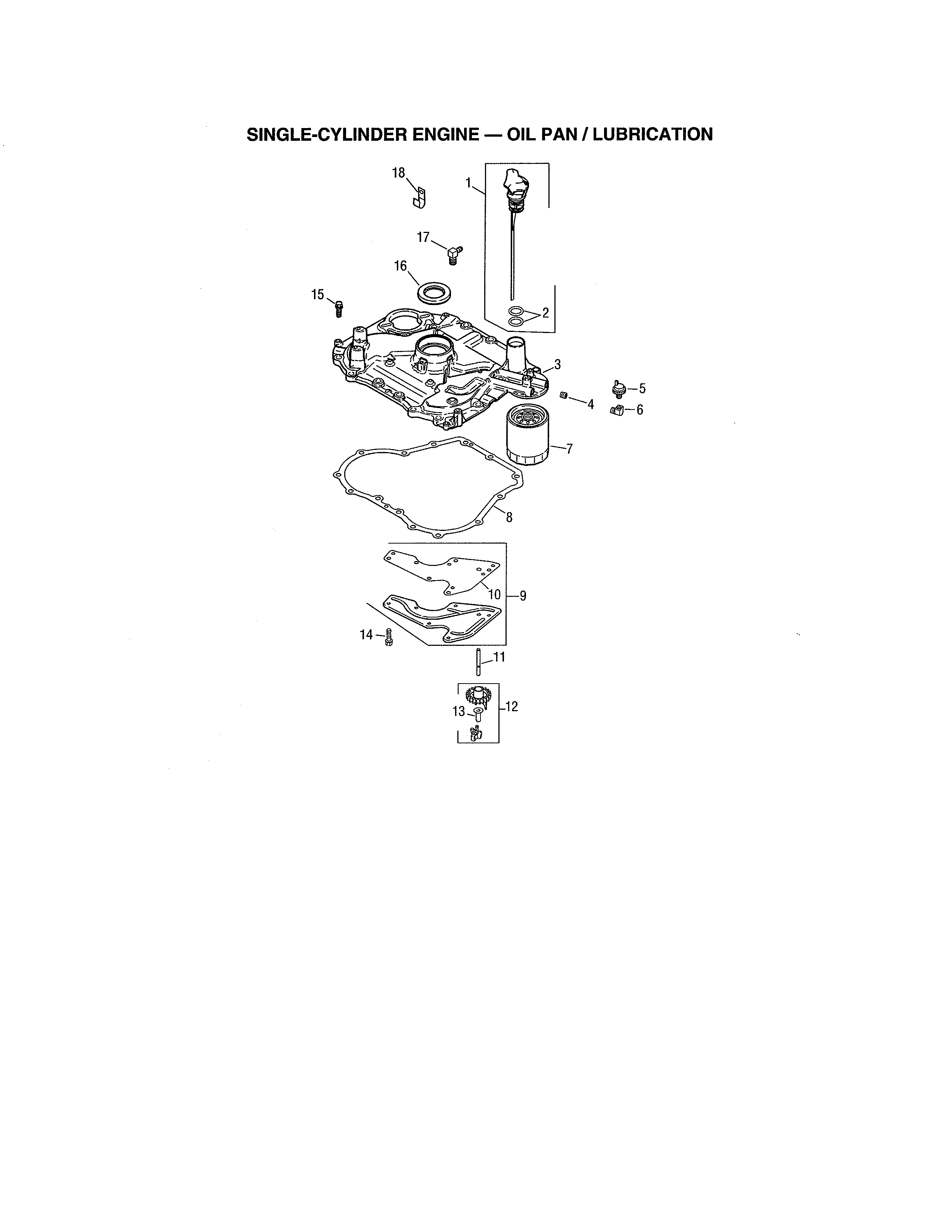

Oil pan/lubrication diagram

Oil filter

Part #52-050-02

Replaced by #52-050-02-S1

?
Manufacturer substitution
This part replaces 52-050-02. Substitute parts can look different from the original.
BEST SELLER
$14.24 |
12% OFF Phone Price : $16.24
In Stock
Lawn & Garden Equipment Engine Starter Motor 32-098-01-S
#2

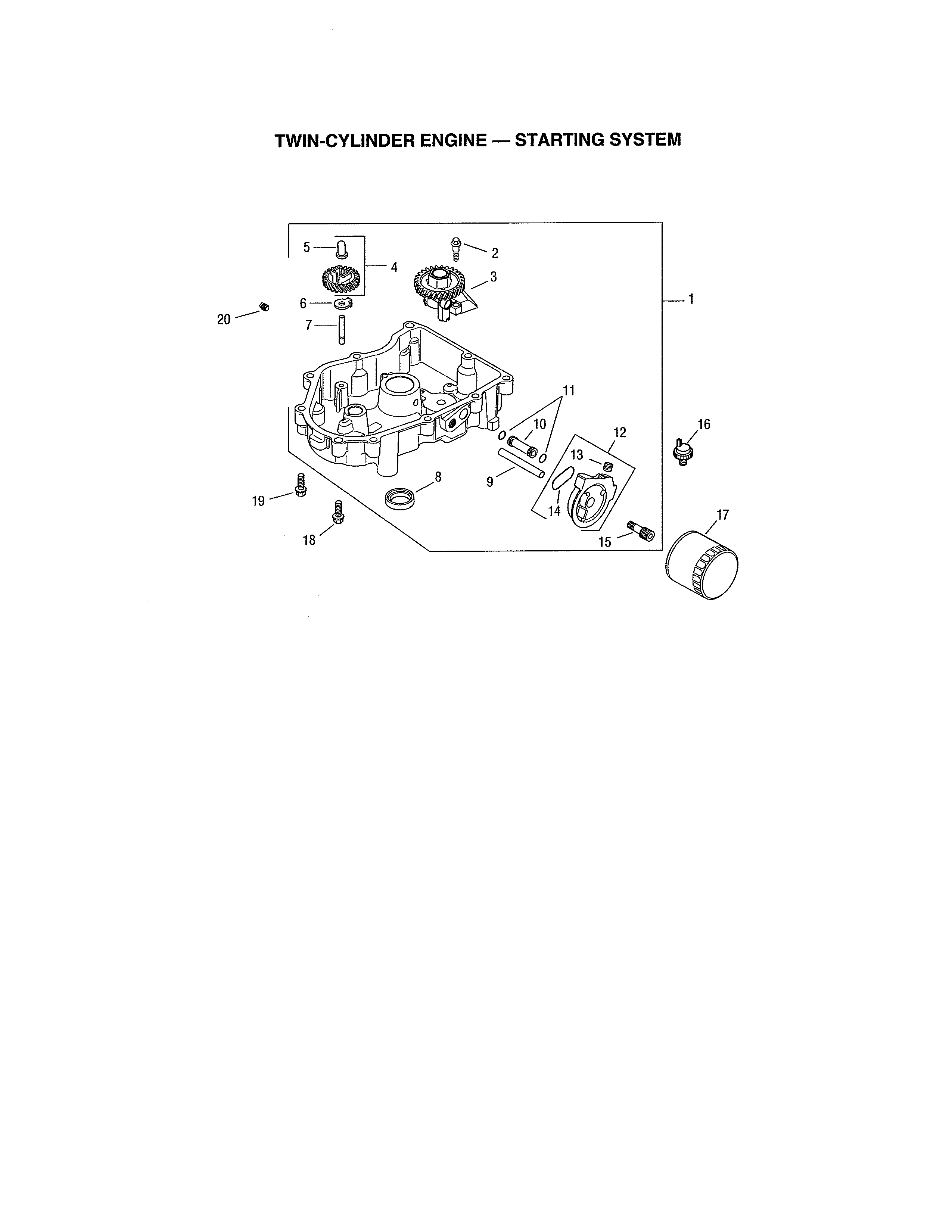

Starting system diagram

Lawn & garden equipment engine starter motor

Part #32-098-01-S

Replaced by #32-098-10-S

?
Manufacturer substitution
This part replaces 32-098-01-S. Substitute parts can look different from the original.
BEST SELLER
$194.81 |
6% OFF Phone Price : $206.81
Back Order
Lawn & Garden Equipment Engine Air Filter 32-083-03-S
#7

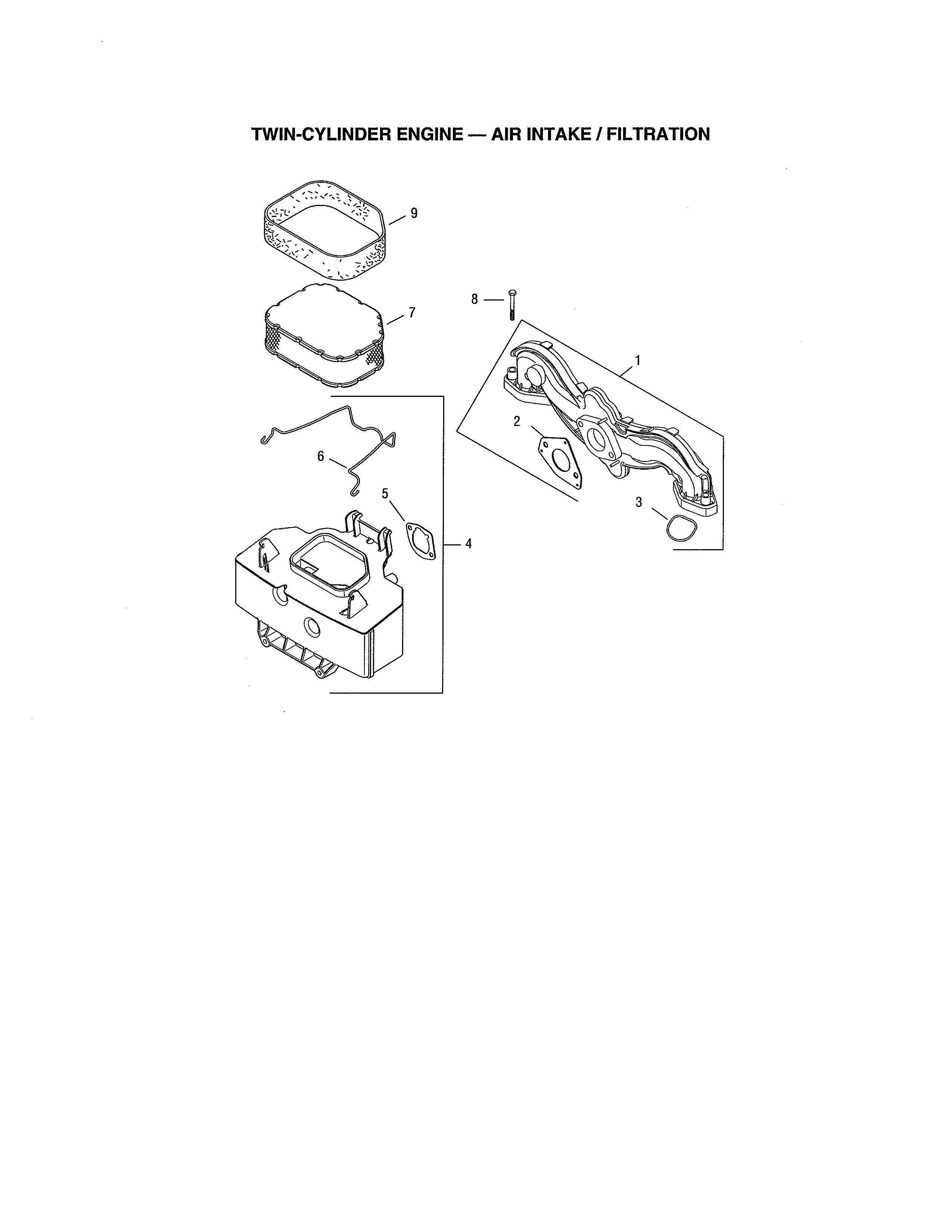

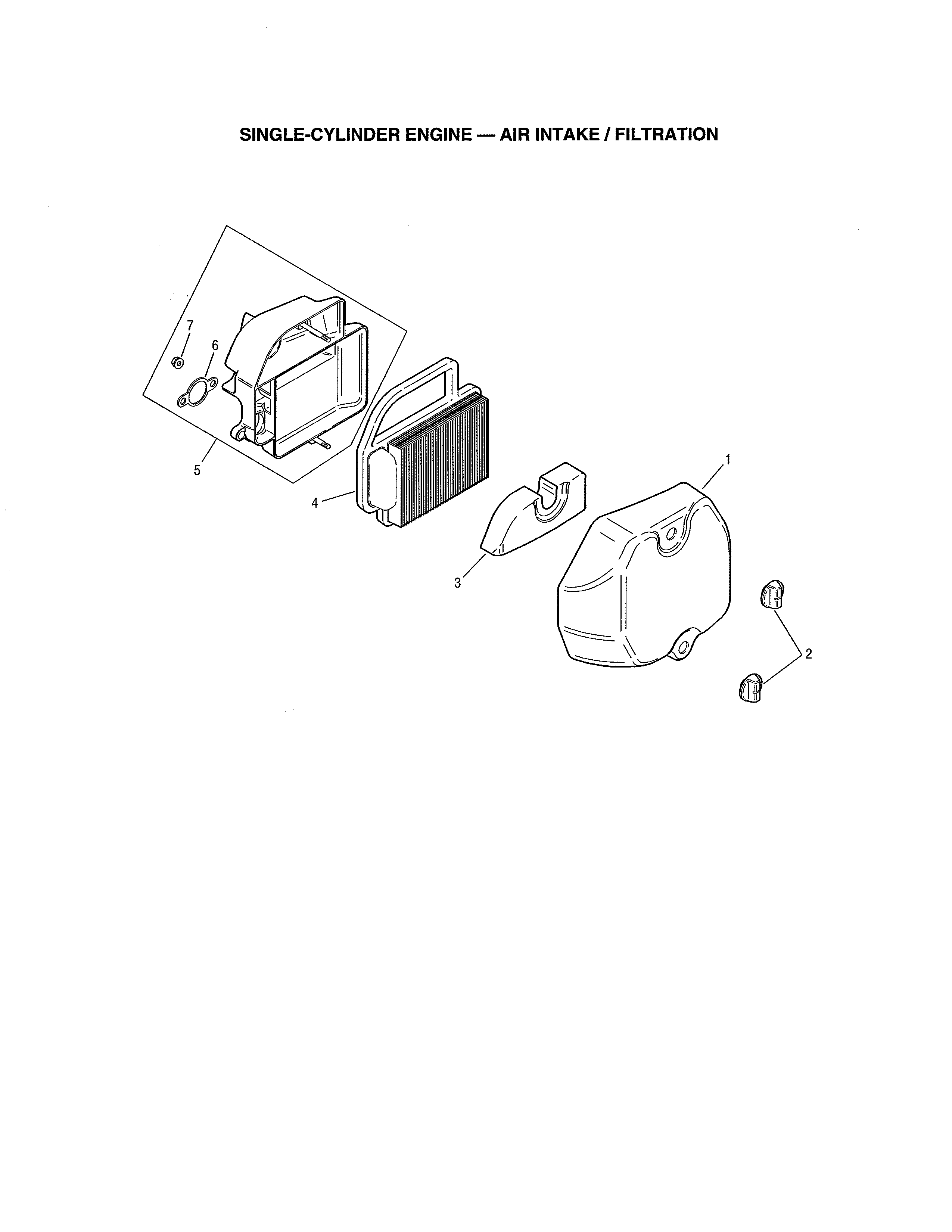

Air intake/filtration diagram

Lawn & garden equipment engine air filter

Part #32-083-03-S

BEST SELLER
$19.49 |
22% OFF Was : $25.06
In Stock
Fuel Pump 24-393-16
Fuel pump

Part #24-393-16

Replaced by #24-393-16-S

?
Manufacturer substitution
This part replaces 24-393-16. Substitute parts can look different from the original.
BEST SELLER
$59.66 |
9% OFF Phone Price : $65.66
In Stock
Lawn & Garden Equipment Engine Air Filter 20-083-02-S
#4

Air intake/filtration diagram

Lawn & garden equipment engine air filter

Part #20-083-02-S

Replaced by #20-083-06-S

?
Manufacturer substitution
This part replaces 20-083-02-S. Substitute parts can look different from the original.
BEST SELLER
$17.11 |
22% OFF Was : $22.00
In Stock
Lawn & Garden Equipment Engine Fuel Filter (replaces 25-050-08-s) 25-050-22-S
Lawn & garden equipment engine fuel filter (replaces 25-050-08-s)

Part #25-050-22-S

BEST SELLER
$9.14 |
10% OFF Phone Price : $10.14
In Stock
Lawn & Garden Equipment Engine Ignition Module (replaces 24-584-15-s, 24-584-36, Kh-24-584-15, Kh-24-584-36-s) 24-584-36-S
#15

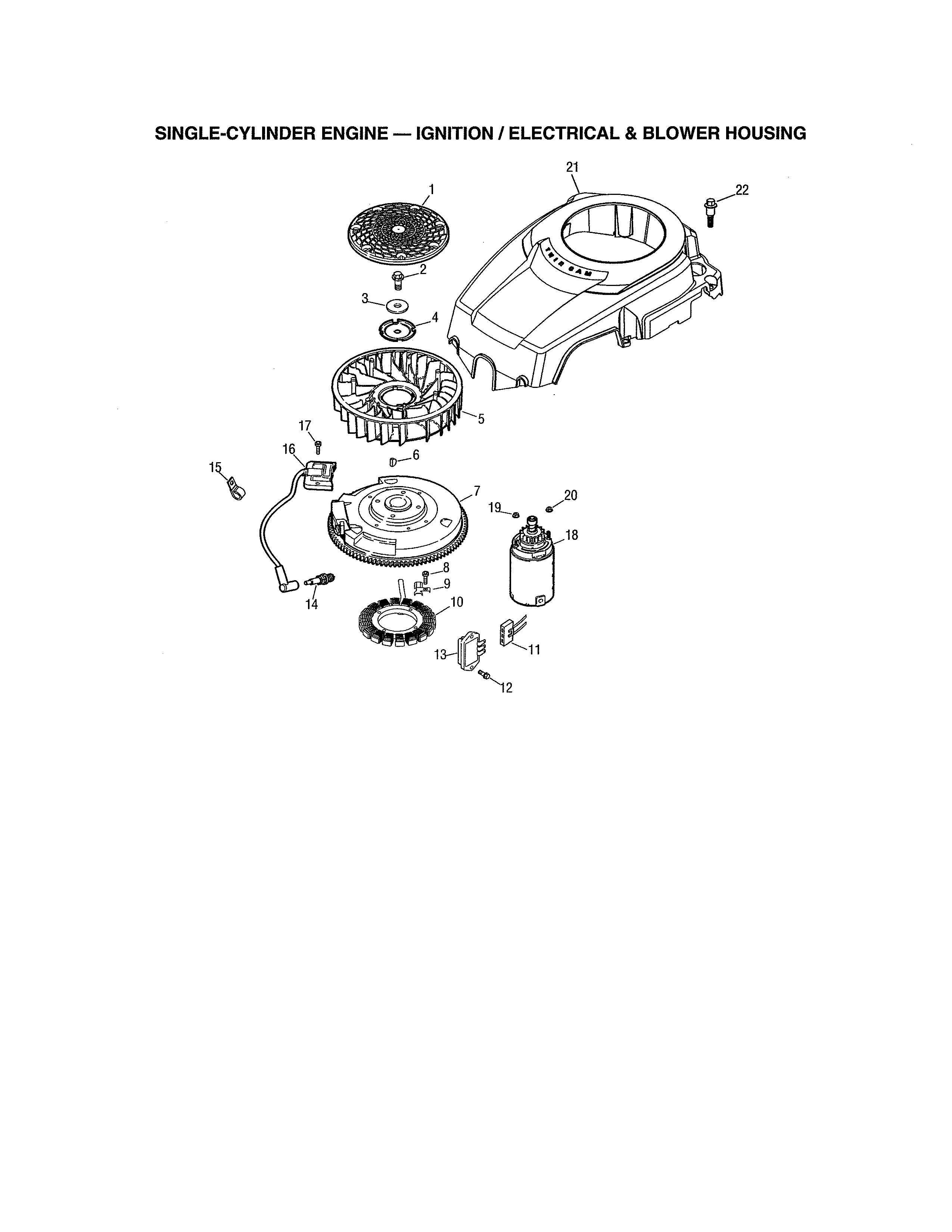

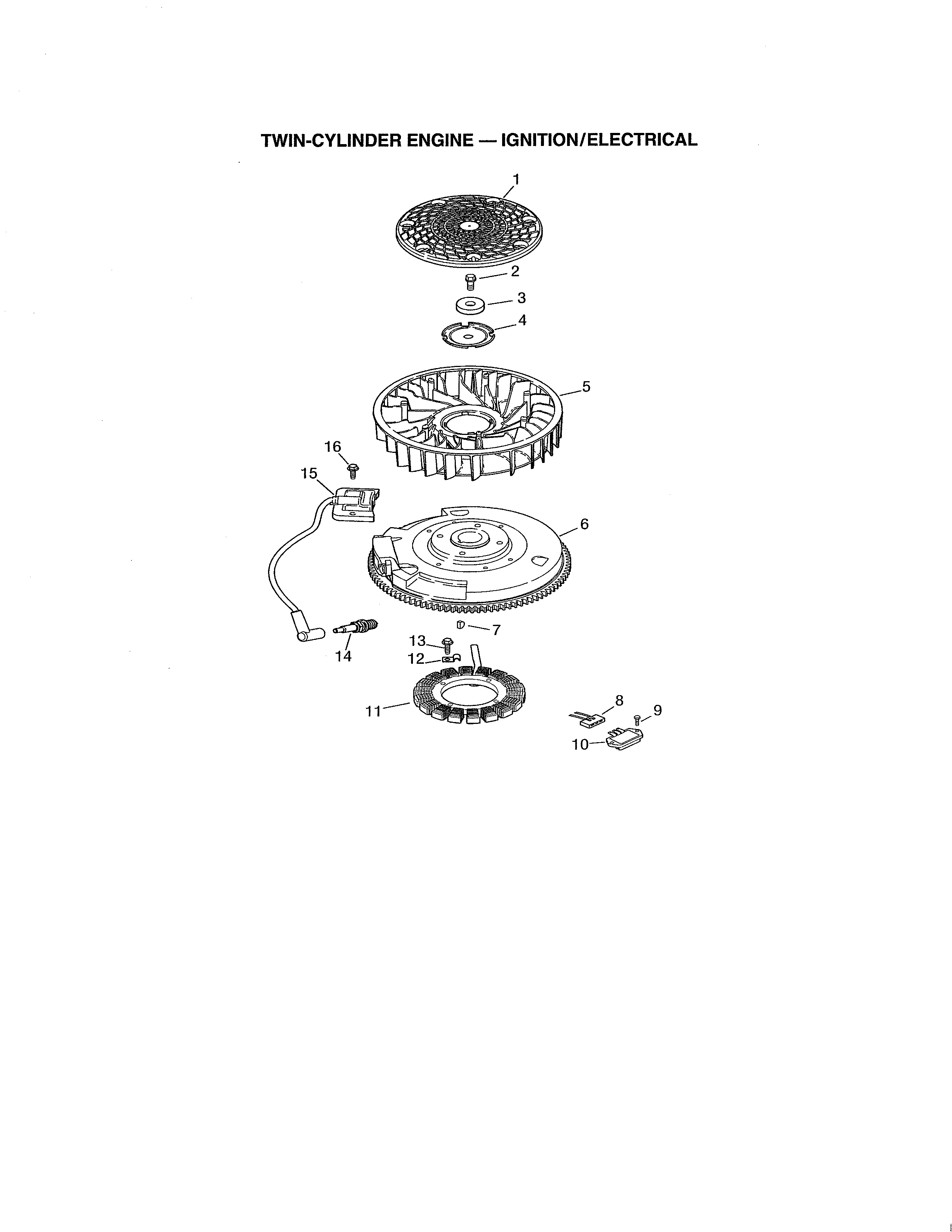

Ignition/electrical diagram

Lawn & garden equipment engine ignition module (replaces 24-584-15-s, 24-584-36, kh-24-584-15, kh-24-584-36-s)

Part #24-584-36-S

BEST SELLER
$74.38 |
26% OFF Was : $100.00
Back Order
Gasket 12-041-01
#5

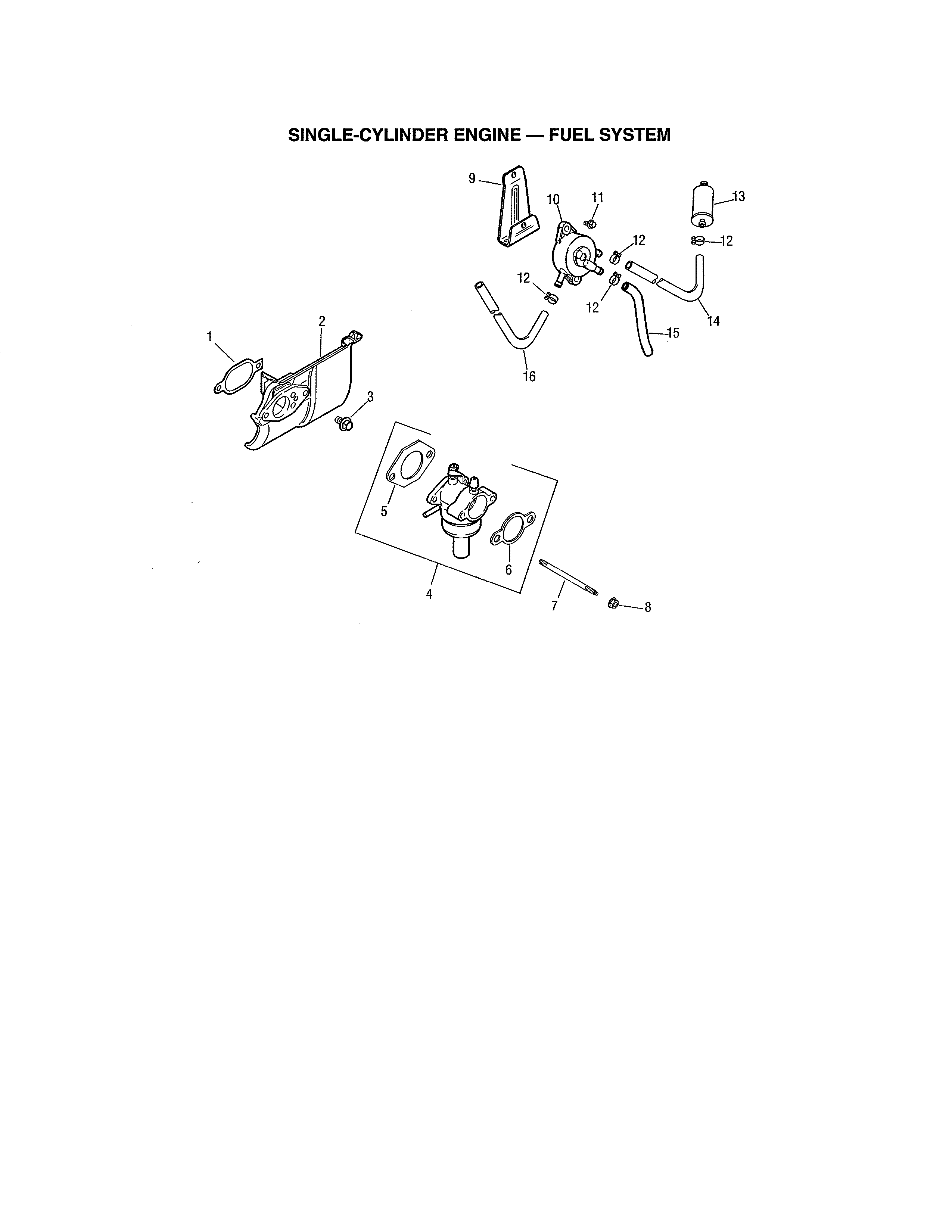

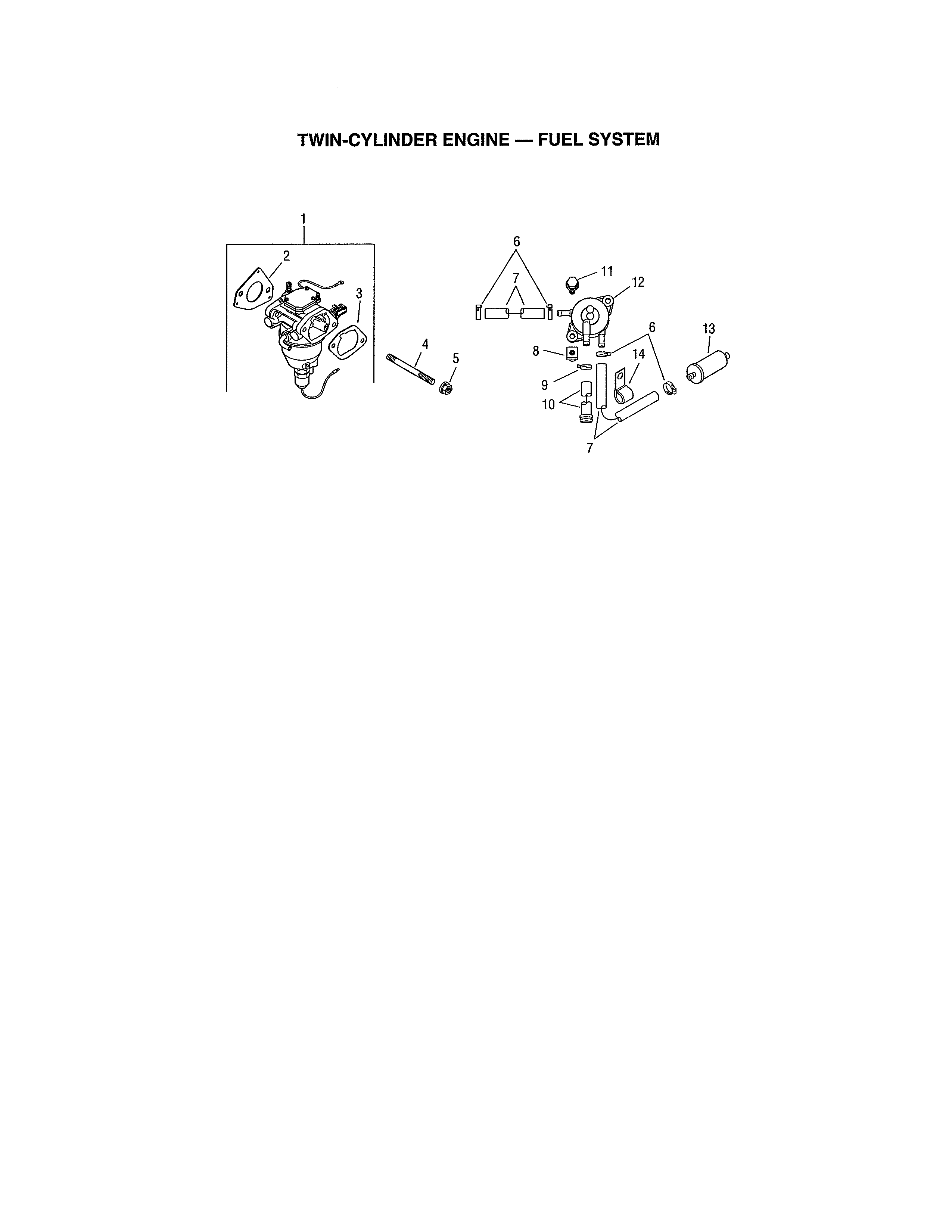

Fuel system diagram

Gasket

Part #12-041-01

Replaced by #12-041-01-S

?
Manufacturer substitution
This part replaces 12-041-01. Substitute parts can look different from the original.
This item is not returnable
$2.91 |
26% OFF Phone Price : $3.91
In Stock
Line Flexibl 20-353-01-S
#14

Fuel system diagram

Line flexibl

Part #20-353-01-S

Replaced by #25-111-81-S

?
Manufacturer substitution
This part replaces 20-353-01-S. Substitute parts can look different from the original.
$21.91 |
21% OFF Phone Price : $27.91
In Stock
Fuel Hose 25-111-34-S
#7

Fuel system diagram

Fuel hose

Part #25-111-34-S

Replaced by #25-111-81-S

?
Manufacturer substitution
This part replaces 25-111-34-S. Substitute parts can look different from the original.
$21.91 |
21% OFF Phone Price : $27.91
In Stock
