Model # 51221386550 Official LXI double cassette recorder with radio

Here are the diagrams and repair parts for Official LXI 51221386550 double cassette recorder with radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

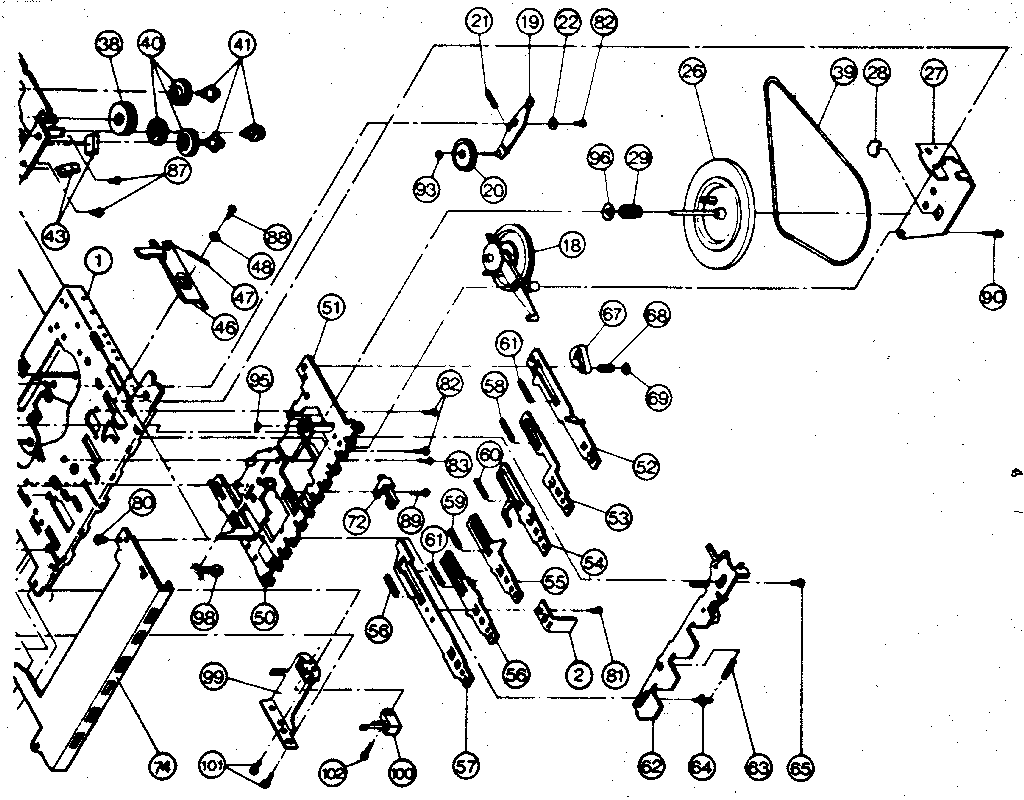

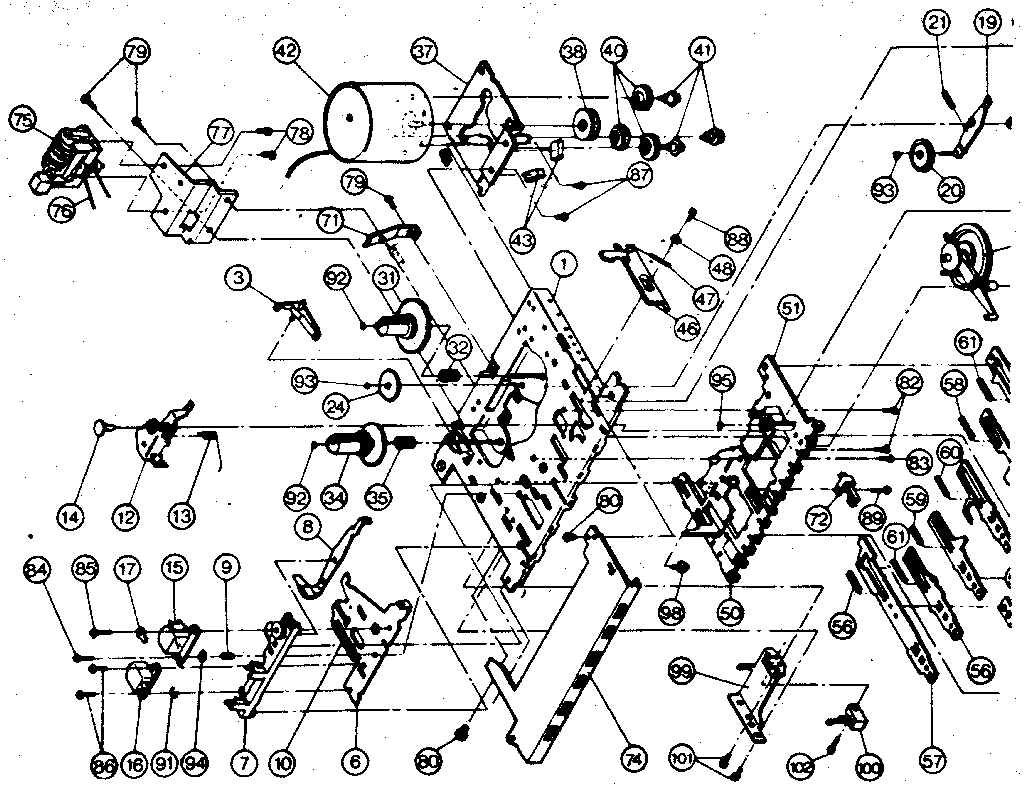

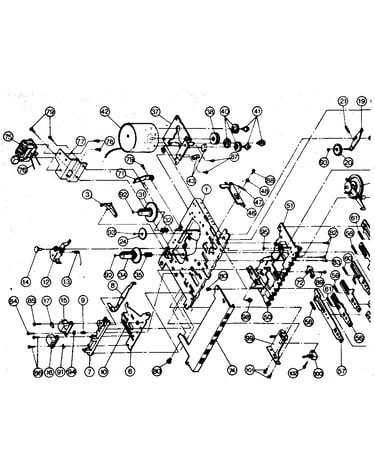

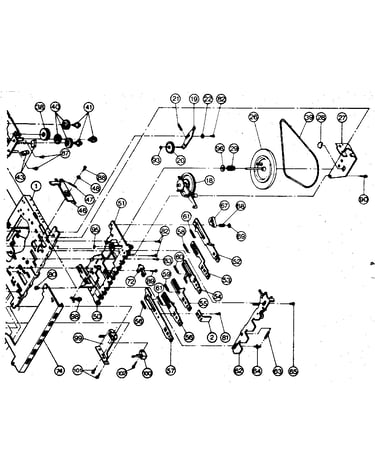

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Lever Eject 1800-11-01A

#46

All parts diagram

Lever eject

Part #1800-11-01A

The manufacturer no longer makes this part, and there's no substitute part

Washer 9743-00-00

#92

All parts diagram

Washer

Part #9743-00-00

The manufacturer no longer makes this part, and there's no substitute part

Record Spring 1510-02-02

#2

All parts diagram

Record spring

Part #1510-02-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 9277-00-00

#87

All parts diagram

Screw

Part #9277-00-00

The manufacturer no longer makes this part, and there's no substitute part

Felt Mat 1800-10-25

#43

All parts diagram

Felt mat

Part #1800-10-25

The manufacturer no longer makes this part, and there's no substitute part

Screw 9191-00-00

#79

All parts diagram

Screw

Part #9191-00-00

The manufacturer no longer makes this part, and there's no substitute part

Screw Collar 9718-00-00

#98

All parts diagram

Screw collar

Part #9718-00-00

The manufacturer no longer makes this part, and there's no substitute part

Sensing Plat 1800-03-303

#8

All parts diagram

Sensing plat

Part #1800-03-303

The manufacturer no longer makes this part, and there's no substitute part

Screw 9212-00-00

#84

All parts diagram

Screw

Part #9212-00-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 9076-00-00

#81

All parts diagram

Screw

Part #9076-00-00

The manufacturer no longer makes this part, and there's no substitute part
