Model # RAE10 Official Maytag maytag icemaker kit

Here are the diagrams and repair parts for Official Maytag RAE10 maytag icemaker kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Retainer, Th 95104-1
#6

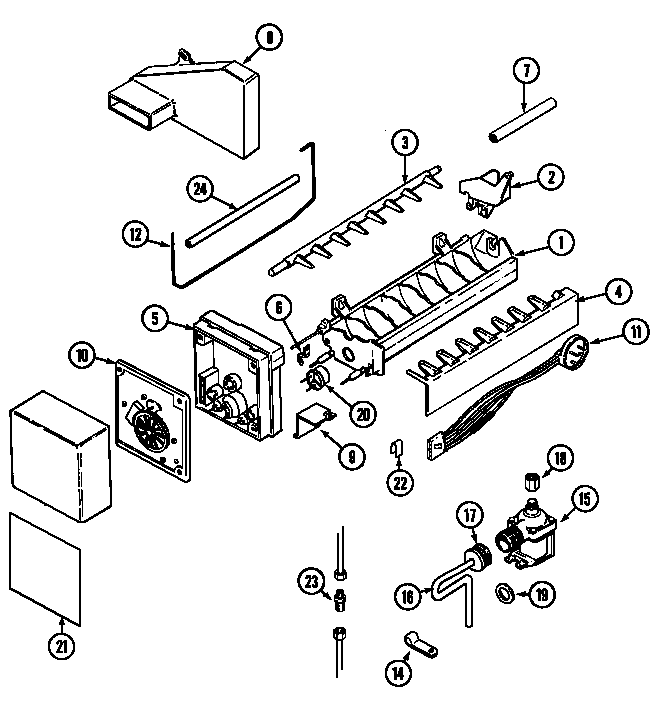

Ice maker kit diagram

Retainer, th

Part #95104-1

Replaced by #WP2315522

?
Manufacturer substitution
This part replaces 95104-1. Substitute parts can look different from the original.
$7.28 |
12% OFF Phone Price : $8.28
In Stock
Igniter Screw 400021-1
Igniter screw

Part #400021-1

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 400021-1. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Stripper, Ic 95102-1
#4

Ice maker kit diagram

Stripper, ic

Part #95102-1

Replaced by #WP2182124

?
Manufacturer substitution
This part replaces 95102-1. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
Support Module 95103-1
#5

Ice maker kit diagram

Support module

Part #95103-1

Replaced by #WP2195914

?
Manufacturer substitution
This part replaces 95103-1. Substitute parts can look different from the original.
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Refrigerator Ice Ejector 95101-1
#3

Ice maker kit diagram

Refrigerator ice ejector

Part #95101-1

Replaced by #WP627843

?
Manufacturer substitution
This part replaces 95101-1. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Refrigerator Screw 95106-1
#5A

Ice maker kit diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Inlet Tubing Assembly 60219-1
#16

Ice maker kit diagram

Inlet tubing assembly

Part #60219-1

The manufacturer no longer makes this part, and there's no substitute part

Nut, Compression (1/4") 69583-1
#18

Ice maker kit diagram

Nut, compression (1/4")

Part #69583-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 95108-1
#9A

Ice maker kit diagram

Screw

Part #95108-1

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 95092-1
#20

Ice maker kit diagram

Thermostat

Part #95092-1

The manufacturer no longer makes this part, and there's no substitute part
