Model # HR160DWA Official Makita rotary hammer

Here are the diagrams and repair parts for Official Makita HR160DWA rotary hammer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Rbber Pin 4 263014-2
Rbber pin 4

Part #263014-2

The manufacturer no longer makes this part, and there's no substitute part

Rubber Pin 263002-9
Rubber pin

Part #263002-9

The manufacturer no longer makes this part, and there's no substitute part

Ring Complet 154404-9
#3

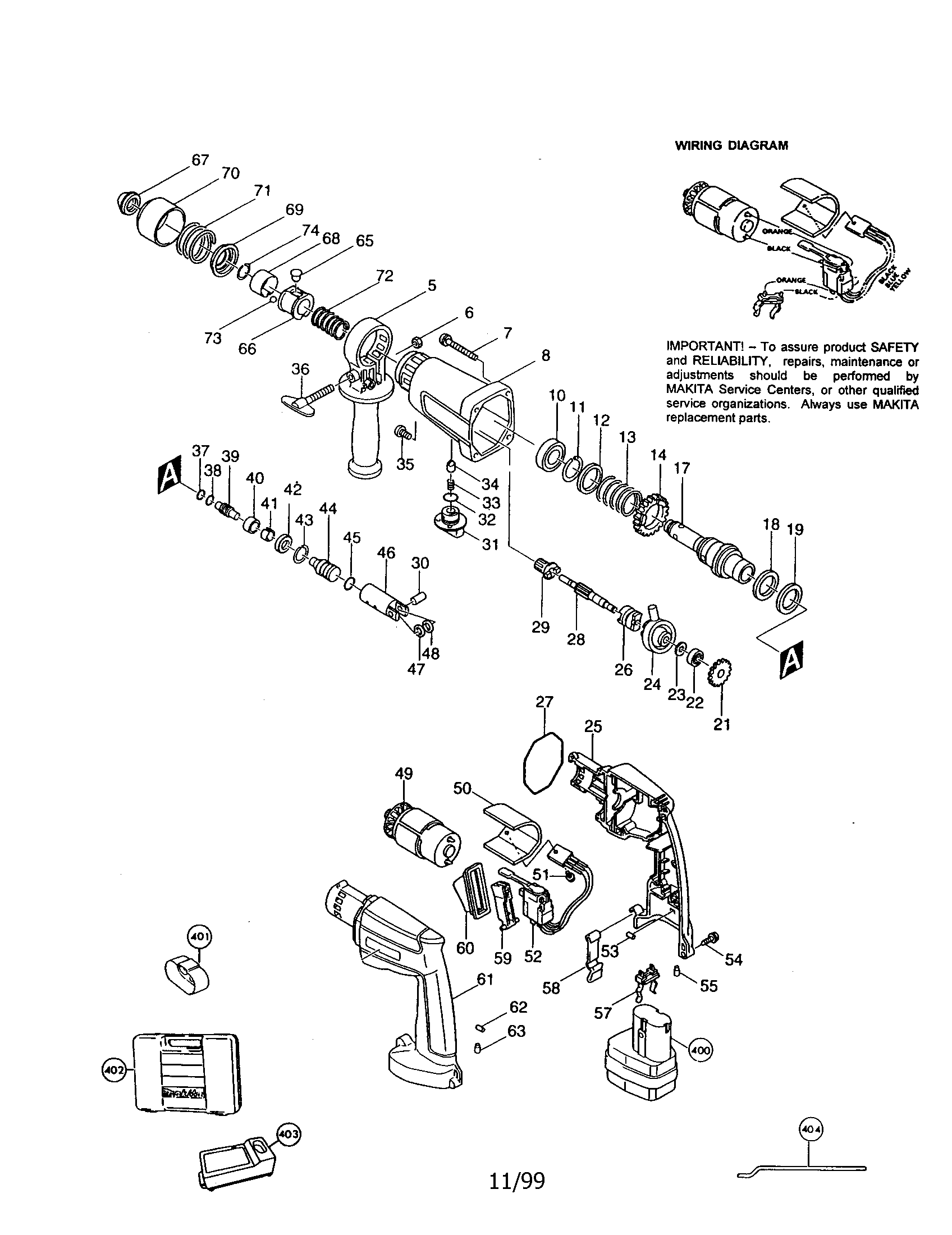

Cordless rotary hammer diagram

Ring complet

Part #154404-9

The manufacturer no longer makes this part, and there's no substitute part

Set Plate 344121-1
#58

Cordless rotary hammer diagram

Set plate

Part #344121-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 265995-6
#54

Cordless rotary hammer diagram

Screw

Part #265995-6

The manufacturer no longer makes this part, and there's no substitute part

Ring Cover 415076-8
#2

Cordless rotary hammer diagram

Ring cover

Part #415076-8

The manufacturer no longer makes this part, and there's no substitute part

Charger DC1411
#403

Cordless rotary hammer diagram

Charger

Part #DC1411

The manufacturer no longer makes this part, and there's no substitute part

Change Lever 415372-4
#31

Cordless rotary hammer diagram

Change lever

Part #415372-4

The manufacturer no longer makes this part, and there's no substitute part

Plastic Carrying Case (incl. Slide Latch (r, L) Set 824551-7
#402

Cordless rotary hammer diagram

Plastic carrying case (incl. slide latch (r, l) set

Part #824551-7

The manufacturer no longer makes this part, and there's no substitute part

Swash Bearing 9 219007-7
#24

Cordless rotary hammer diagram

Swash bearing 9

Part #219007-7

The manufacturer no longer makes this part, and there's no substitute part
