DeWalt
Power Drill

Model # 2664TY1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt 2664TY1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

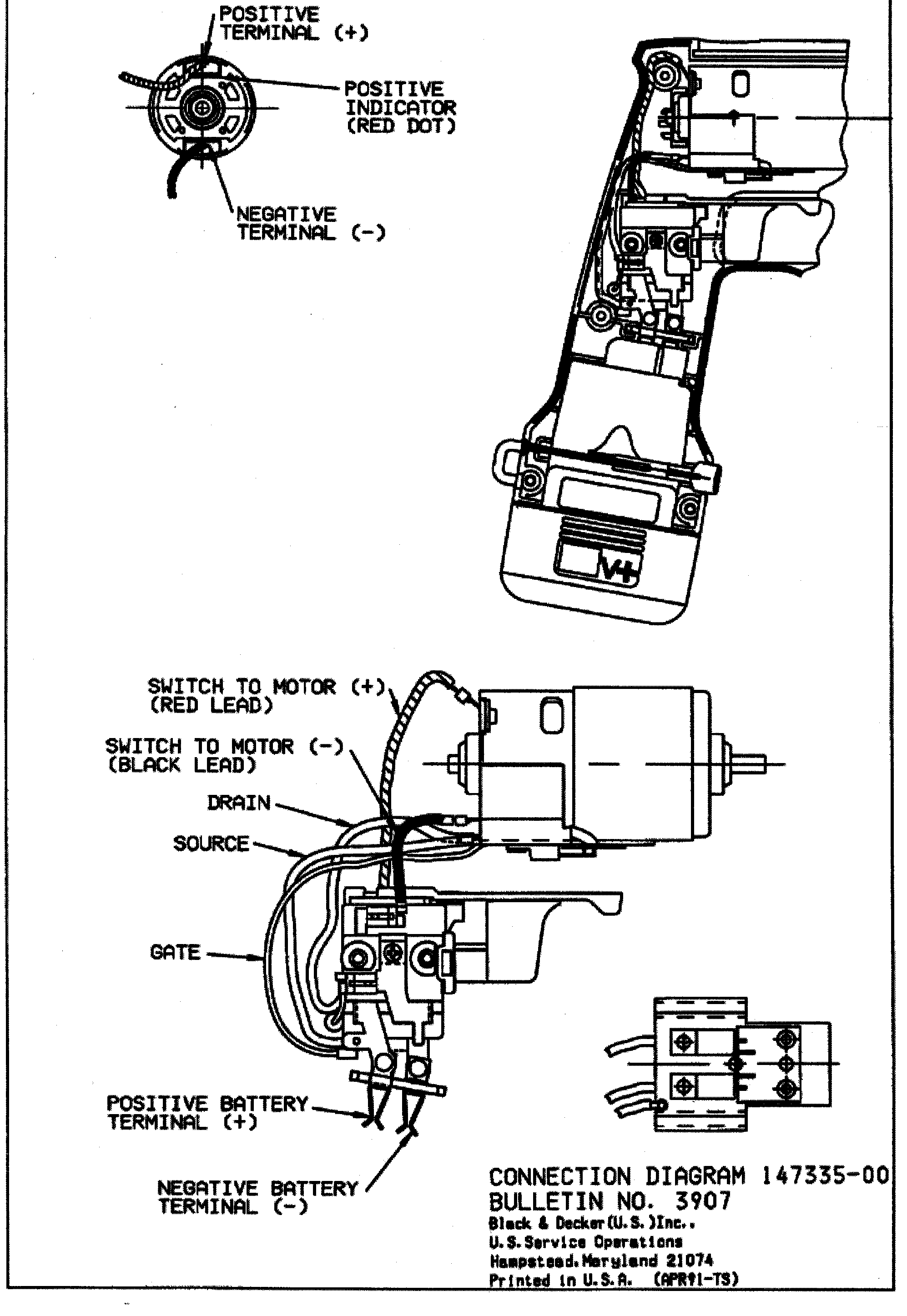

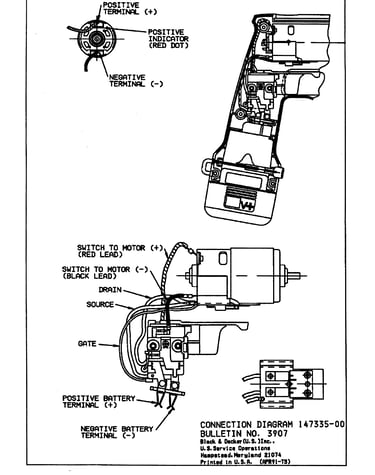

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Craftsman Pinion 148579-00
#35

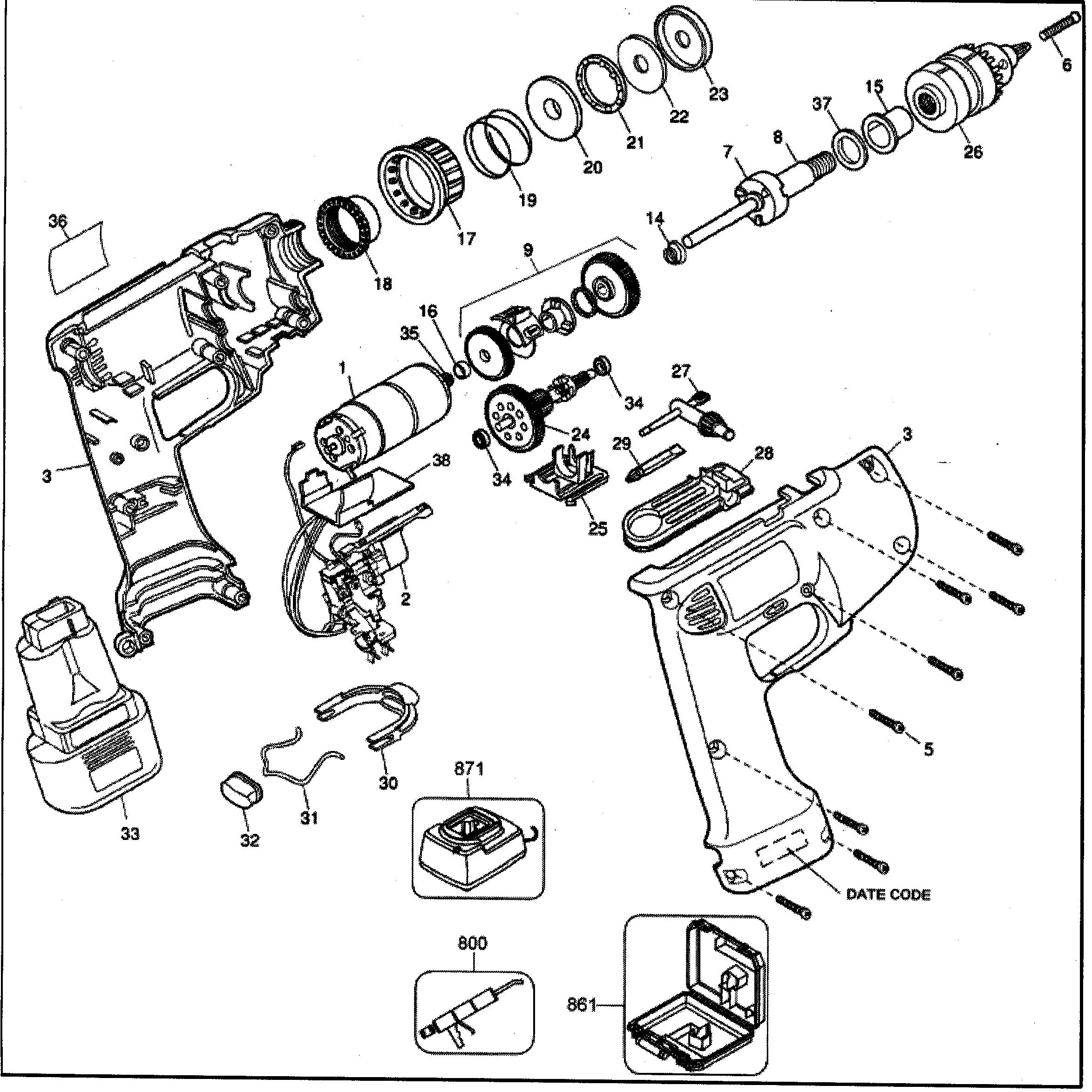

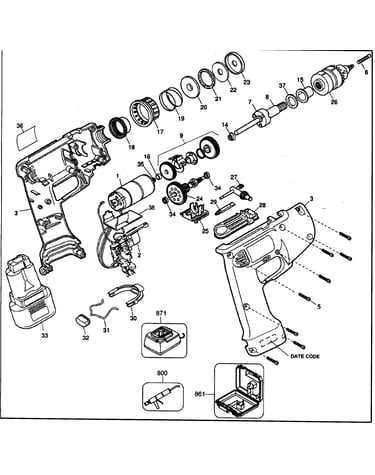

Drill diagram

Craftsman pinion

Part #148579-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 144501-00
#31

Drill diagram

Spring

Part #144501-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Washer 156155-00
#22

Drill diagram

Dewalt washer

Part #156155-00

The manufacturer no longer makes this part, and there's no substitute part

Scrwdrvbit 607918-41
#29

Drill diagram

Scrwdrvbit

Part #607918-41

The manufacturer no longer makes this part, and there's no substitute part

Bearing 330003-40
#34

Drill diagram

Bearing

Part #330003-40

The manufacturer no longer makes this part, and there's no substitute part

Slider 146992-01
#25

Drill diagram

Slider

Part #146992-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 330013-04
Screw

Part #330013-04

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 314738-00
#27

Drill diagram

Chuck key

Part #314738-00

The manufacturer no longer makes this part, and there's no substitute part

Switch 380371-00
#2

Drill diagram

Switch

Part #380371-00

The manufacturer no longer makes this part, and there's no substitute part

Seal Cover 148169-00
#23

Drill diagram

Seal cover

Part #148169-00

The manufacturer no longer makes this part, and there's no substitute part
