Model # 143590532 Official Craftsman rewind starter

Here are the diagrams and repair parts for Official Craftsman 143590532 rewind starter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Starter Handle 590452
#7

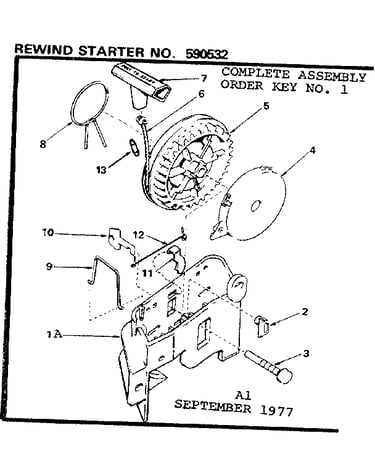

Rewind starter diagram

Starter handle

Part #590452

Replaced by #590701

?
Manufacturer substitution
This part replaces 590452. Substitute parts can look different from the original.
This item is not returnable
$7.80 |
11% OFF Phone Price : $8.80
In Stock
Tractor Accessories Lawn & Garden Equipment Engine Intake Valve Spring 590532
#1

Rewind starter diagram

Tractor accessories lawn & garden equipment engine intake valve spring

Part #590532

$77.27
In Stock
Tractor Accessories Brake 590554
#8

Rewind starter diagram

Tractor accessories brake

Part #590554

This item is not returnable
$4.14
In Stock
Lauson Pin 590525
#3

Rewind starter diagram

Lauson pin

Part #590525

This item is not returnable
$2.16
In Stock
Tractor Accessories Spring 590534
#12

Rewind starter diagram

Tractor accessories spring

Part #590534

This item is not returnable
$2.16
In Stock
Lauson Key 590530
#10

Rewind starter diagram

Lauson key

Part #590530

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#6

Rewind starter diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Rope Stop 34985
#13

Rewind starter diagram

Rope stop

Part #34985

Replaced by #36412

?
Manufacturer substitution
This part replaces 34985. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spring 590526
#4

Rewind starter diagram

Spring

Part #590526

The manufacturer no longer makes this part, and there's no substitute part

Pulley 590522
#5

Rewind starter diagram

Pulley

Part #590522

The manufacturer no longer makes this part, and there's no substitute part
