Model # 143171032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143171032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Screw 28820
#90

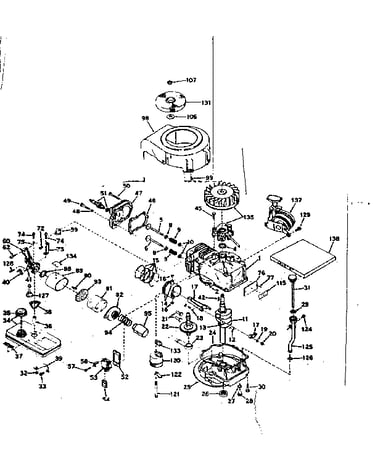

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#128

Basic engine diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Screw 650272
#62

Basic engine diagram

Screw

Part #650272

The manufacturer no longer makes this part, and there's no substitute part

Spring 30551
#2

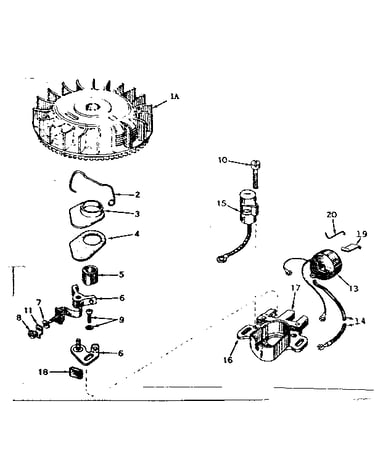

Magneto no. 610716 diagram

Spring

Part #30551

The manufacturer no longer makes this part, and there's no substitute part

Pulley 590434
#6

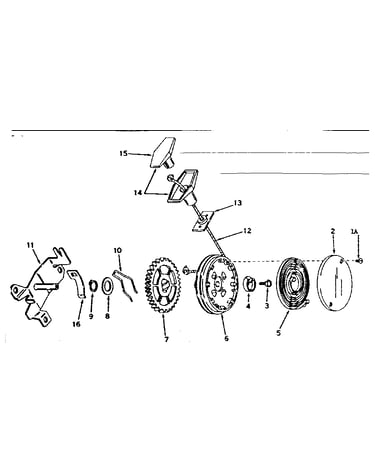

Side mount rewind starter no. 590429 diagram

Pulley

Part #590434

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 27565
#15

Basic engine diagram

Ring set

Part #27565

The manufacturer no longer makes this part, and there's no substitute part

Cover 590431
#2

Side mount rewind starter no. 590429 diagram

Cover

Part #590431

The manufacturer no longer makes this part, and there's no substitute part

/start Rope 590440
#12

Side mount rewind starter no. 590429 diagram

/start rope

Part #590440

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#54

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part
