Model # U8143-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U8143-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

Medallion 51661020
#2

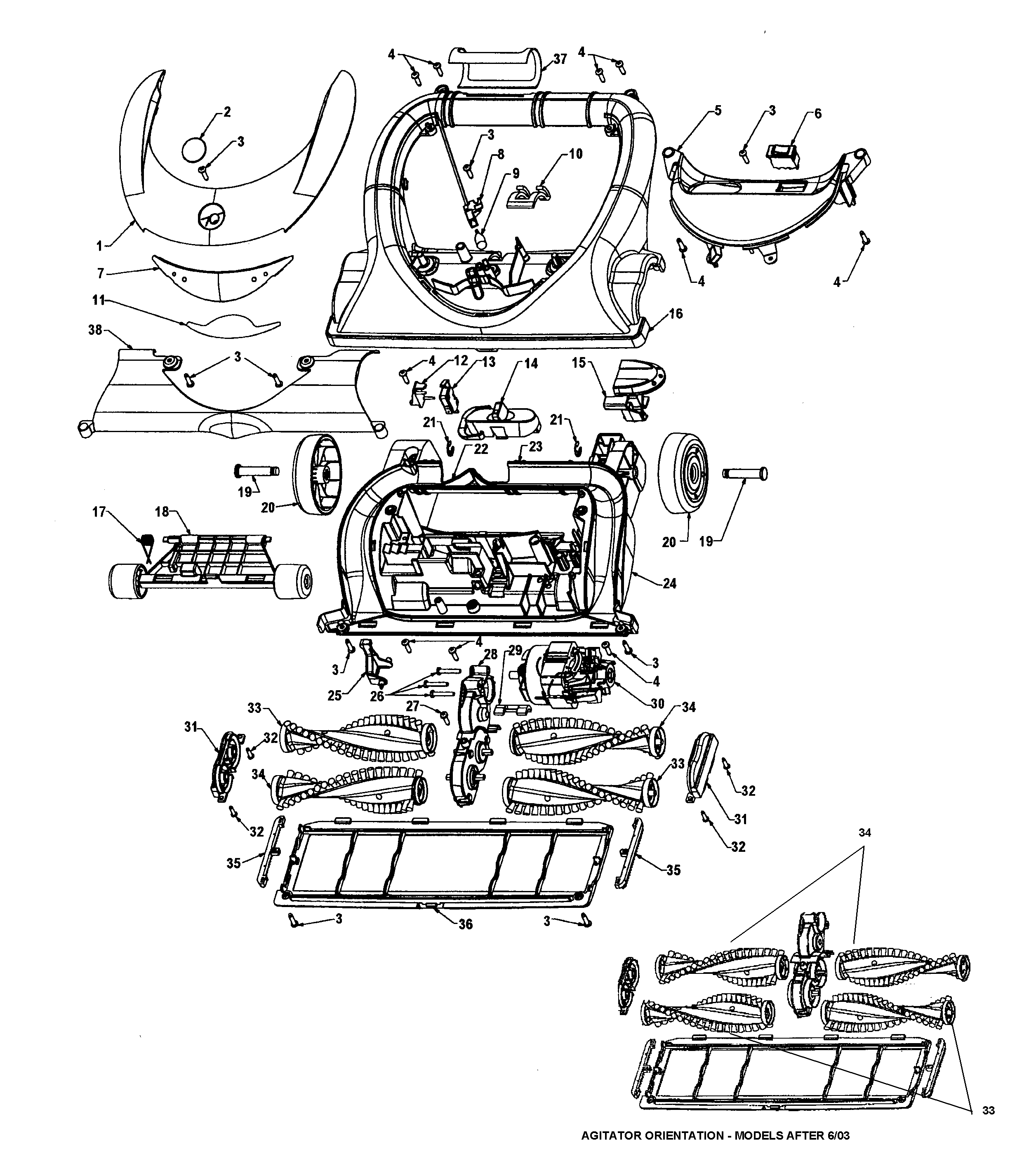

Agitator, mainbody, hood diagram

Medallion

Part #51661020

The manufacturer no longer makes this part, and there's no substitute part

Foam 34163016
#60

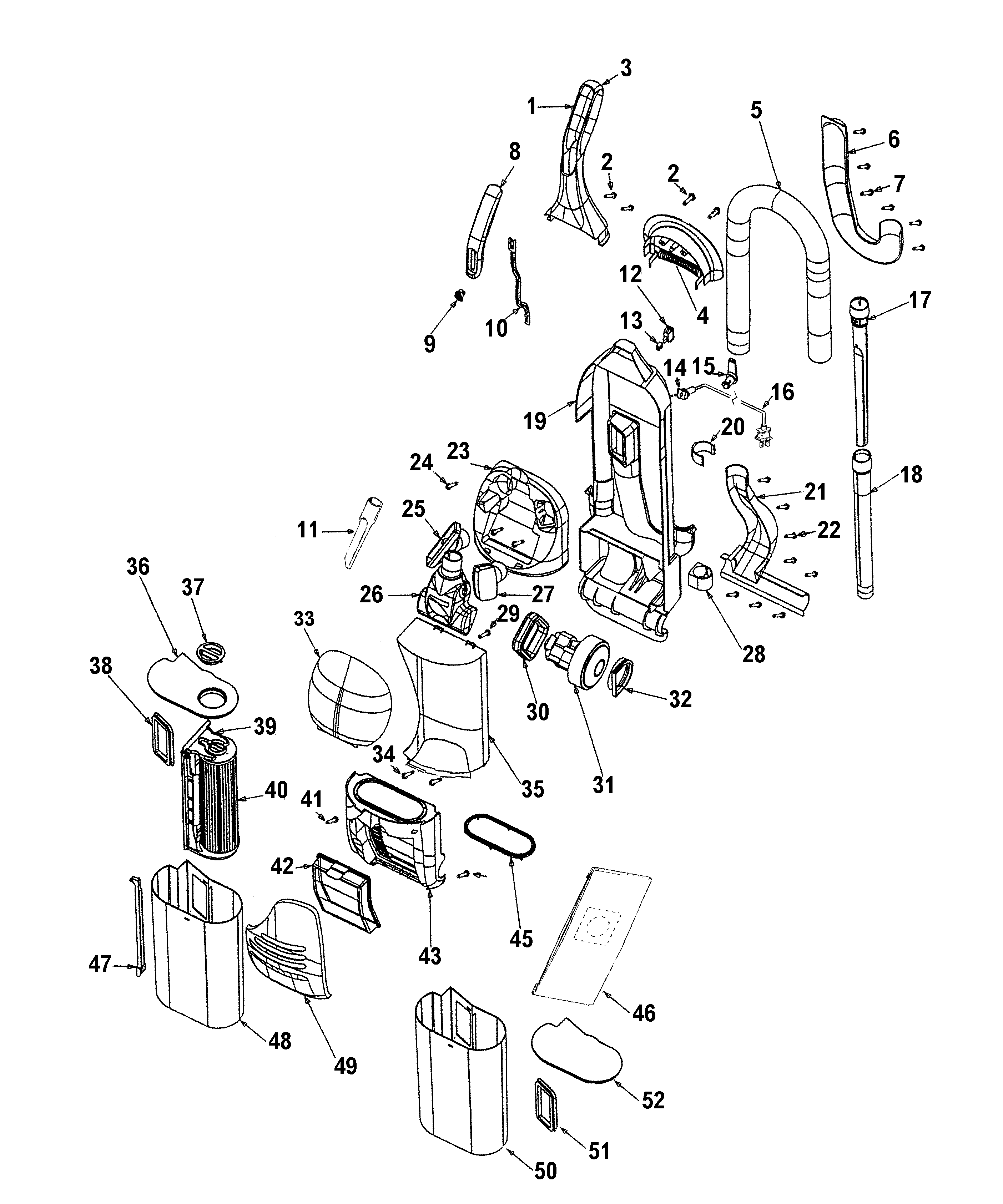

Motor, turbinehandtool, handle diagram

Foam

Part #34163016

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 37196171
#43H

Motor, turbinehandtool, handle diagram

Motor cover

Part #37196171

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#24

Motor, turbinehandtool, handle diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#17

Agitator, mainbody, hood diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Toolholder 36433183
#23I

Motor, turbinehandtool, handle diagram

Toolholder

Part #36433183

The manufacturer no longer makes this part, and there's no substitute part

Final Filter 38769017
#49

Motor, turbinehandtool, handle diagram

Final filter

Part #38769017

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Fr Panel 37249033
#35F

Motor, turbinehandtool, handle diagram

Fr panel

Part #37249033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#3

Motor, turbinehandtool, handle diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part
