Goodman
Central Air Conditioner

Model # GSC130481A Official Goodman split system air conditioner

Here are the diagrams and repair parts for Official Goodman GSC130481A split system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Grommet-co B1339533
#61

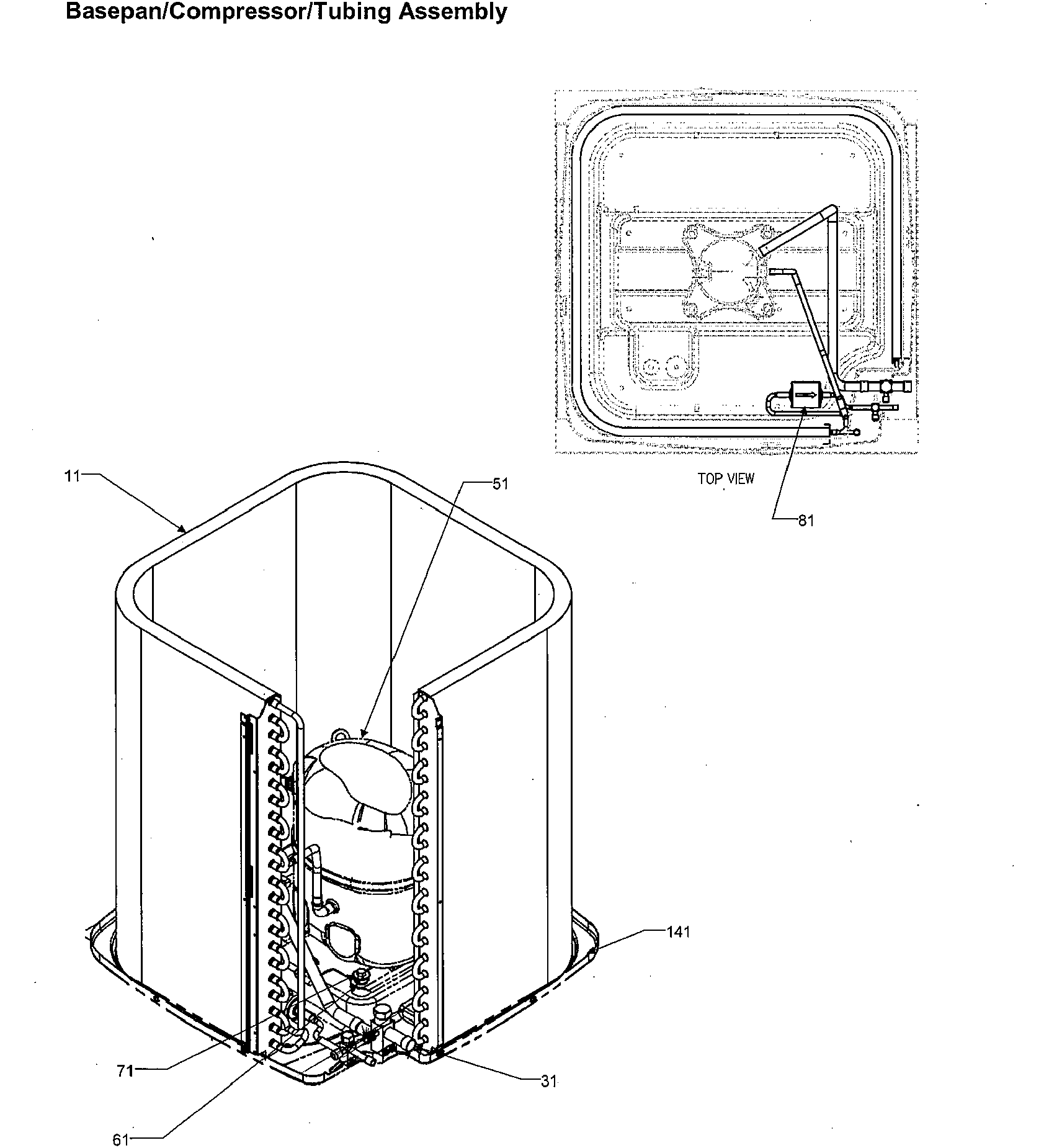

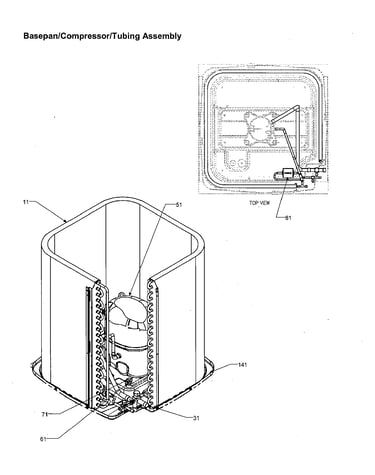

Compressor diagram

Grommet-co

Part #B1339533

$7.74
In Stock
Goodman Screw 10x1/2-b-bz B1393532
#NI

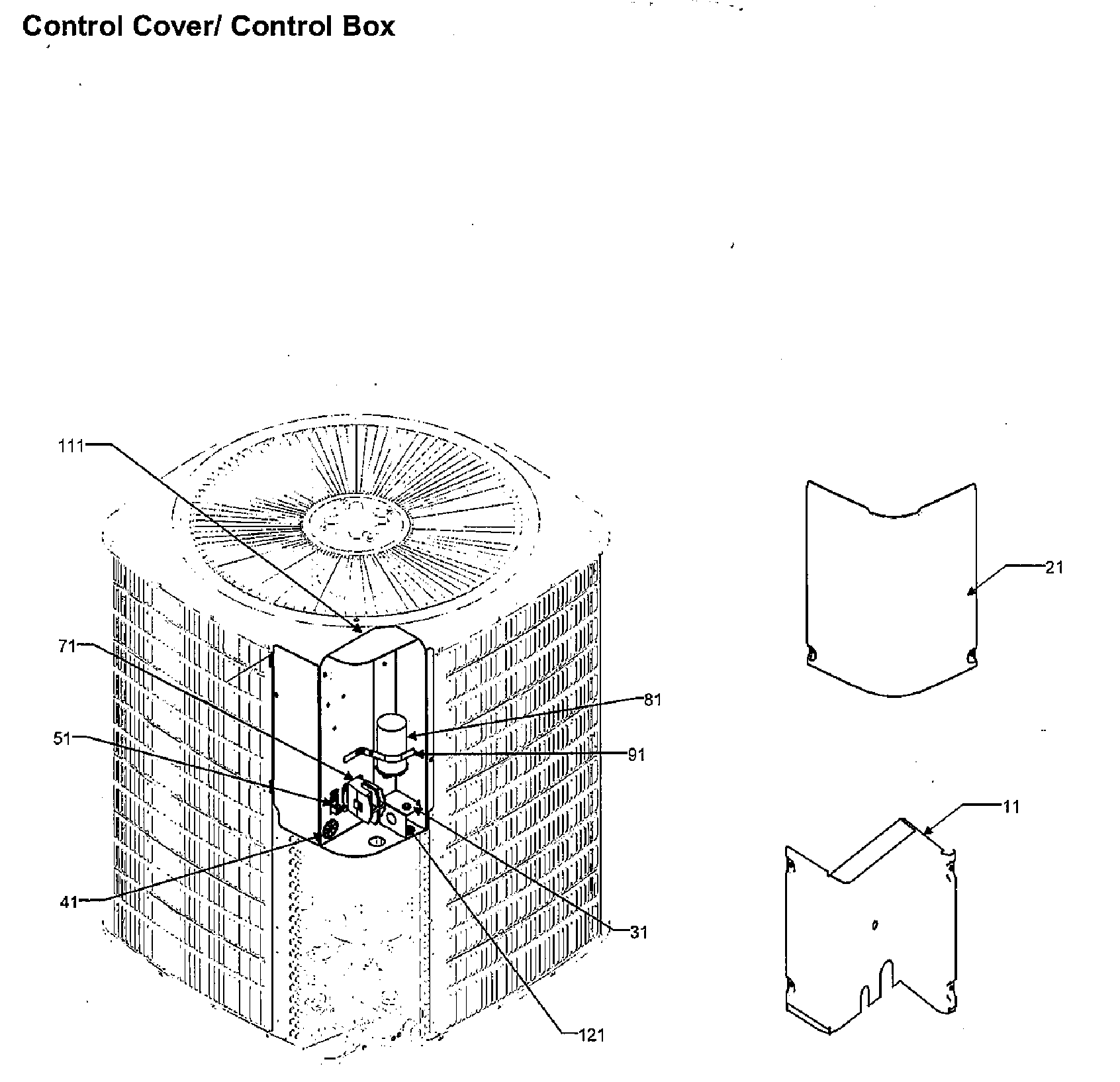

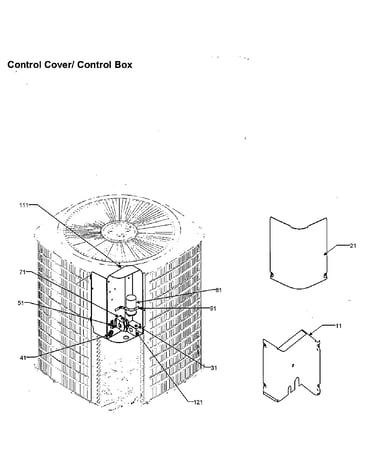

Control panel diagram

Goodman screw 10x1/2-b-bz

Part #B1393532

This item is not returnable
$2.16
In Stock
Goodman Lug-ground Small (4t) B1378533
#51

Control panel diagram

Goodman lug-ground small (4t)

Part #B1378533

This item is not returnable
$3.69
In Stock
Screw M0221641
#71

Compressor diagram

Screw

Part #M0221641

$7.74
In Stock
Wire Blue W18204000160008
#NI

Control panel diagram

Wire blue

Part #W18204000160008

The manufacturer no longer makes this part, and there's no substitute part

Barrier Low Voltage 4400039
#121

Control panel diagram

Barrier low voltage

Part #4400039

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 4400131PDG
#111

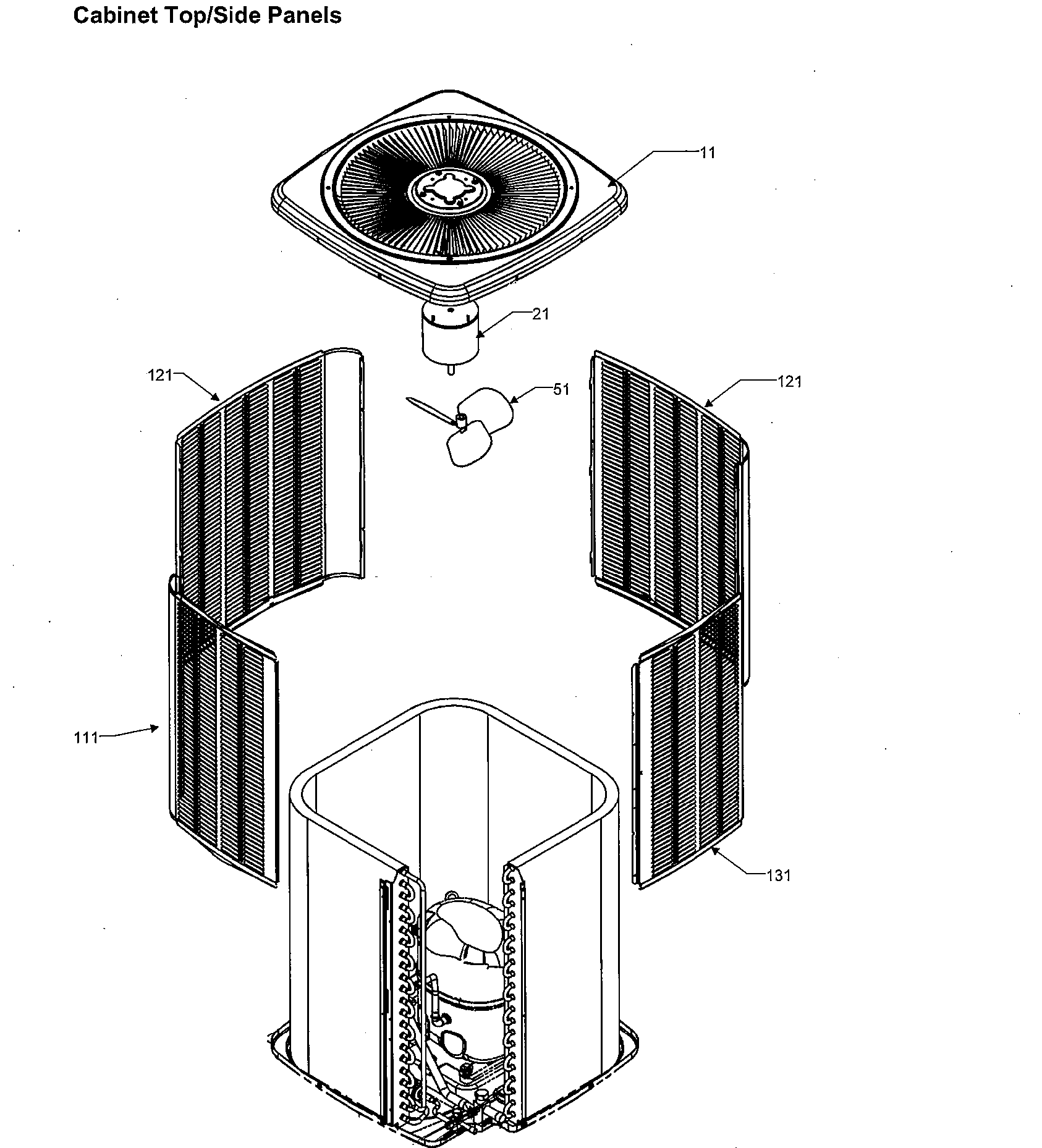

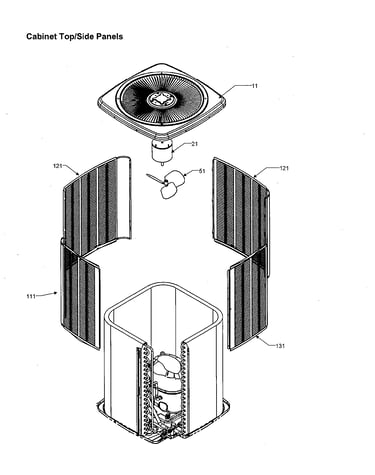

Cabinet diagram

Side panel

Part #4400131PDG

The manufacturer no longer makes this part, and there's no substitute part

Ring 0161R00006P
#NI

Cabinet diagram

Ring

Part #0161R00006P

The manufacturer no longer makes this part, and there's no substitute part

Valve 0151R00003P
#31

Compressor diagram

Valve

Part #0151R00003P

The manufacturer no longer makes this part, and there's no substitute part

Capacitor- Dual-section- 55/5/370 B94575900
#81

Control panel diagram

Capacitor- dual-section- 55/5/370

Part #B94575900

The manufacturer no longer makes this part, and there's no substitute part
