Eureka
Upright Vacuum

Model # 2270AT Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 2270AT upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Power Cord 61637
#2

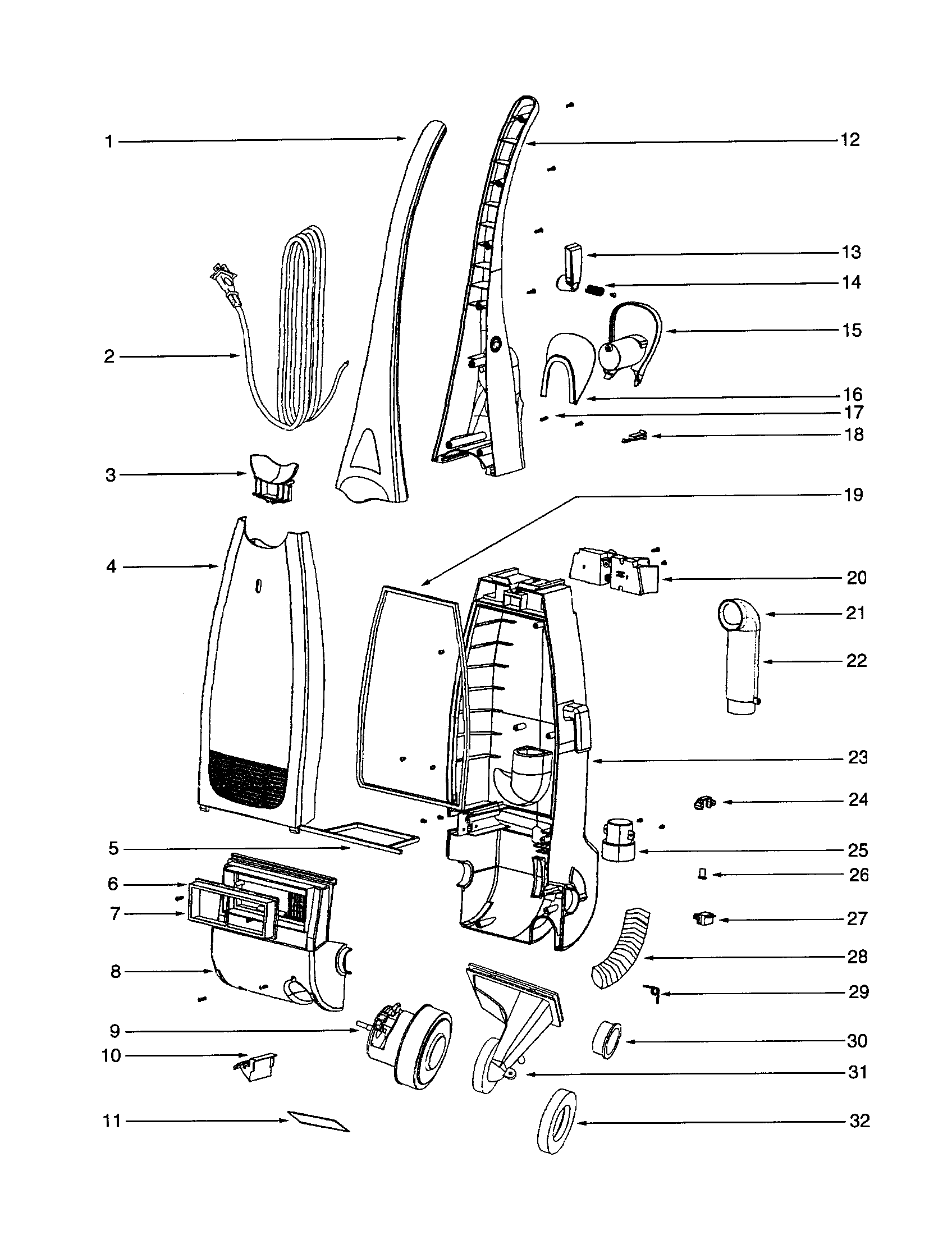

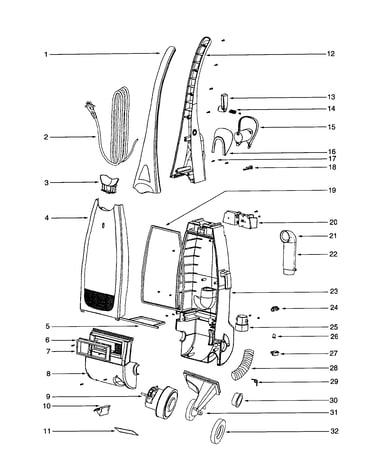

Handle diagram

Power cord

Part #61637

The manufacturer no longer makes this part, and there's no substitute part

Connector 61648
#22

Handle diagram

Connector

Part #61648

The manufacturer no longer makes this part, and there's no substitute part

Wheel 61623
#9

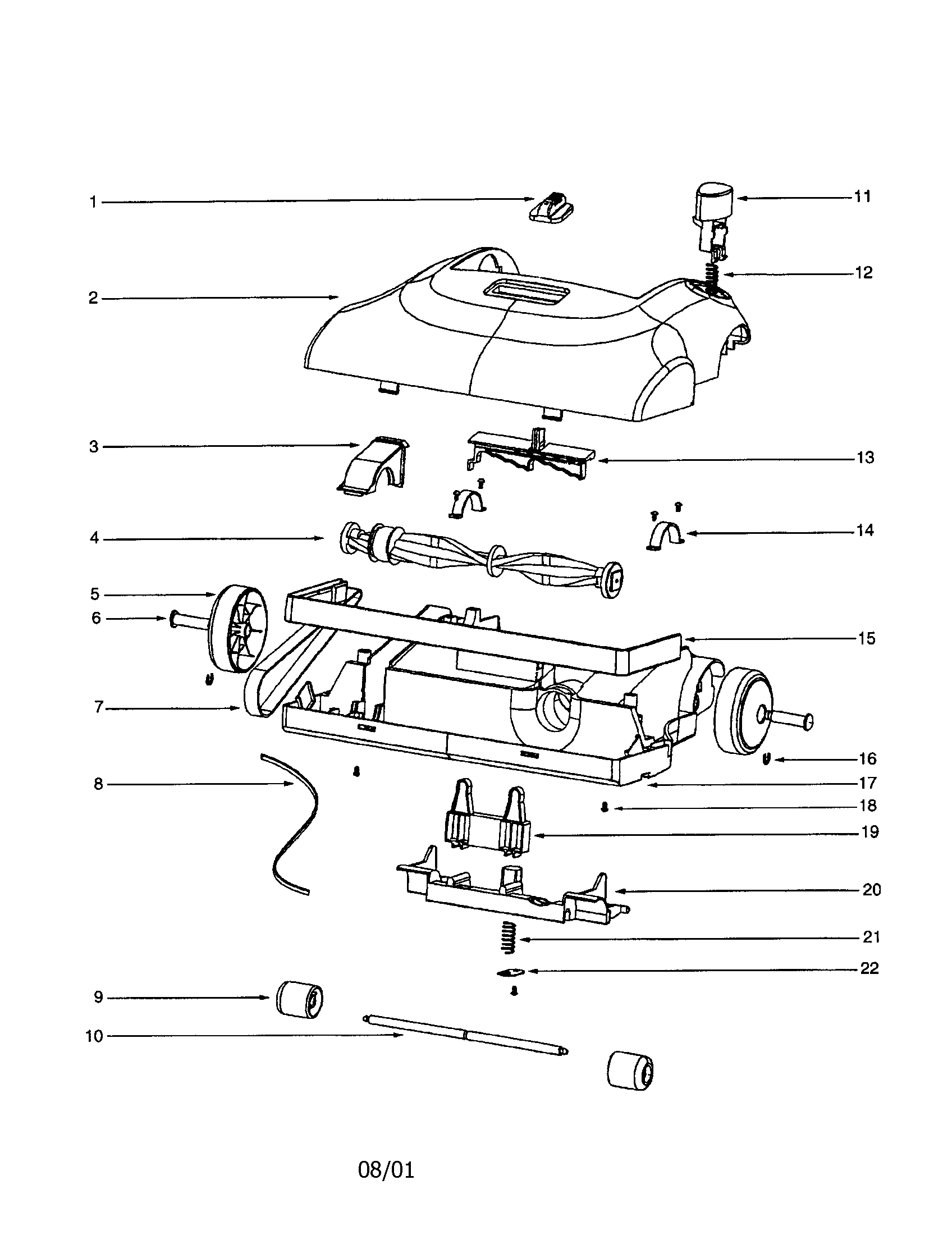

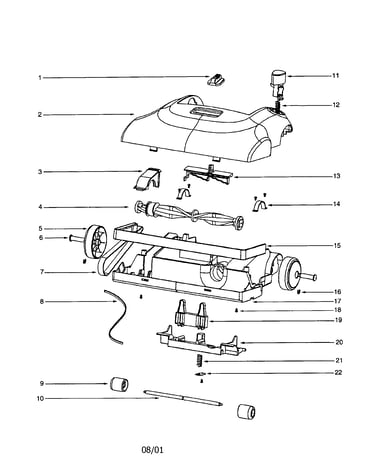

Hood diagram

Wheel

Part #61623

The manufacturer no longer makes this part, and there's no substitute part

Gasket 61654
#19

Handle diagram

Gasket

Part #61654

The manufacturer no longer makes this part, and there's no substitute part

Gasket 61646
#5

Handle diagram

Gasket

Part #61646

The manufacturer no longer makes this part, and there's no substitute part

Screw-5-pk 61799
#17

Handle diagram

Screw-5-pk

Part #61799

The manufacturer no longer makes this part, and there's no substitute part

Gasket 61622
#8

Hood diagram

Gasket

Part #61622

The manufacturer no longer makes this part, and there's no substitute part

Eureka Vacuum Bag, Type J, 3-pack 61515
#3

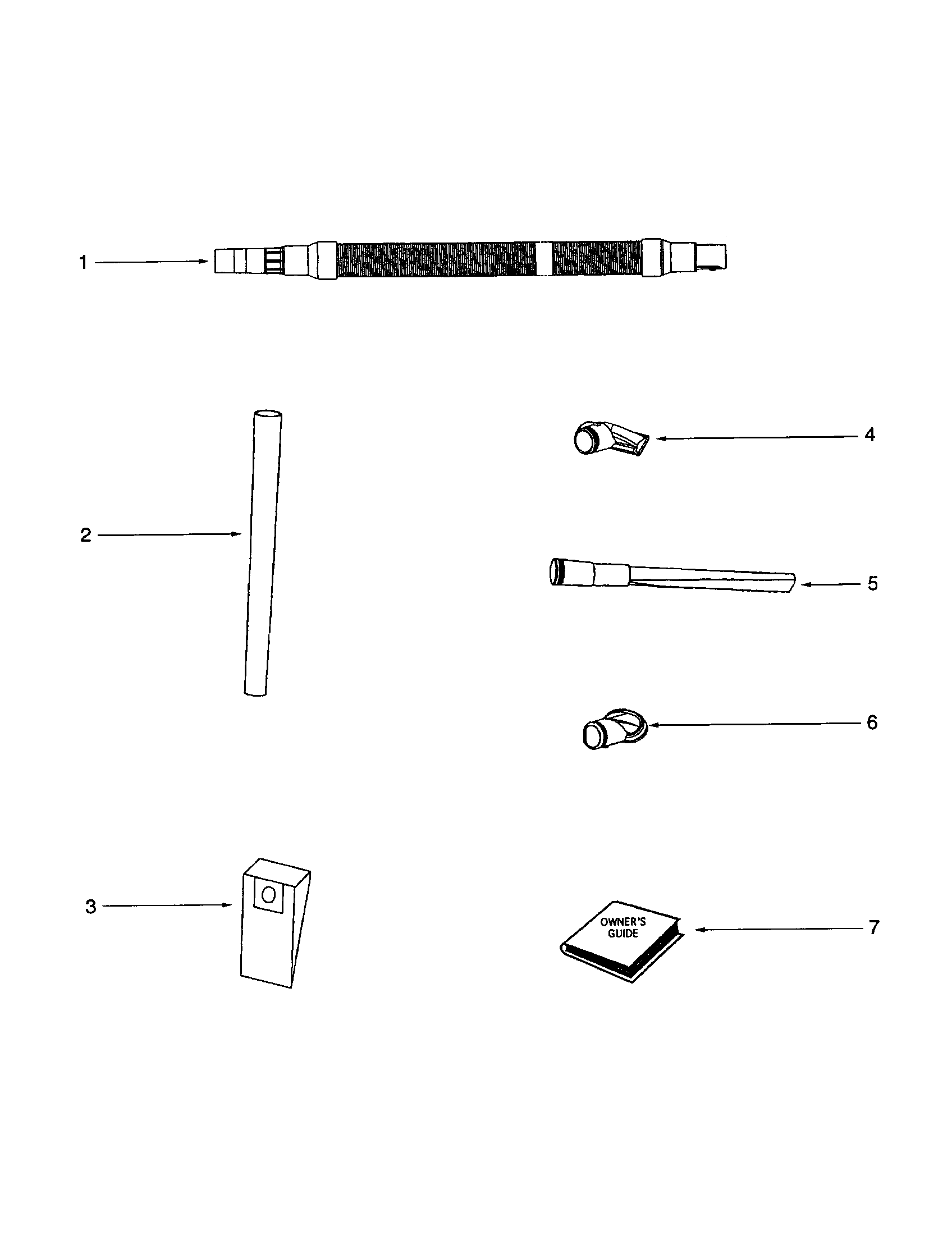

Hose diagram

Eureka vacuum bag, type j, 3-pack

Part #61515

The manufacturer no longer makes this part, and there's no substitute part

Switch 61631
#1

Hood diagram

Switch

Part #61631

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 5-pack 61803
#18

Hood diagram

Vacuum screw, 5-pack

Part #61803

The manufacturer no longer makes this part, and there's no substitute part
