Frigidaire
Countertop Microwave

Model # MC830L1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC830L1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Door Sheet 3200487
#1

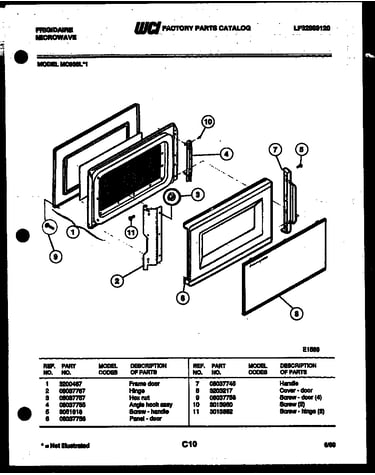

Door parts diagram

Door sheet

Part #3200487

$61.59
In Stock
Screw 3091100
#36

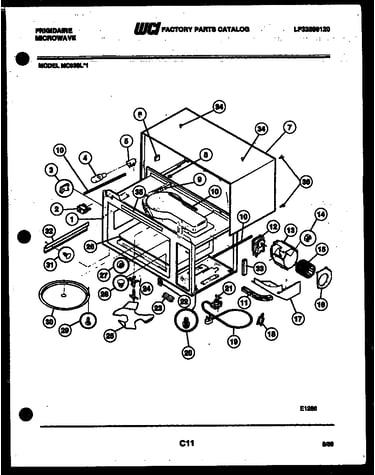

Body parts diagram

Screw

Part #3091100

Replaced by #5303273263

?
Manufacturer substitution
This part replaces 3091100. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Label 3018849
#35

Body parts diagram

Label

Part #3018849

Replaced by #5303018849

?
Manufacturer substitution
This part replaces 3018849. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Screw 3051818
#5

Door parts diagram

Screw

Part #3051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 3051818. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Magentron 08037620
#1

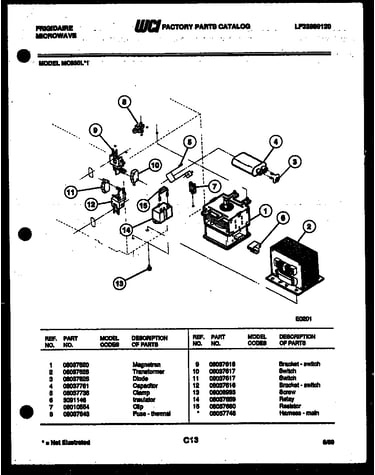

Power control diagram

Magentron

Part #08037620

The manufacturer no longer makes this part, and there's no substitute part

Wrapper - Stone Gray 3201147
#7

Body parts diagram

Wrapper - stone gray

Part #3201147

The manufacturer no longer makes this part, and there's no substitute part

Duct - Air (foam) 08037722
#9

Body parts diagram

Duct - air (foam)

Part #08037722

The manufacturer no longer makes this part, and there's no substitute part

Cord - Power 08037629
#19

Body parts diagram

Cord - power

Part #08037629

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 08037750
#6

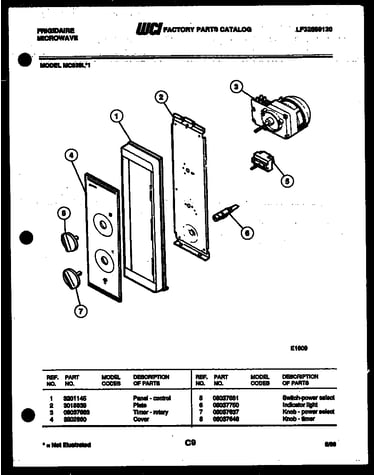

Control panel diagram

Indicator light

Part #08037750

The manufacturer no longer makes this part, and there's no substitute part

Plate 3018839
#2

Control panel diagram

Plate

Part #3018839

The manufacturer no longer makes this part, and there's no substitute part
