Model # GLMB186KS01 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire GLMB186KS01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

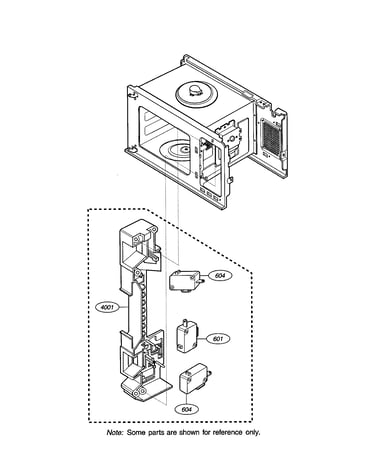

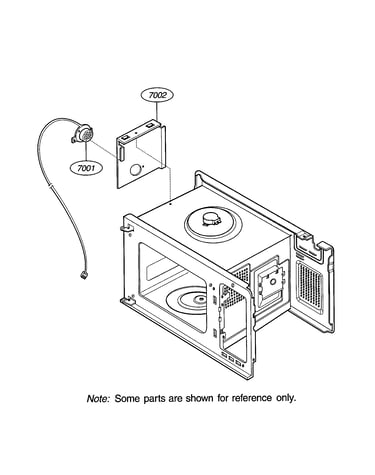

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Rivet 5304423449
#1474

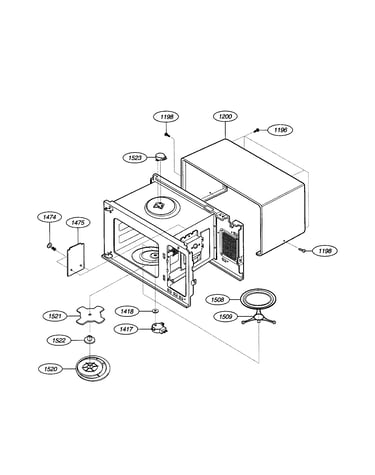

Oven cavity diagram

Rivet

Part #5304423449

Replaced by #5304423449

?
Manufacturer substitution
This part replaces 5304423449. Substitute parts can look different from the original.
In Stock
Panel-outs 5304423421
#1827B

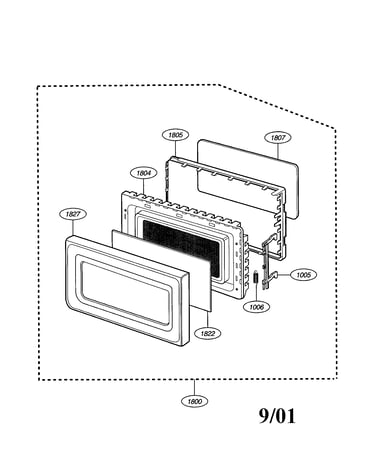

Door diagram

Panel-outs

Part #5304423421

Replaced by #5304423421

?
Manufacturer substitution
This part replaces 5304423421. Substitute parts can look different from the original.
In Stock
Control Panel 5304423422
#923

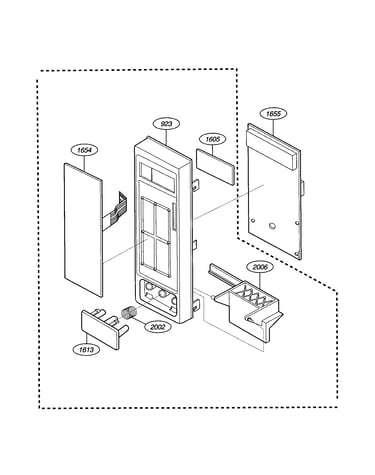

Control panel diagram

Control panel

Part #5304423422

Replaced by #5304423422

?
Manufacturer substitution
This part replaces 5304423422. Substitute parts can look different from the original.
In Stock
Cover 5304423496
#1203

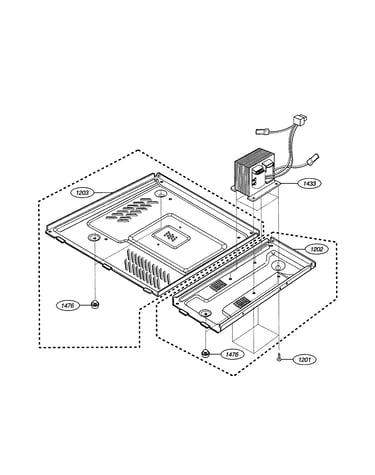

Base plate diagram

Cover

Part #5304423496

Replaced by #5304423496

?
Manufacturer substitution
This part replaces 5304423496. Substitute parts can look different from the original.
In Stock
Wrapper 5304423445
#1200

Oven cavity diagram

Wrapper

Part #5304423445

Replaced by #5304423445

?
Manufacturer substitution
This part replaces 5304423445. Substitute parts can look different from the original.
In Stock
Motor 5304423456
#1523

Oven cavity diagram

Motor

Part #5304423456

Replaced by #5304423456

?
Manufacturer substitution
This part replaces 5304423456. Substitute parts can look different from the original.
In Stock
Air Duct 5304423482
#1425

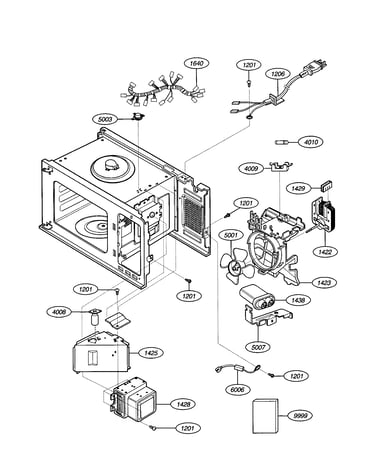

Interior diagram

Air duct

Part #5304423482

Replaced by #5304423482

?
Manufacturer substitution
This part replaces 5304423482. Substitute parts can look different from the original.
In Stock
Complete Door 5304423408
#1800

Door diagram

Complete door

Part #5304423408

Replaced by #5304423408

?
Manufacturer substitution
This part replaces 5304423408. Substitute parts can look different from the original.
In Stock
Complete Door 5304423409
#1800A

Door diagram

Complete door

Part #5304423409

Replaced by #5304423409

?
Manufacturer substitution
This part replaces 5304423409. Substitute parts can look different from the original.
In Stock
Button 5304423426
#1613

Control panel diagram

Button

Part #5304423426

Replaced by #5304423426

?
Manufacturer substitution
This part replaces 5304423426. Substitute parts can look different from the original.
In Stock
