Model # 2581054180 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581054180 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Shelf 10724-37
#121

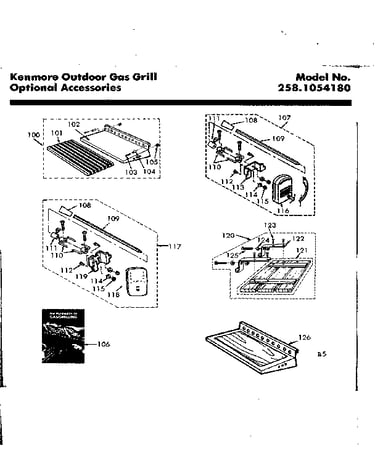

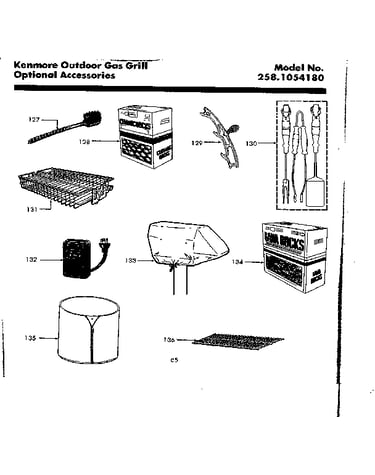

Optionalaccessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin STD560907
#8

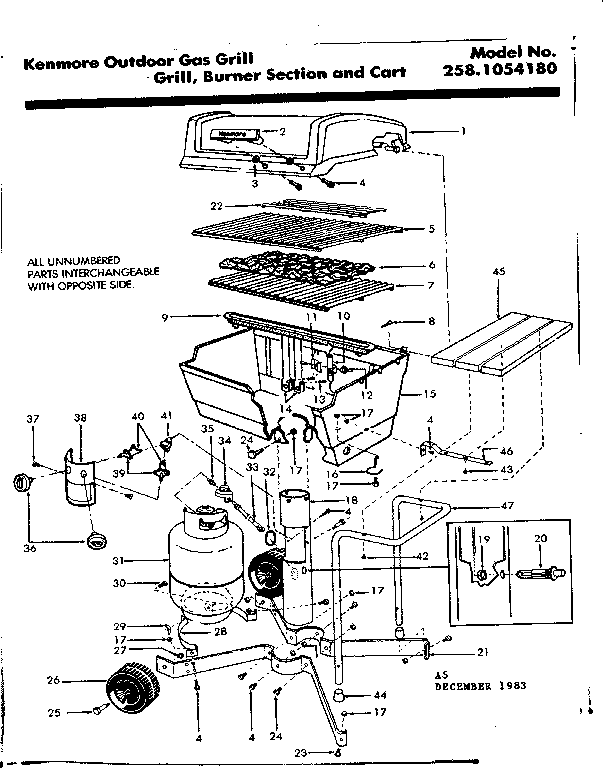

Grill burner section and cart diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10004-184
#126

Optionalaccessories diagram

Shelf

Part #10004-184

The manufacturer no longer makes this part, and there's no substitute part

Wood Handle 10338-74
#108

Optional accessories diagram

Wood handle

Part #10338-74

The manufacturer no longer makes this part, and there's no substitute part

Bracket 10164-74
#119

Optional accessories diagram

Bracket

Part #10164-74

The manufacturer no longer makes this part, and there's no substitute part

Screw STD510807
#112

Optional accessories diagram

Screw

Part #STD510807

The manufacturer no longer makes this part, and there's no substitute part

Knob 10472-32
#36

Grill burner section and cart diagram

Knob

Part #10472-32

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522510
#24

Grill burner section and cart diagram

Cap screw

Part #STD522510

The manufacturer no longer makes this part, and there's no substitute part

Cooking Grid 10225-48
#5

Grill burner section and cart diagram

Cooking grid

Part #10225-48

The manufacturer no longer makes this part, and there's no substitute part

Grill 10473-203
#1

Grill burner section and cart diagram

Grill

Part #10473-203

The manufacturer no longer makes this part, and there's no substitute part
