Model # HV10A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon HV10A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

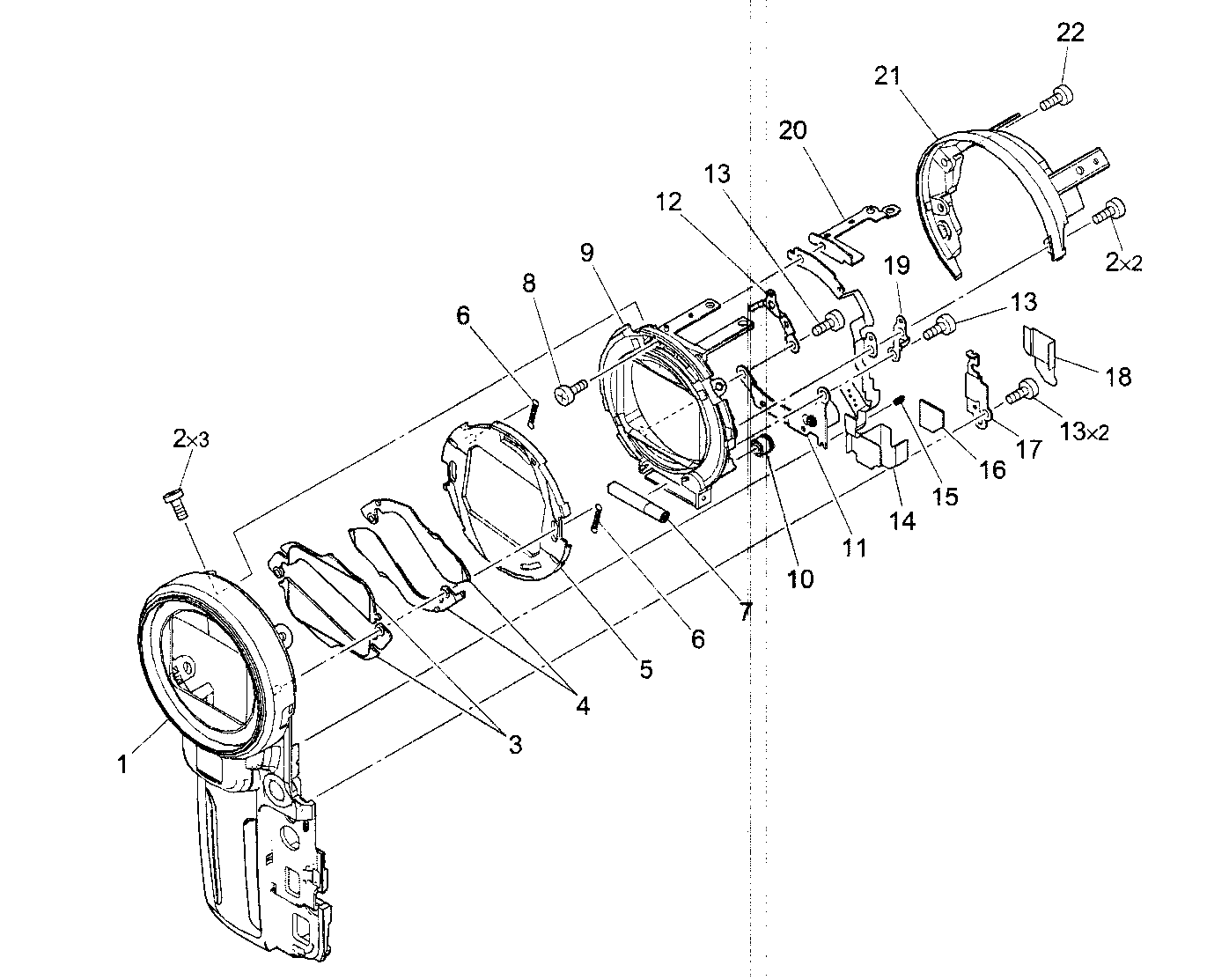

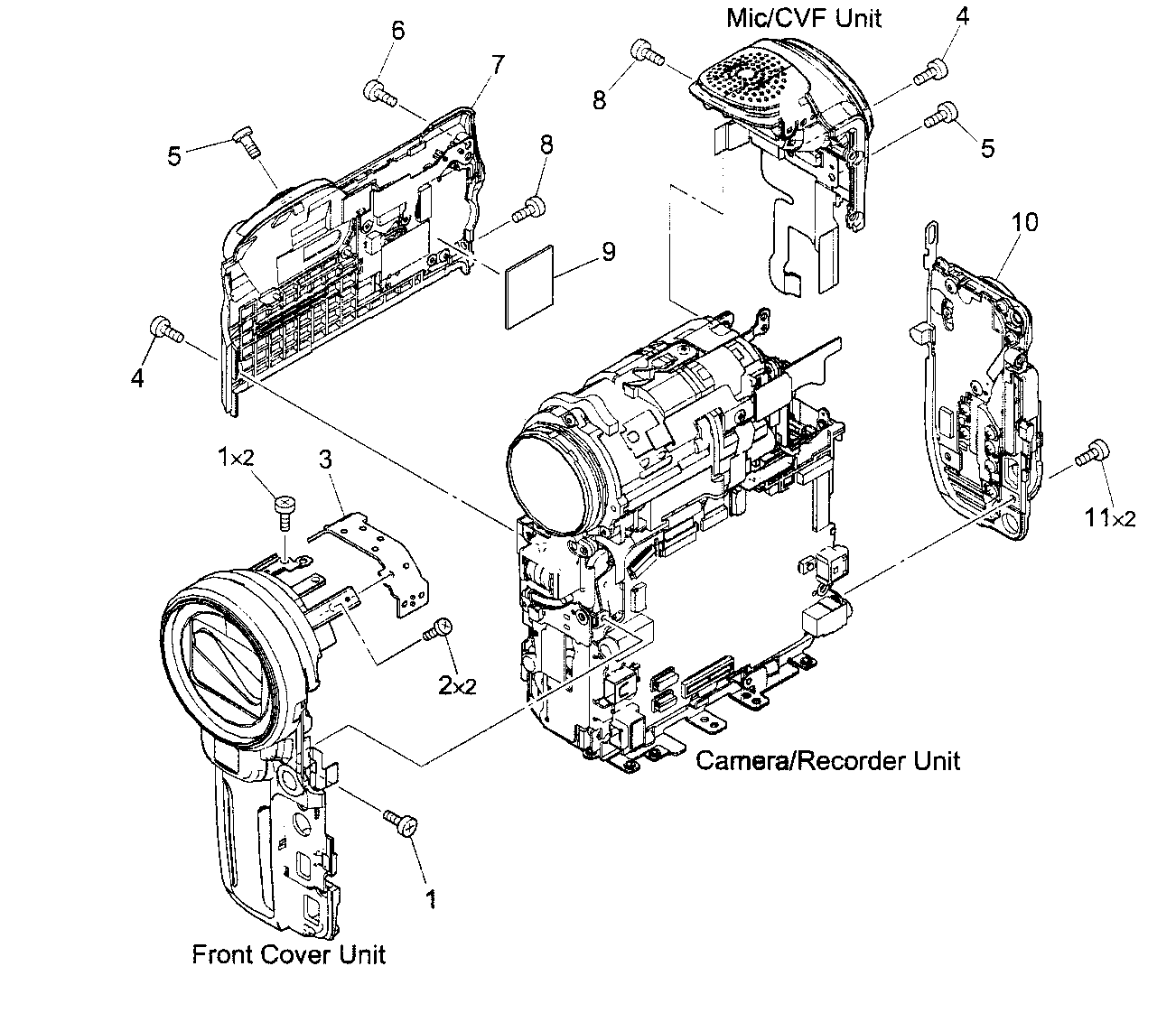

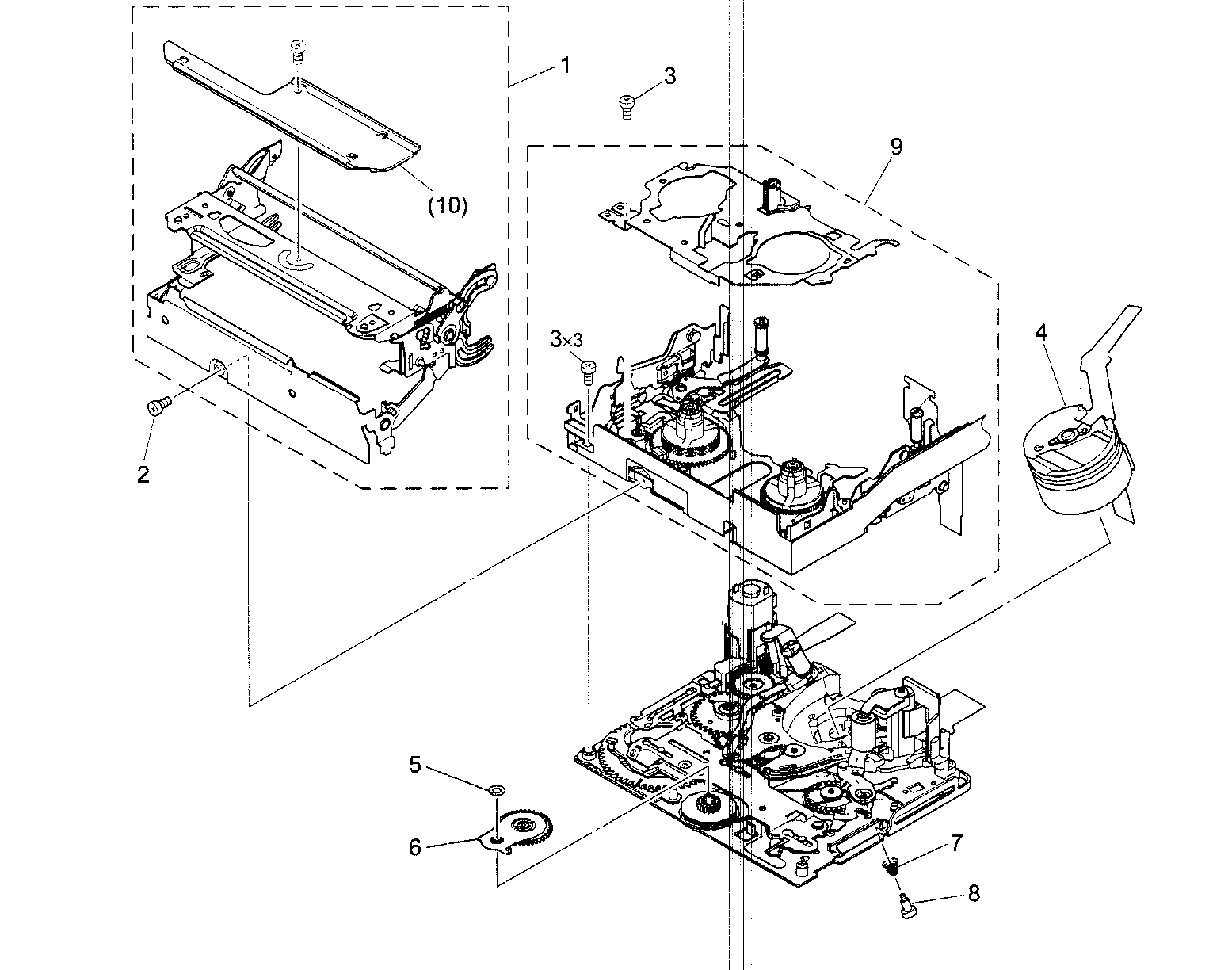

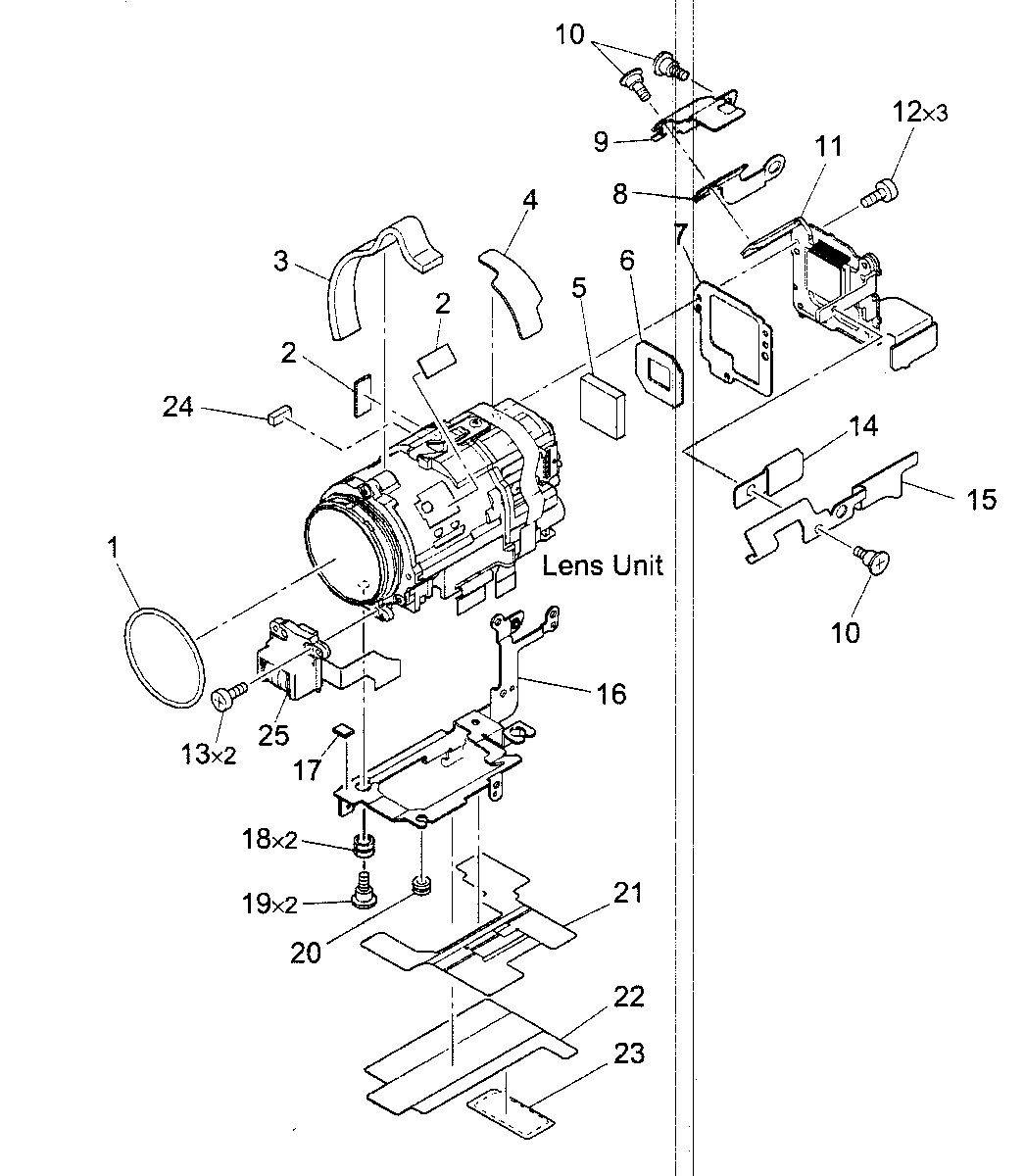

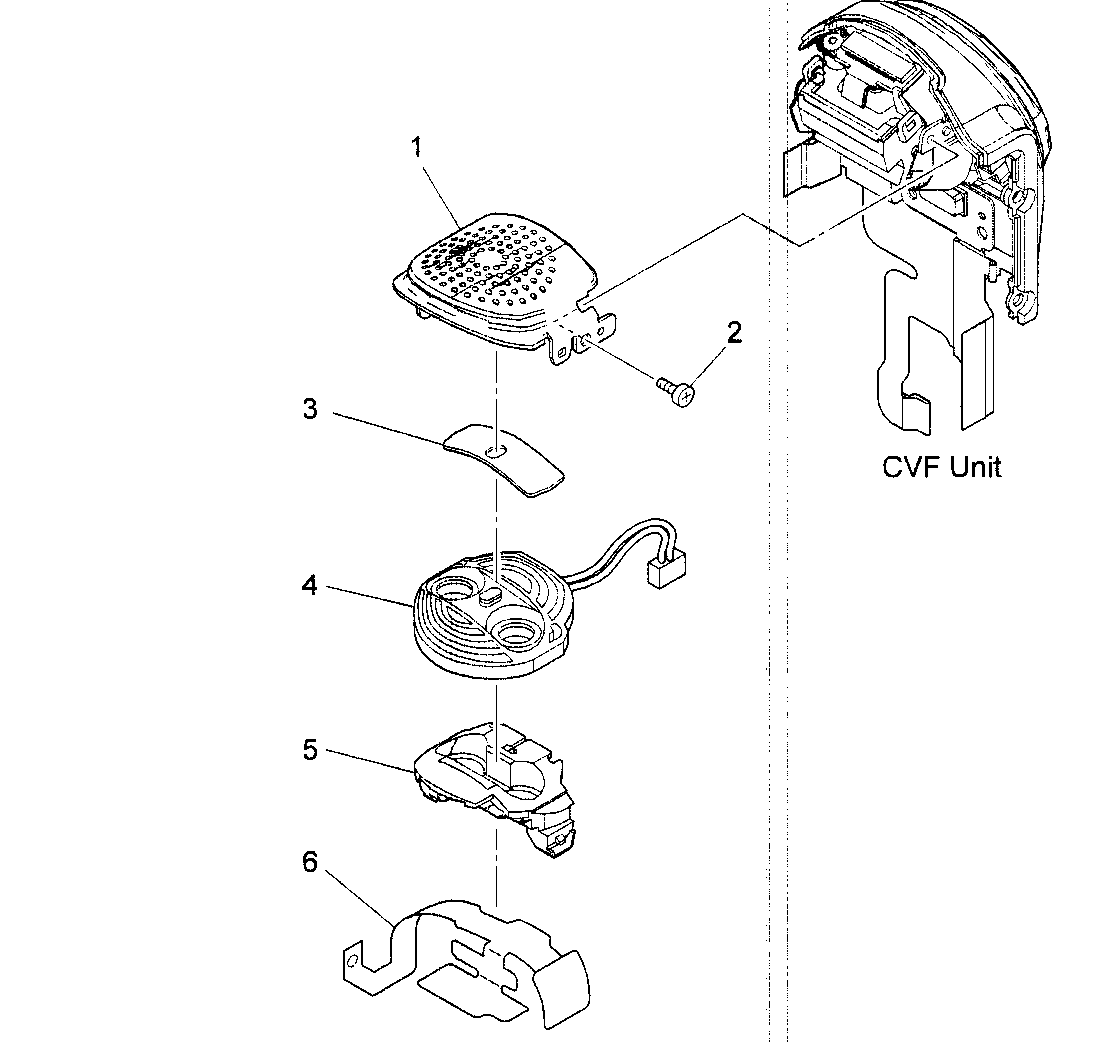

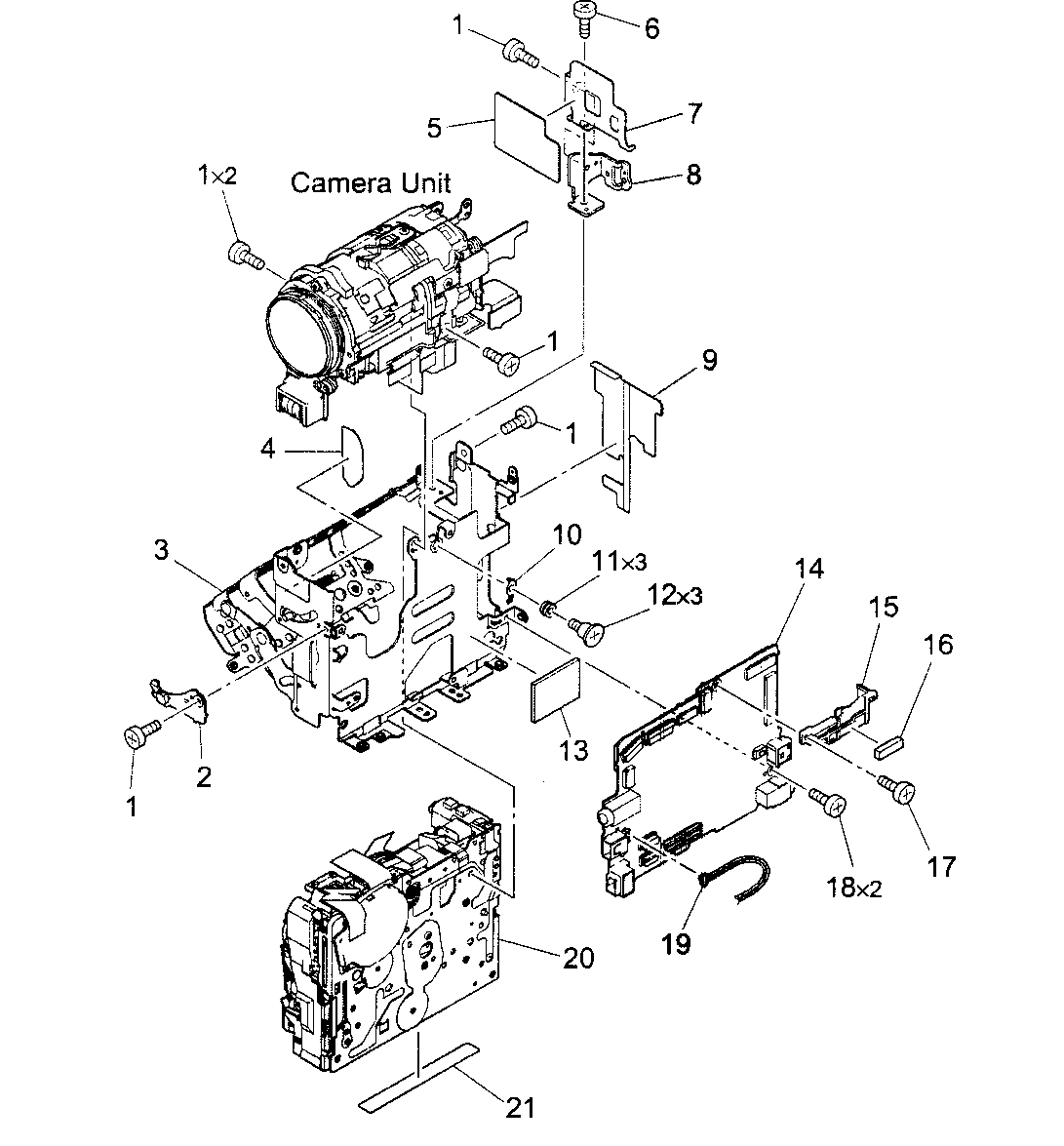

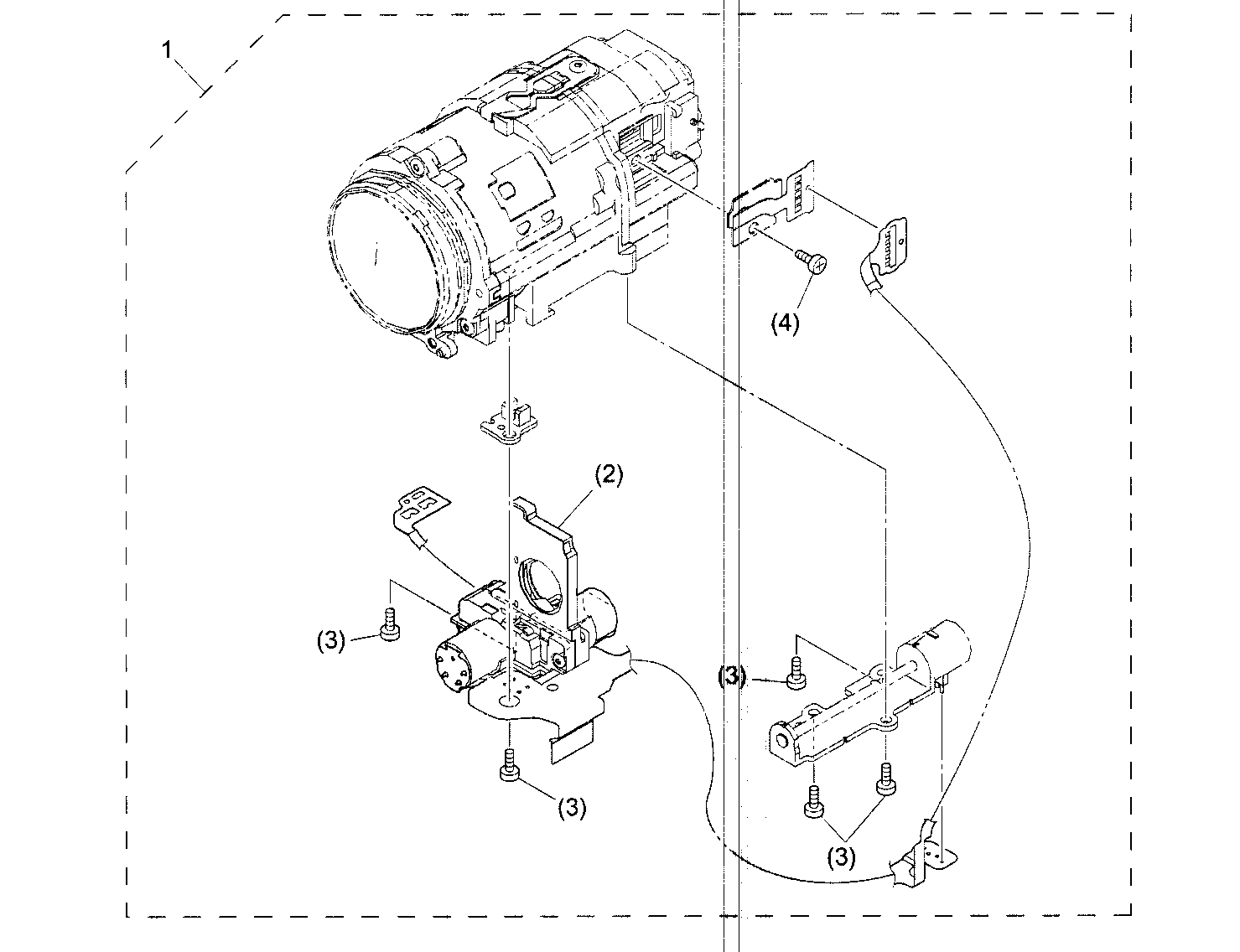

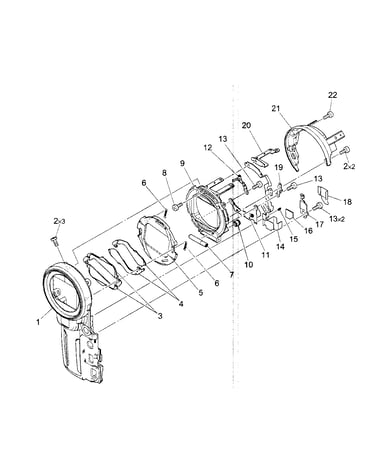

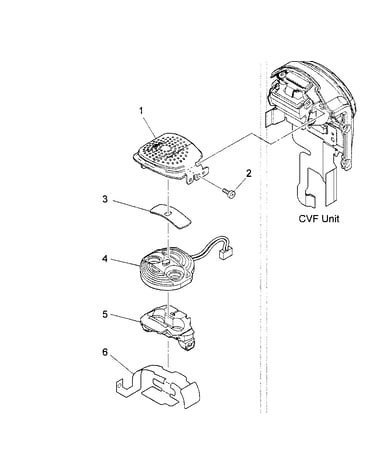

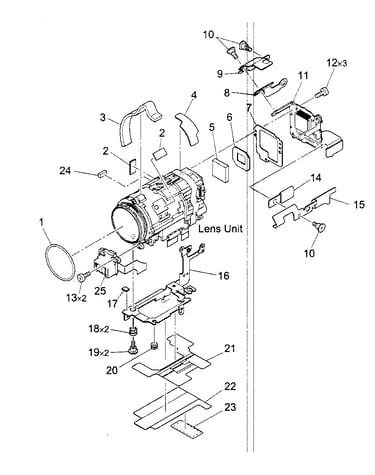

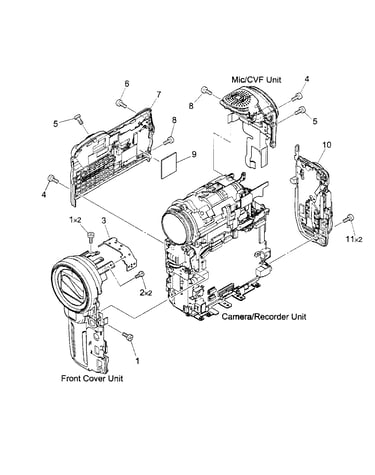

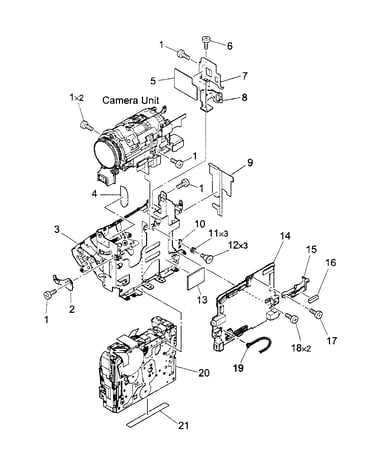

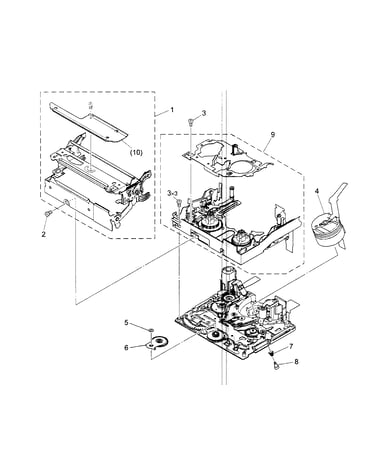

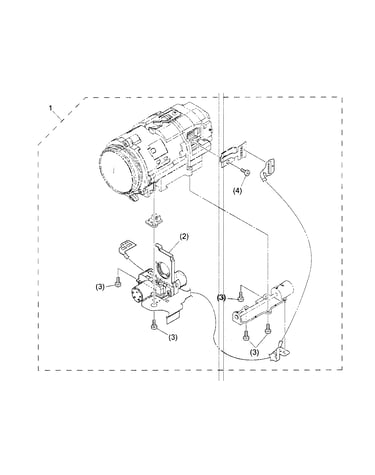

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Canon Lcd Cover DA3-5662-000
#18

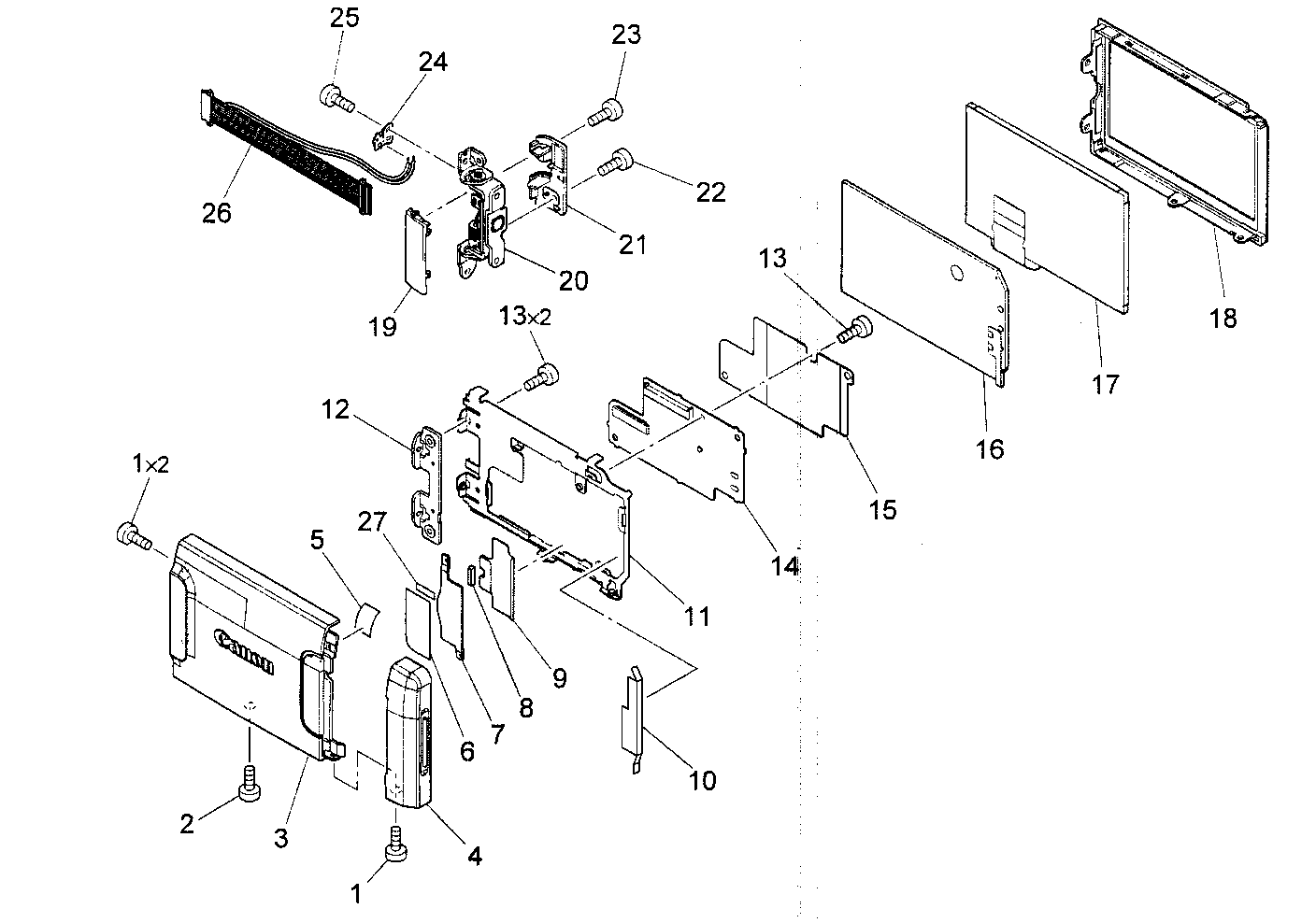

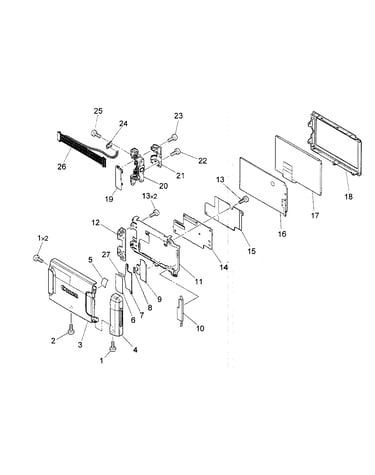

Lcd unit diagram

Canon lcd cover

Part #DA3-5662-000

The manufacturer no longer makes this part, and there's no substitute part

Lens Cap,f DA3-5266-000
#NI

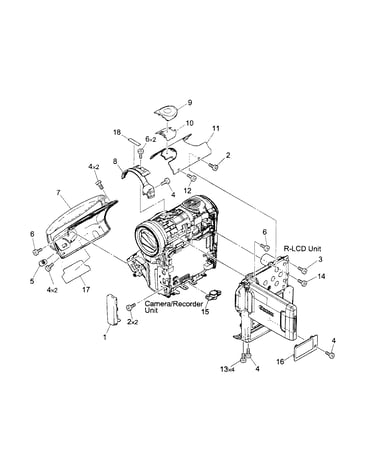

Casing parts 1 diagram

Lens cap,f

Part #DA3-5266-000

The manufacturer no longer makes this part, and there's no substitute part

Light DG3-1671-000
#16

Lcd unit diagram

Light

Part #DG3-1671-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Pcb Assembly DG3-1658-000
#14

Lcd unit diagram

Canon pcb assembly

Part #DG3-1658-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Battery Knob DA3-5533-000
#26

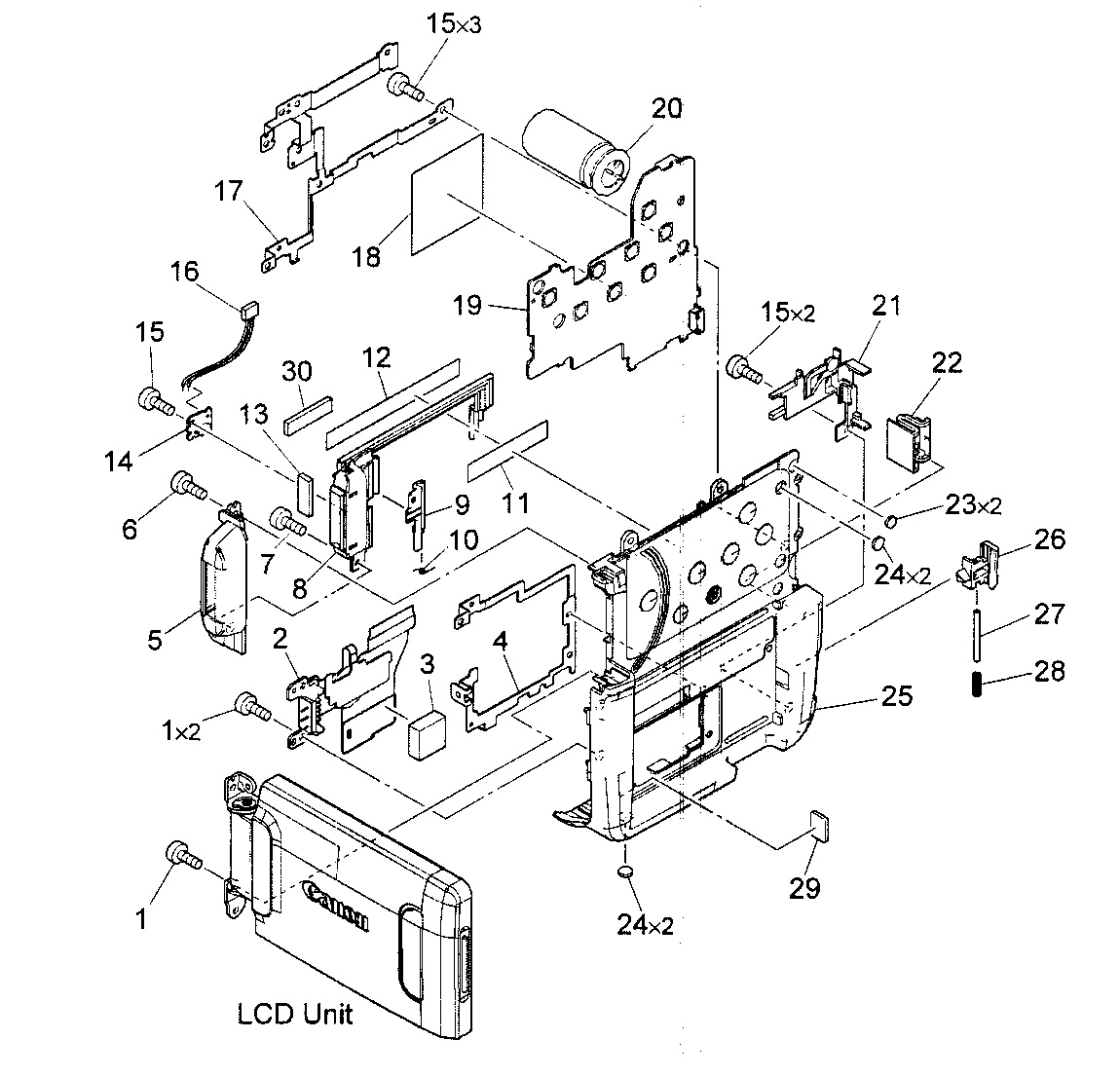

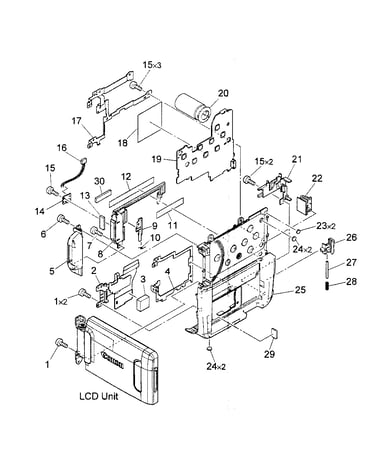

R-lcd unit diagram

Canon battery knob

Part #DA3-5533-000

The manufacturer no longer makes this part, and there's no substitute part

Lcd Camera View Finder WG2-5297-000
#10

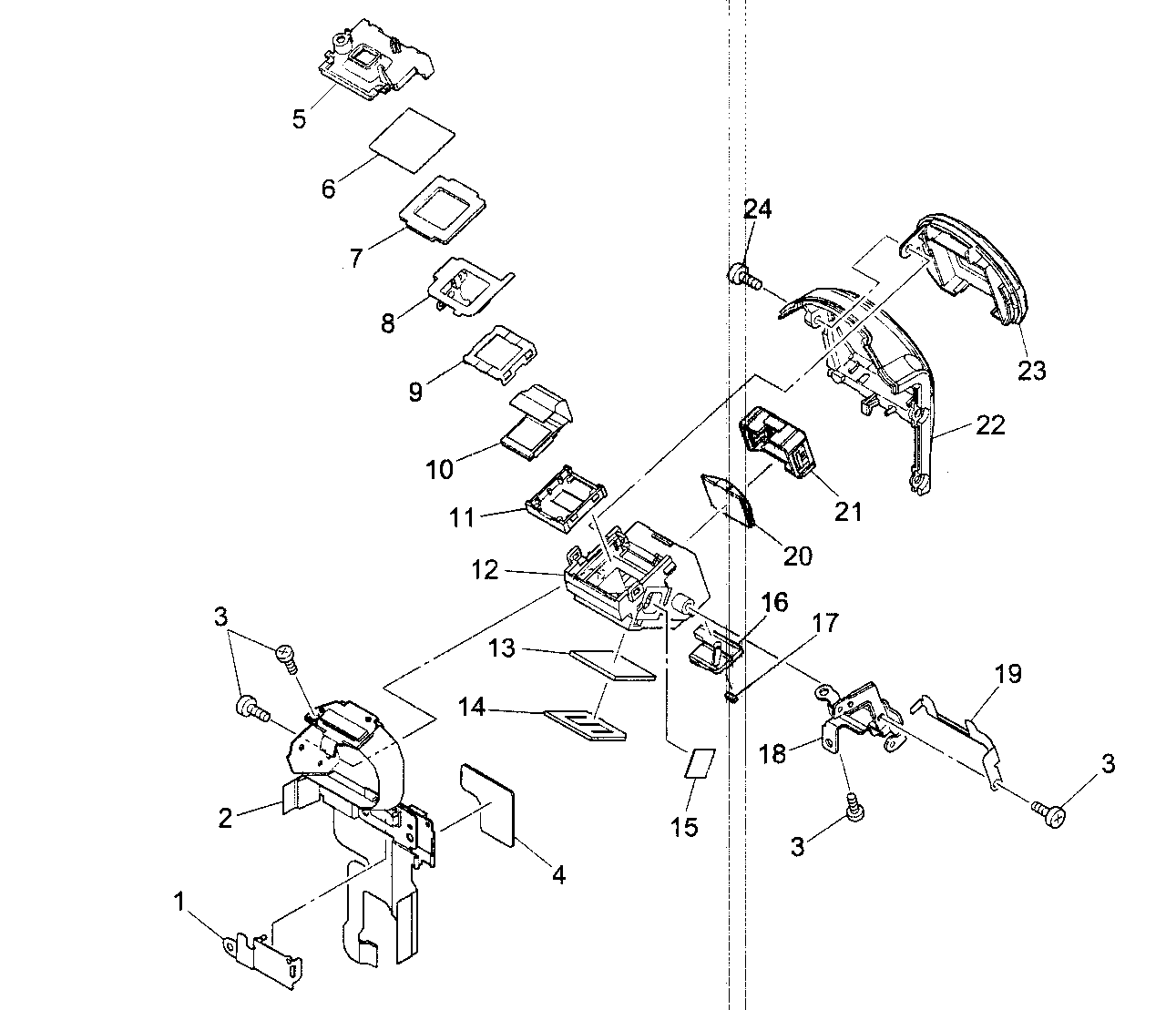

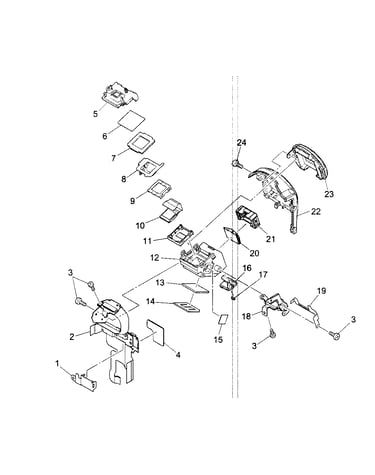

Cvf unit diagram

Lcd camera view finder

Part #WG2-5297-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Ground Plate DA3-5604-000
#10

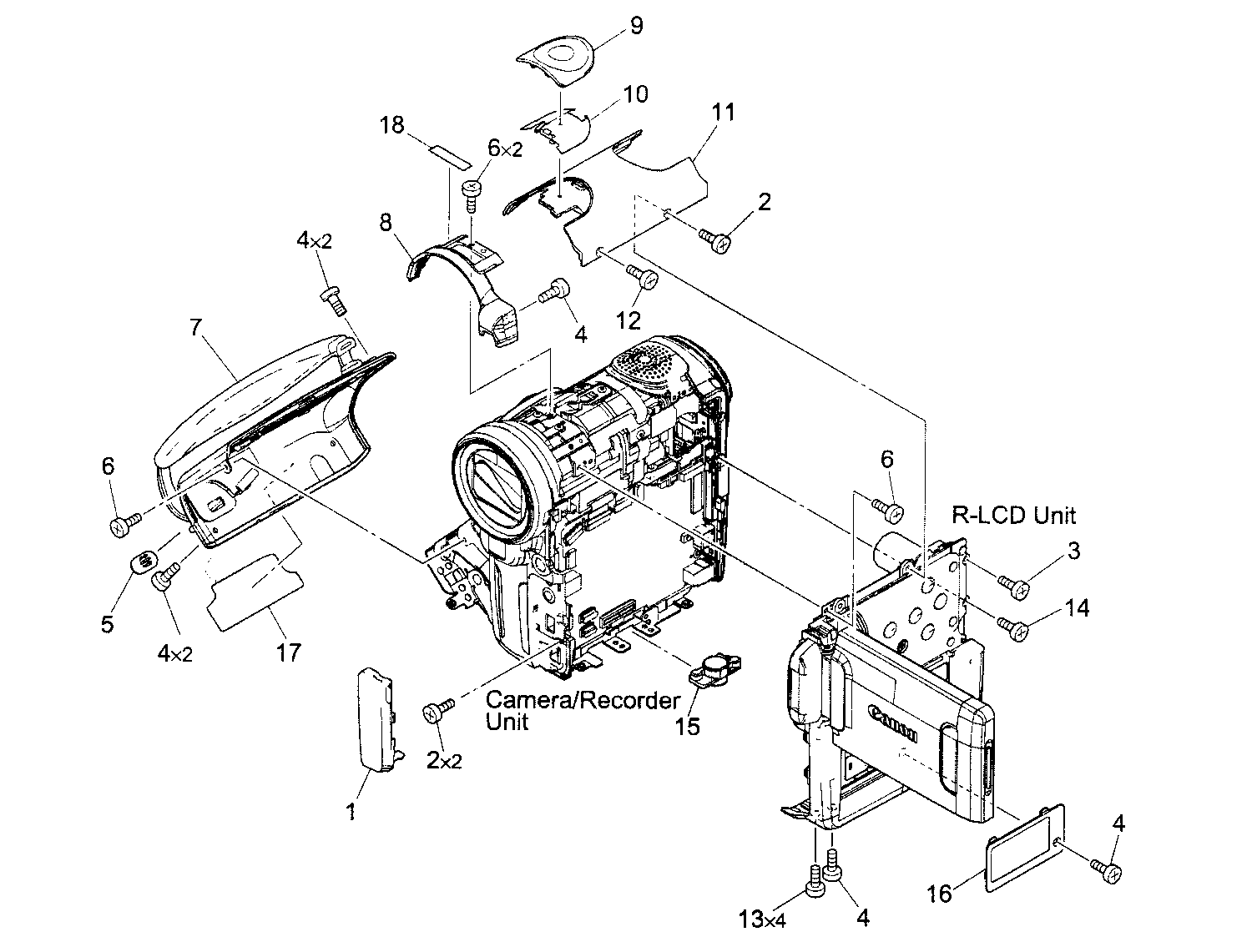

Casing parts 1 diagram

Canon ground plate

Part #DA3-5604-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Flash Assembly DG3-1673-000
#8

R-lcd unit diagram

Canon flash assembly

Part #DG3-1673-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Base DA3-5598-000
#22

Cvf unit diagram

Canon base

Part #DA3-5598-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Knob,cvf DA3-3325-000
#16

Cvf unit diagram

Canon knob,cvf

Part #DA3-3325-000

The manufacturer no longer makes this part, and there's no substitute part
