Milwaukee
Power Sander

Model # 6065 Official Milwaukee 9" 5000 rpm sander

Here are the diagrams and repair parts for Official Milwaukee 6065 9" 5000 rpm sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Washer 45-88-5320
#20

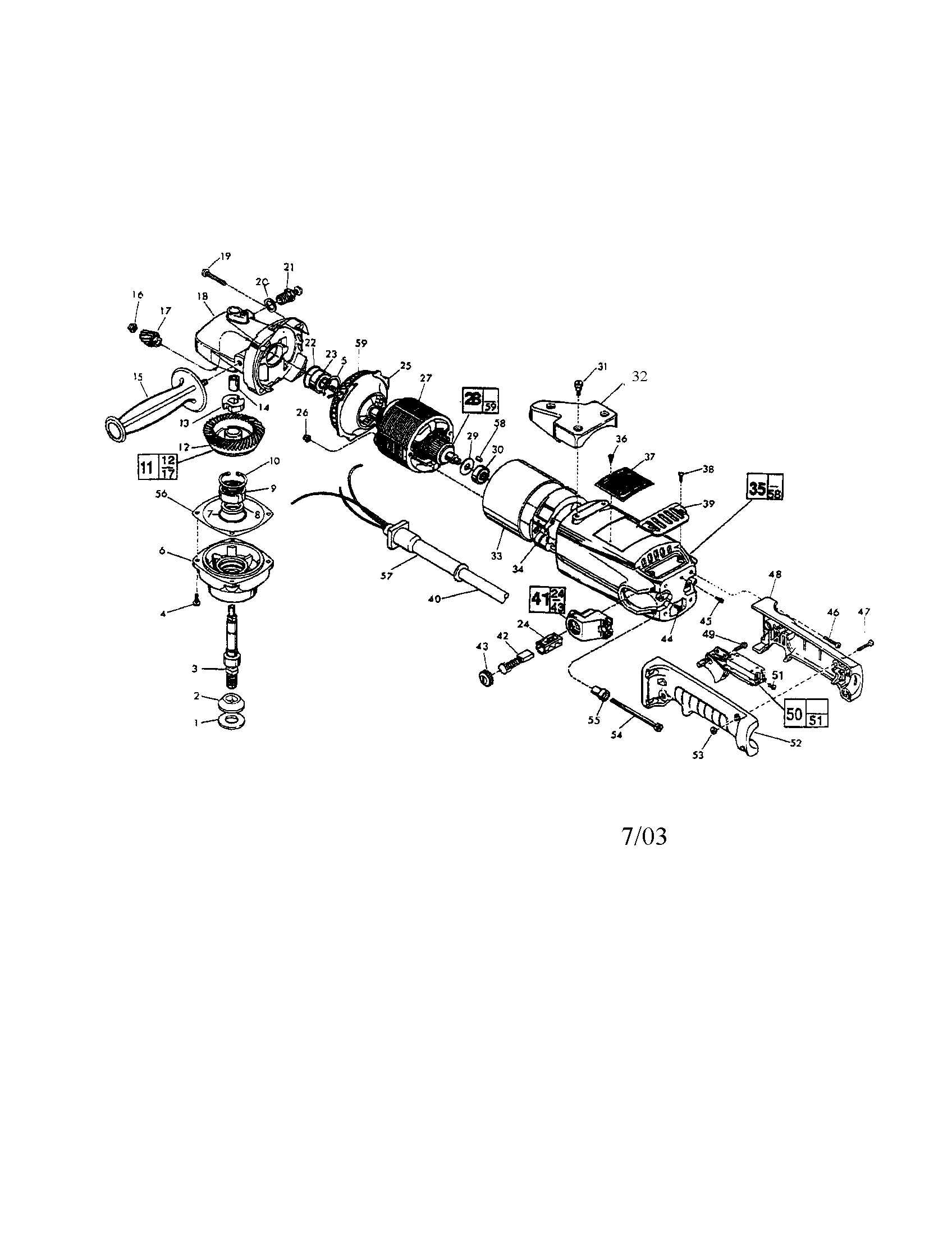

9" sander diagram

Washer

Part #45-88-5320

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 23-16-0950
#33

9" sander diagram

Sleeve

Part #23-16-0950

The manufacturer no longer makes this part, and there's no substitute part

Holder 22-22-0401
#41

9" sander diagram

Holder

Part #22-22-0401

The manufacturer no longer makes this part, and there's no substitute part

Armature 16-70-0300
#28

9" sander diagram

Armature

Part #16-70-0300

The manufacturer no longer makes this part, and there's no substitute part

Felt Seal 45-06-0330
#8

9" sander diagram

Felt seal

Part #45-06-0330

The manufacturer no longer makes this part, and there's no substitute part

Screw 23-44-0170
#43

9" sander diagram

Screw

Part #23-44-0170

The manufacturer no longer makes this part, and there's no substitute part

Housing 28-50-6351
#35

9" sander diagram

Housing

Part #28-50-6351

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 28-14-2035
#18

9" sander diagram

Gear case

Part #28-14-2035

The manufacturer no longer makes this part, and there's no substitute part

10-32 X 3" Flat Fil. Hd., Screw (2) 06-81-1170
#54

9" sander diagram

10-32 x 3" flat fil. hd., screw (2)

Part #06-81-1170

The manufacturer no longer makes this part, and there's no substitute part

O-ring 34-40-1610
#7

9" sander diagram

O-ring

Part #34-40-1610

The manufacturer no longer makes this part, and there's no substitute part
