Room Air Conditioner

Model # LAN121HNP Official LG room air conditioner

Here are the diagrams and repair parts for Official LG LAN121HNP room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Motor Assembly 4681A20055A
#146811-1

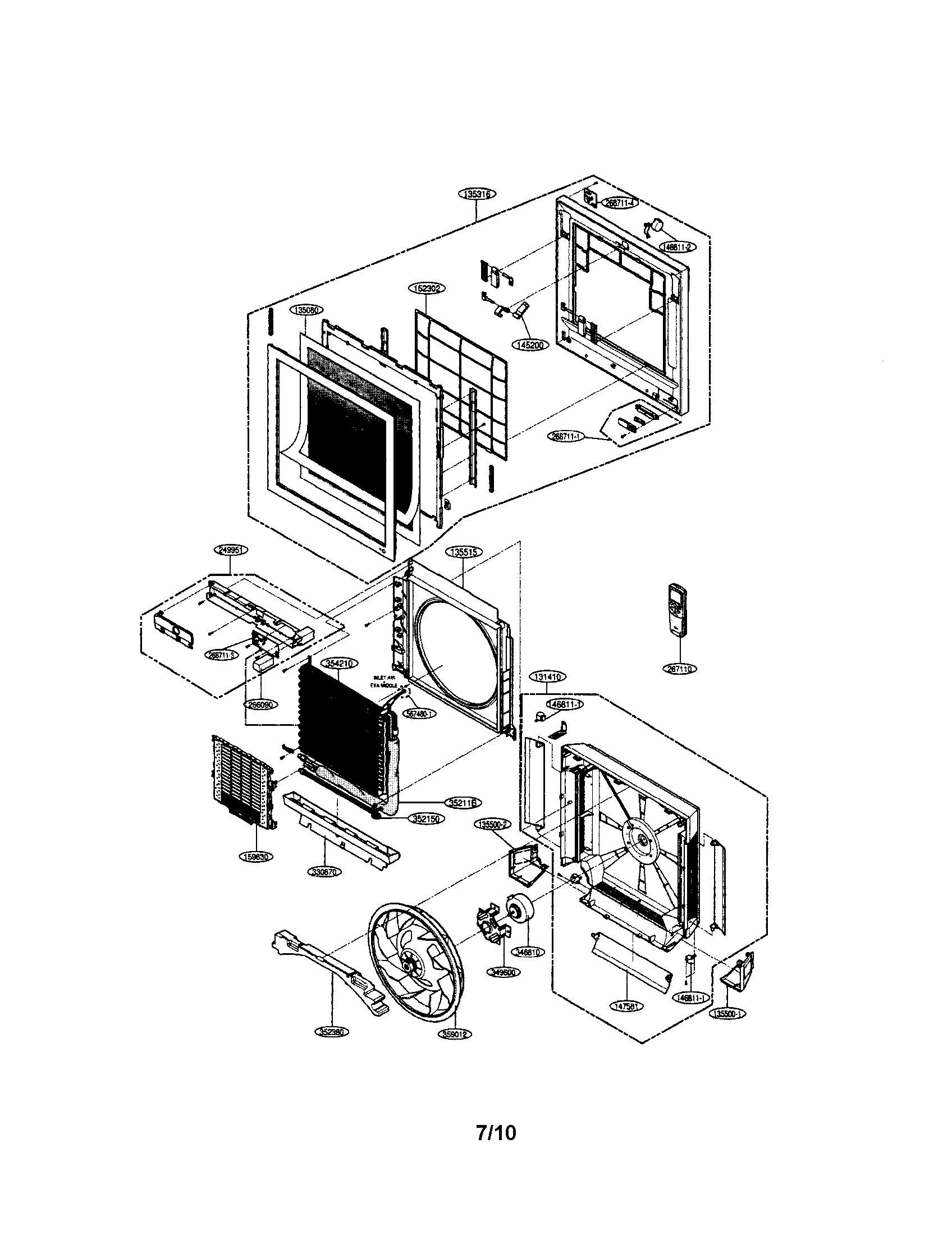

Room a/c diagram

Motor assembly

Part #4681A20055A

$23.07
In Stock
Link 4520A30088A
#145200

Room a/c diagram

Link

Part #4520A30088A

This item is not returnable
$4.51
In Stock
Wire Harness 6871A20921A
#268711-1

Room a/c diagram

Wire harness

Part #6871A20921A

$23.07
In Stock
Room Air Conditioner Front Grille Assembly 3531A20319F
#135316

Room a/c diagram

Room air conditioner front grille assembly

Part #3531A20319F

$309.82
In Stock
Thermistor 6323A20004T
#567480-1

Room a/c diagram

Thermistor

Part #6323A20004T

Replaced by #EBG61107002

?
Manufacturer substitution
This part replaces 6323A20004T. Substitute parts can look different from the original.
$27.47
In Stock
Evaporator Assembly, First 5421A20265A
#354210

Room a/c diagram

Evaporator assembly, first

Part #5421A20265A

The manufacturer no longer makes this part, and there's no substitute part

Drain Hose Assembly 5251A20011K
#352150

Room a/c diagram

Drain hose assembly

Part #5251A20011K

The manufacturer no longer makes this part, and there's no substitute part

Horizontal Louver 4758A20098A
#147581

Room a/c diagram

Horizontal louver

Part #4758A20098A

The manufacturer no longer makes this part, and there's no substitute part

Cover 3550A20511A
#135500-1

Room a/c diagram

Cover

Part #3550A20511A

The manufacturer no longer makes this part, and there's no substitute part

Hvps, Dc/dc 6609A10008B
#266090

Room a/c diagram

Hvps, dc/dc

Part #6609A10008B

The manufacturer no longer makes this part, and there's no substitute part
