Model # C1633012 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1633012 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Motor Pulley 43251003
#23

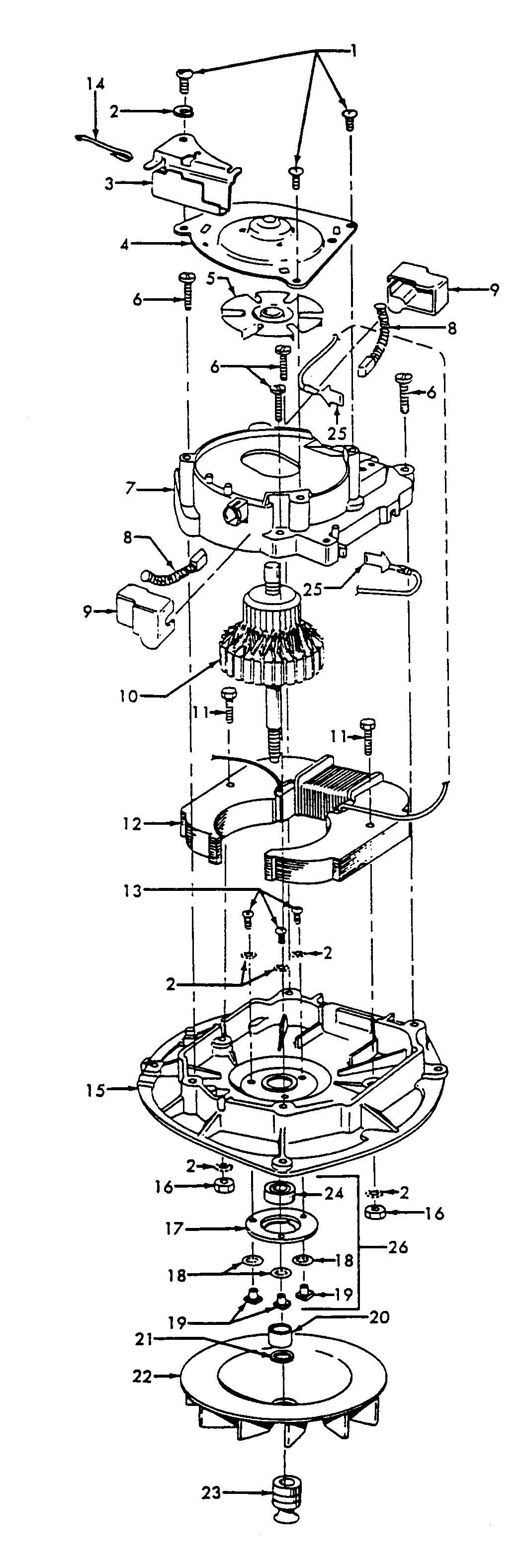

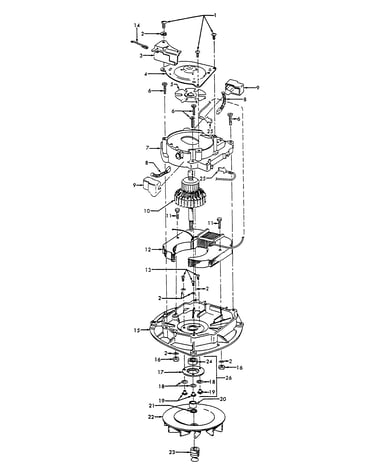

Motor assembly diagram

Motor pulley

Part #43251003

The manufacturer no longer makes this part, and there's no substitute part

Connection Cord 47155005
#65

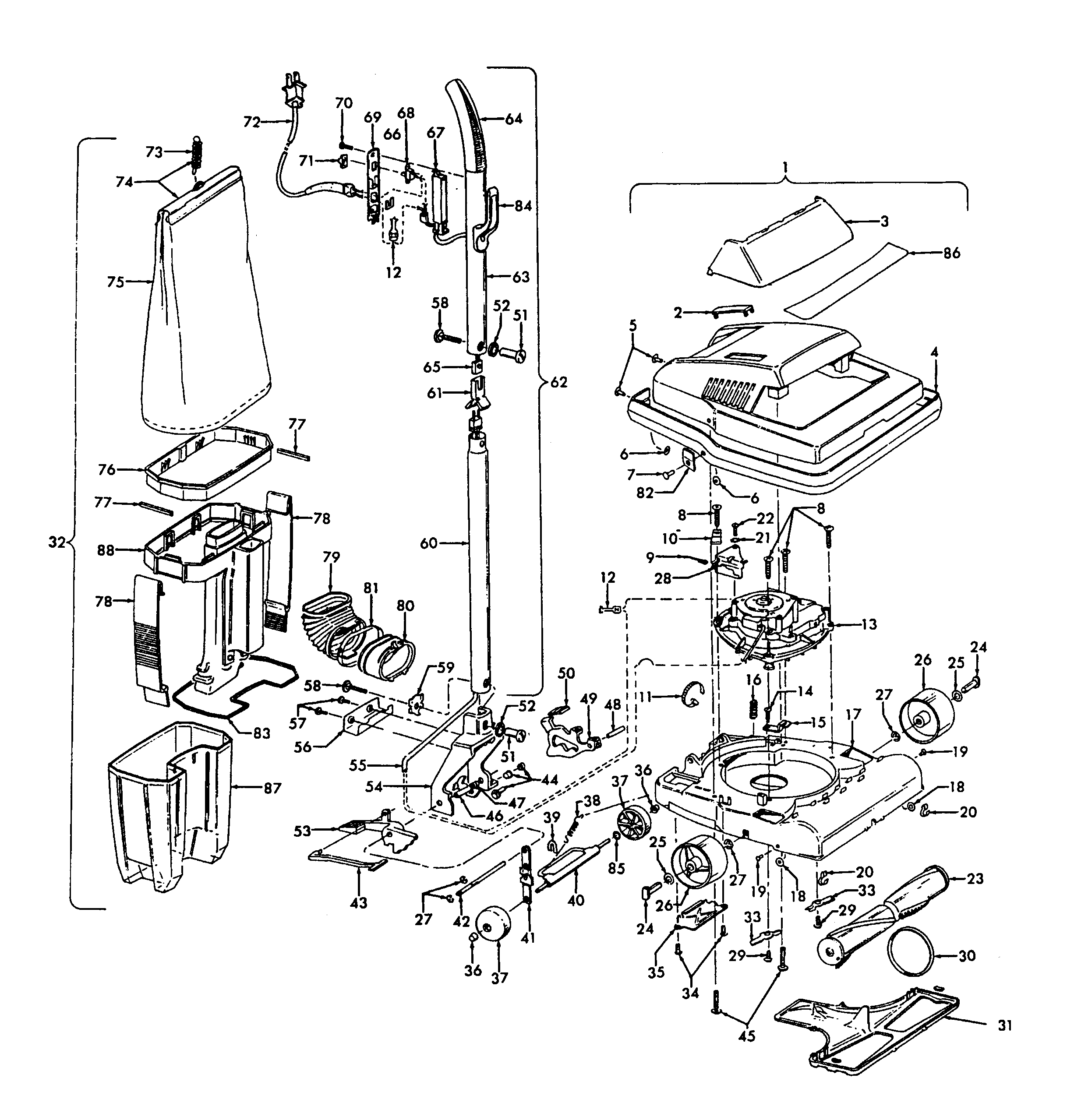

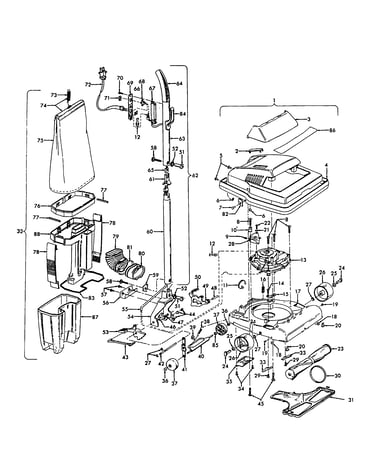

Agitator, handle, mainbody, dirtcup diagram

Connection cord

Part #47155005

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Follower 43263005
#41

Agitator, handle, mainbody, dirtcup diagram

Kenmore follower

Part #43263005

The manufacturer no longer makes this part, and there's no substitute part

Clamp 36425023
#81

Agitator, handle, mainbody, dirtcup diagram

Clamp

Part #36425023

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Brush Cap 36315003
#9

Motor assembly diagram

Kenmore brush cap

Part #36315003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Yoke 34252005
#39

Agitator, handle, mainbody, dirtcup diagram

Kenmore yoke

Part #34252005

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp Bolt 21631301
#58

Agitator, handle, mainbody, dirtcup diagram

Kenmore clamp bolt

Part #21631301

The manufacturer no longer makes this part, and there's no substitute part

Wheel 034791AG
#26

Agitator, handle, mainbody, dirtcup diagram

Wheel

Part #034791AG

The manufacturer no longer makes this part, and there's no substitute part

Hand Clamp Bolt Nut 32277021
#51A

Agitator, handle, mainbody, dirtcup diagram

Hand clamp bolt nut

Part #32277021

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Handle Bolt 21631302
#58A

Agitator, handle, mainbody, dirtcup diagram

Kenmore handle bolt

Part #21631302

The manufacturer no longer makes this part, and there's no substitute part
