Model # 701152320 Official Lifestyler incline weight bench

Here are the diagrams and repair parts for Official Lifestyler 701152320 incline weight bench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Wing Nut 2997630
#18

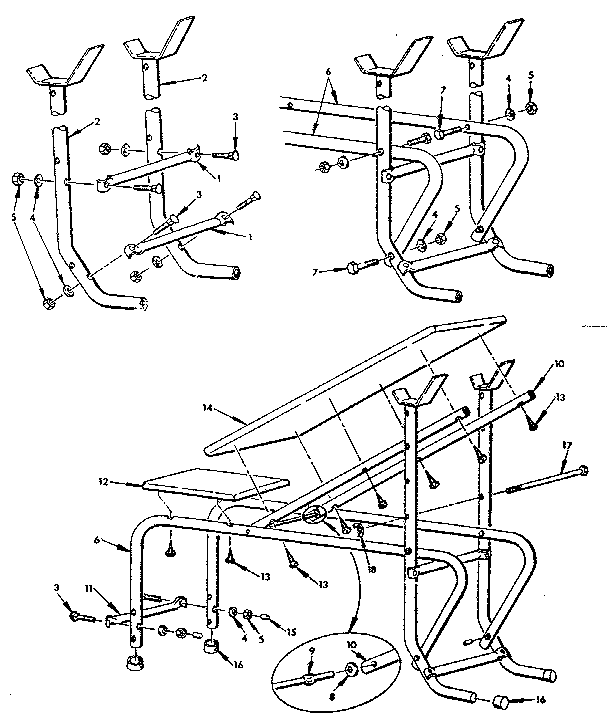

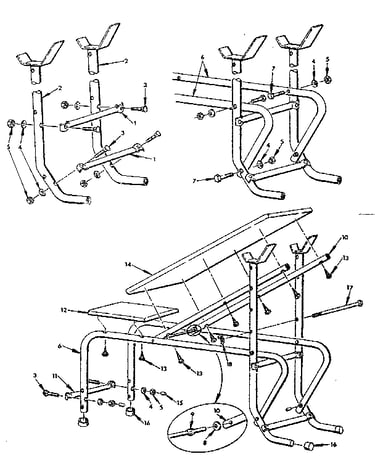

Unit parts diagram

Wing nut

Part #2997630

The manufacturer no longer makes this part, and there's no substitute part

Washer 2997520
#4

Unit parts diagram

Washer

Part #2997520

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt 2992370
#7

Unit parts diagram

Head bolt

Part #2992370

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 2993510
#5

Unit parts diagram

Hex nut

Part #2993510

The manufacturer no longer makes this part, and there's no substitute part

Brace 6200450
#11

Unit parts diagram

Brace

Part #6200450

The manufacturer no longer makes this part, and there's no substitute part

Padded Back 6200370
#14

Unit parts diagram

Padded back

Part #6200370

The manufacturer no longer makes this part, and there's no substitute part

Wood Screw 2997530
#13

Unit parts diagram

Wood screw

Part #2997530

The manufacturer no longer makes this part, and there's no substitute part

Padded Seat 6200380
#12

Unit parts diagram

Padded seat

Part #6200380

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 2993870
#8

Unit parts diagram

Flat washer

Part #2993870

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2997540
#3

Unit parts diagram

Bolt

Part #2997540

The manufacturer no longer makes this part, and there's no substitute part
