Treadmill

Model # IMTL19370 Official Image 12.3i treadmill

Here are the diagrams and repair parts for Official Image IMTL19370 12.3i treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

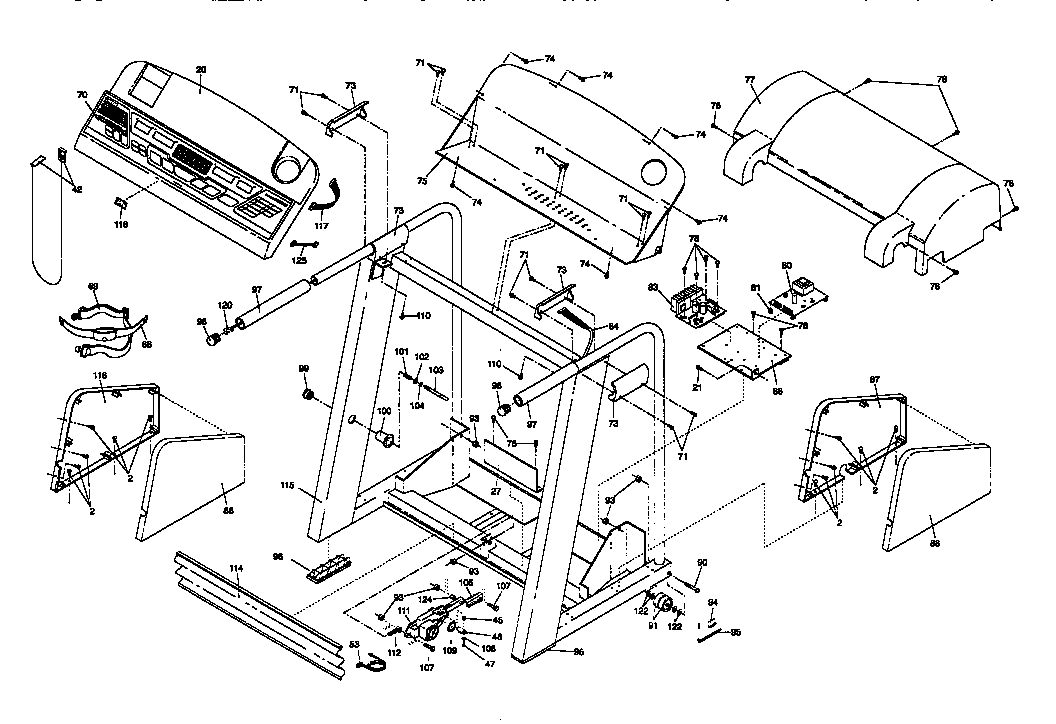

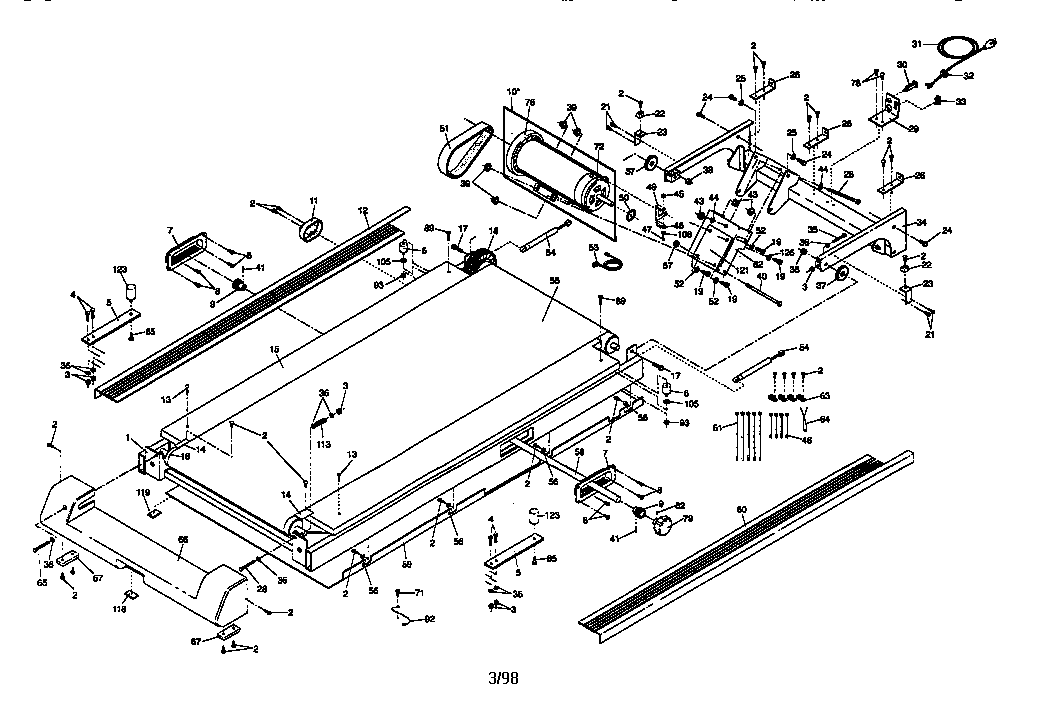

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#42

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
Back Order
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#30

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
Back Order
Black & Decker Exercise Equipment Screw 105444

#65

All parts diagram

Black & decker exercise equipment screw

Part #105444

This item is not returnable
$2.16
Back Order
Black & Decker Treadmill Nut 119425

#38

All parts diagram

Black & decker treadmill nut

Part #119425

This item is not returnable
$2.16
In Stock
Wire,hrns,03 141066

#117

All parts diagram

Wire,hrns,03

Part #141066

This item is not returnable
$5.49
In Stock
Exercise Equipment Flat Washer 014127

#36

All parts diagram

Exercise equipment flat washer

Part #014127

This item is not returnable
$2.16
In Stock
Lifestyler Screw,hhcs,b 115260

#40

All parts diagram

Lifestyler screw,hhcs,b

Part #115260

This item is not returnable
$3.99
In Stock
Lifestyler Belt Guide 124318

#NI

All parts diagram

Lifestyler belt guide

Part #124318

This item is not returnable
$2.16
In Stock
Wire,jmpr,16 143112

#NI

All parts diagram

Wire,jmpr,16

Part #143112

This item is not returnable
$2.99
In Stock
Treadmill Wire Harness, 8-in 118201

#NI

All parts diagram

Treadmill wire harness, 8-in

Part #118201

This item is not returnable
$2.16
In Stock
