Model # ES619-3S/P67119-16R Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana ES619-3S-P67119-16R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

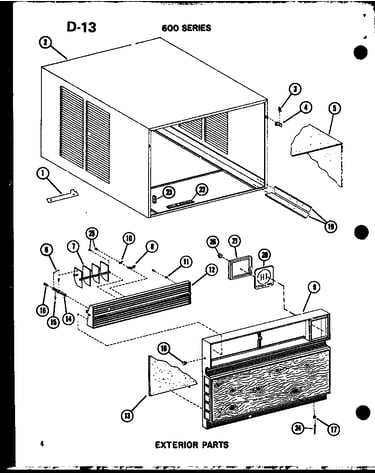

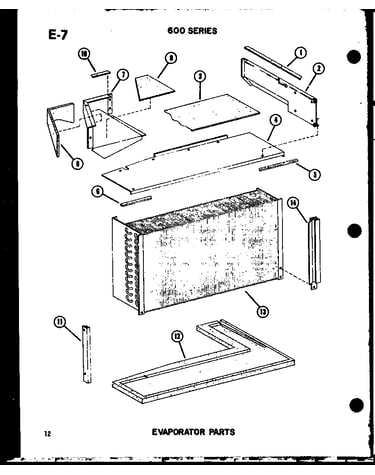

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Use M0321202 M0321203
#2

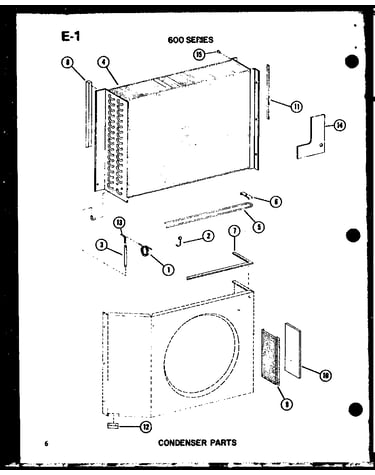

Condenser parts diagram

Use m0321202

Part #M0321203

The manufacturer no longer makes this part, and there's no substitute part

Use M2820-15 M0282013
#16A

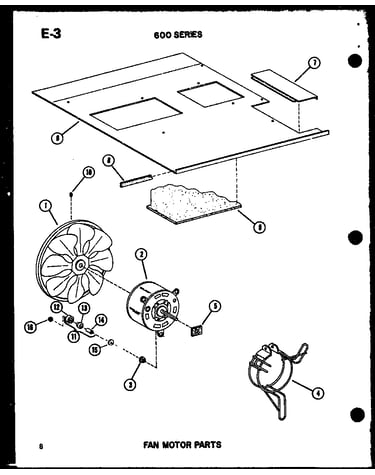

Fan motor parts diagram

Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Use M0223230 M0211343
#34

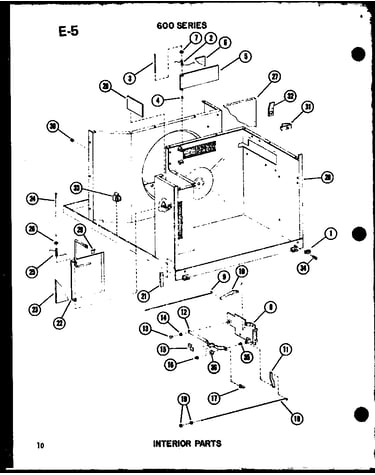

Interior parts diagram

Use m0223230

Part #M0211343

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211343. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
*$* Discharg C5969501
#6C

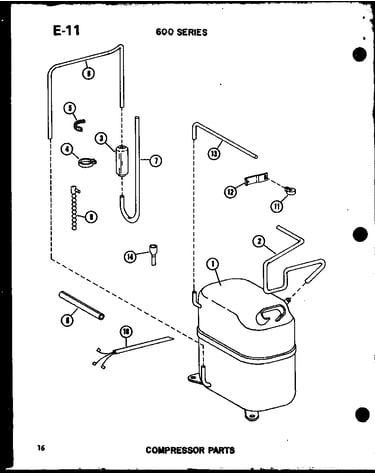

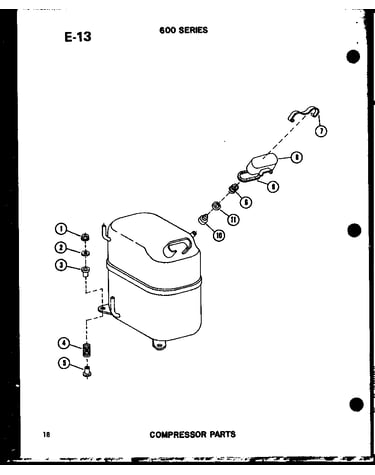

Compressor parts diagram

*$* discharg

Part #C5969501

The manufacturer no longer makes this part, and there's no substitute part

Lever Cam B5175202
#12

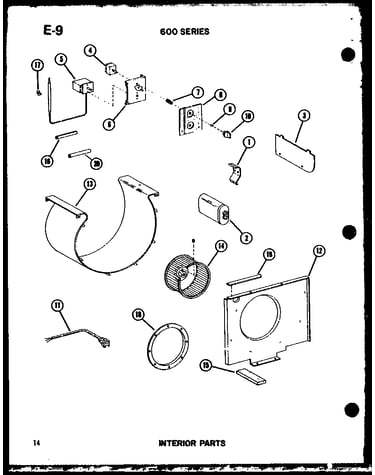

Interior parts diagram

Lever cam

Part #B5175202

The manufacturer no longer makes this part, and there's no substitute part

*$* Capillar C5834802
#1C

Condenser parts diagram

*$* capillar

Part #C5834802

The manufacturer no longer makes this part, and there's no substitute part

Clamp A3310502
#12

Compressor parts diagram

Clamp

Part #A3310502

The manufacturer no longer makes this part, and there's no substitute part

Overload D4976626
#10A

Compressor parts diagram

Overload

Part #D4976626

The manufacturer no longer makes this part, and there's no substitute part

Window Board A4607703
#1

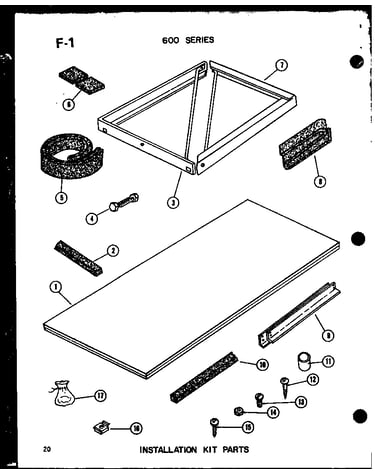

Installation kit parts diagram

Window board

Part #A4607703

The manufacturer no longer makes this part, and there's no substitute part

*$* Process A3331201
#13A

Compressor parts diagram

*$* process

Part #A3331201

The manufacturer no longer makes this part, and there's no substitute part
