Kenmore
Countertop Microwave

Model # 5658768611 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658768611 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

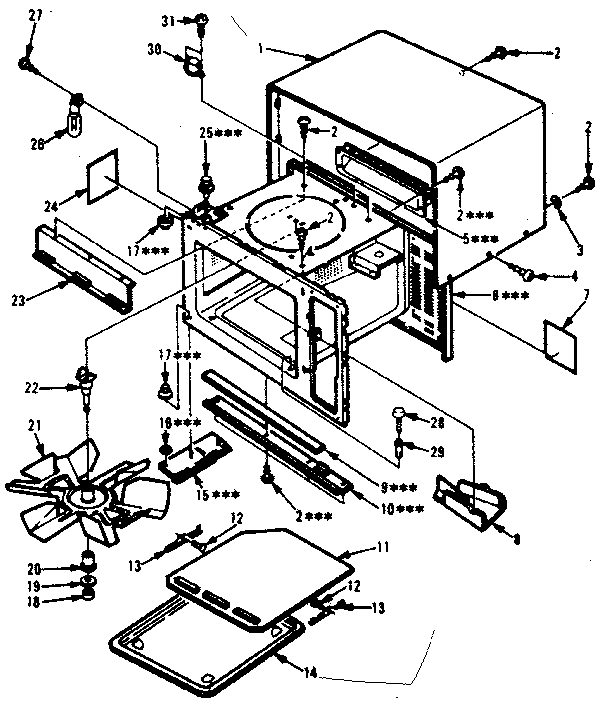

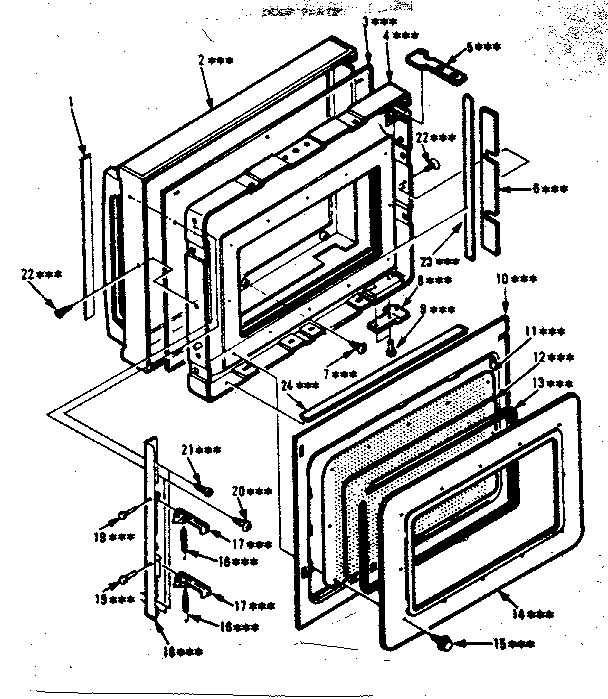

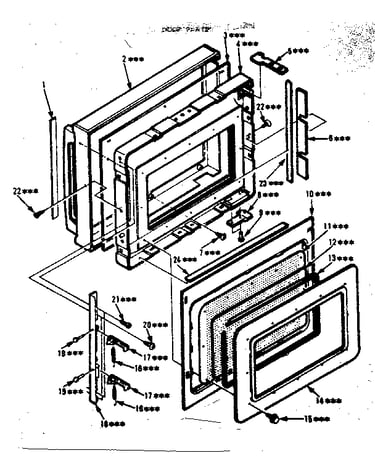

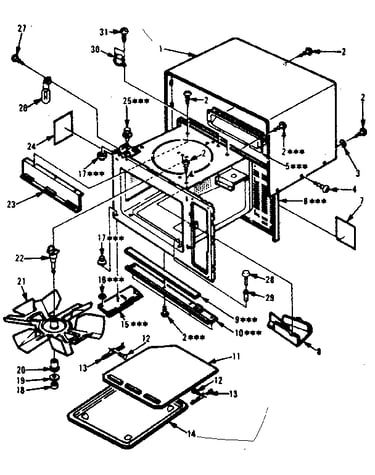

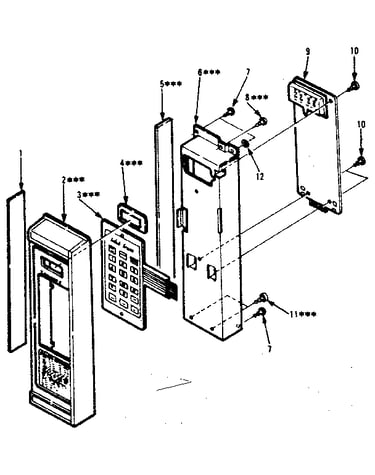

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Microwave Fuse, 15-amp 11255
#22

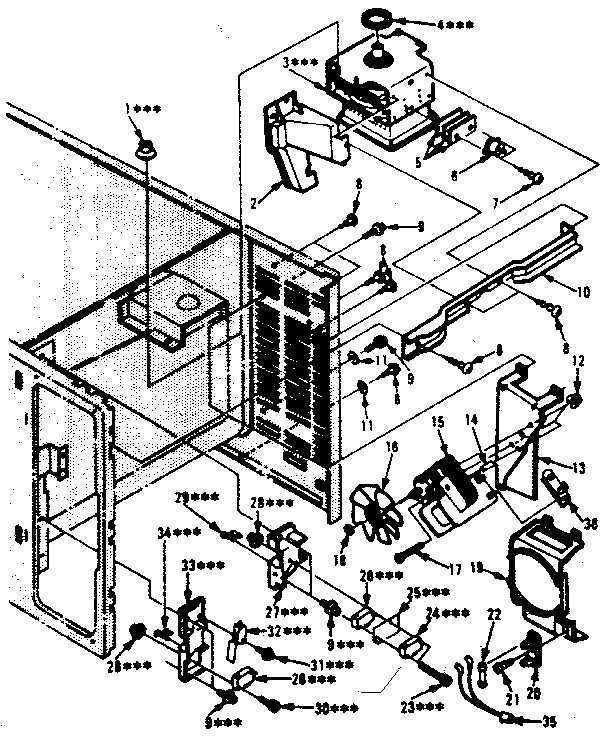

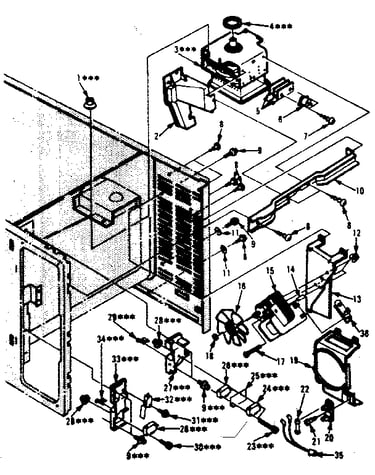

Switches and microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Lever 11090
#34

Switches and microwave parts diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#20

Switches and microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12661
#8

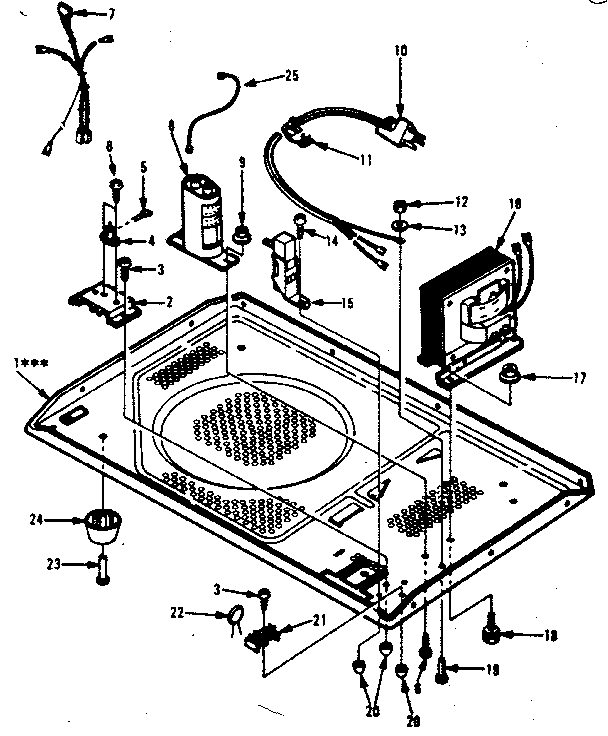

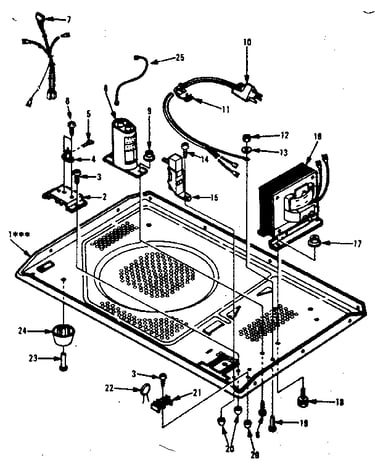

Microwave parts diagram

Capacitor

Part #12661

The manufacturer no longer makes this part, and there's no substitute part

Resistor 11730
#7B

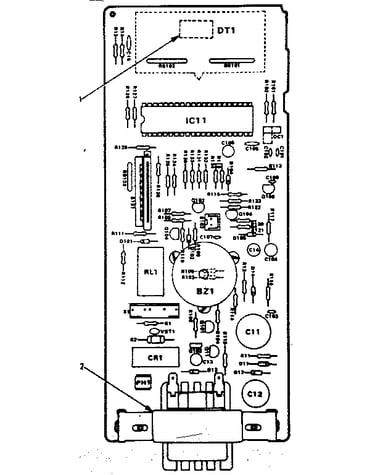

Power and control circuit board diagram

Resistor

Part #11730

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12133
#6J

Power and control circuit board diagram

Capacitor

Part #12133

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11757
#6D

Power and control circuit board diagram

Capacitor

Part #11757

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11564
#6H

Power and control circuit board diagram

Capacitor

Part #11564

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 12852
#3

Switches and microwave parts diagram

Magnetron

Part #12852

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11243
#26

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part
