Kenmore
Gas Grill

Model # 25916502 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 25916502 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Gas Grill Wing Nut SP25-16
Gas grill wing nut

Part #SP25-16

The manufacturer no longer makes this part, and there's no substitute part

Fiesta Lh Shelf SP51-9
#1

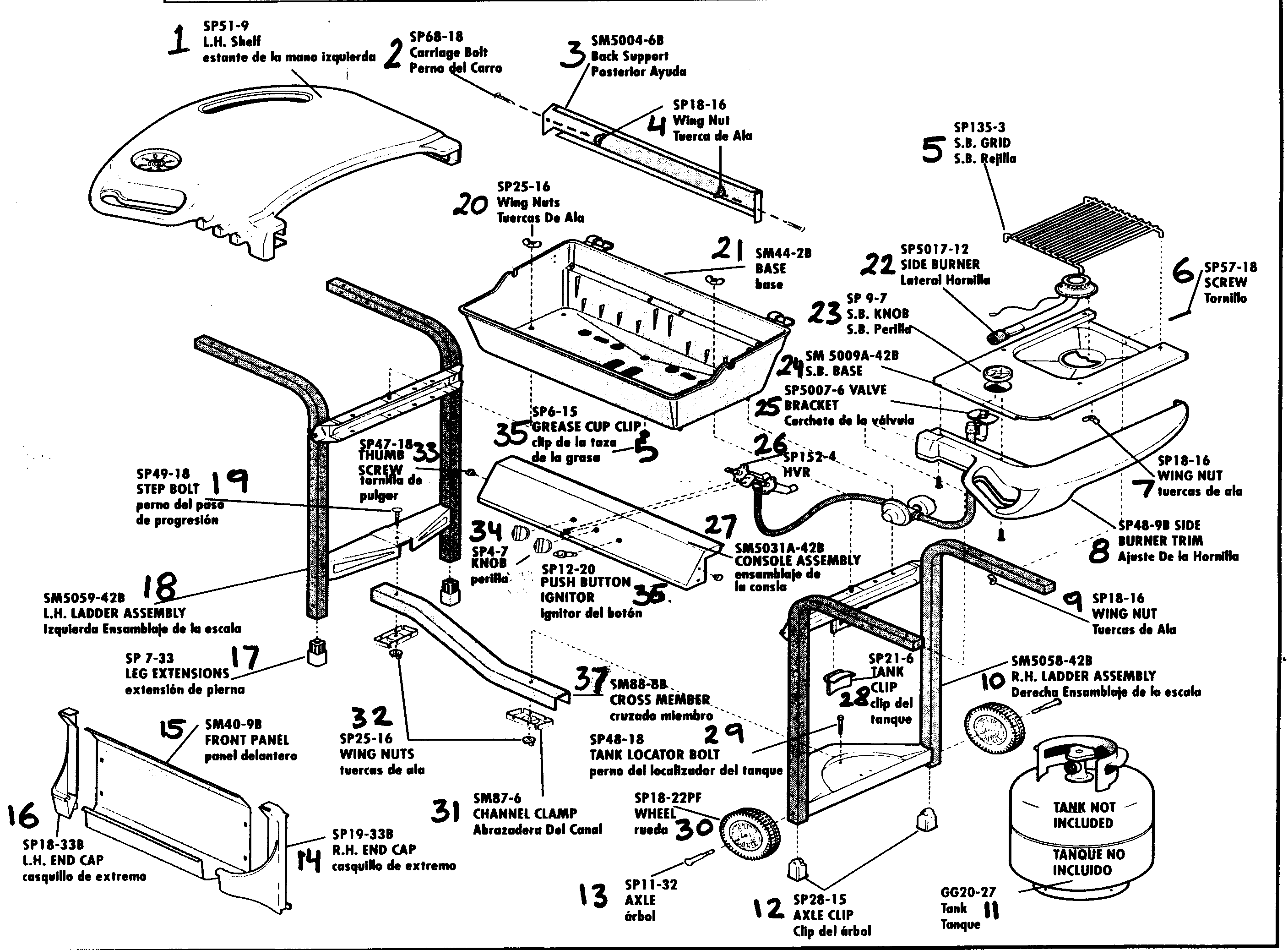

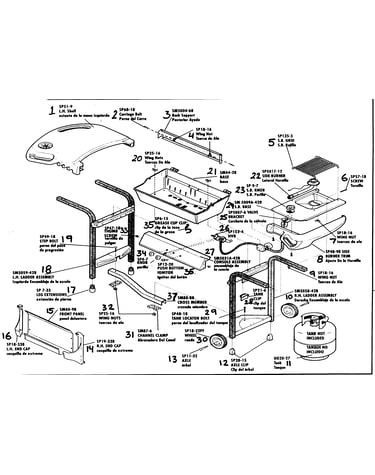

Grill assy 2 diagram

Fiesta lh shelf

Part #SP51-9

The manufacturer no longer makes this part, and there's no substitute part

Fiesta Gas Grill Warming Rack SP5007-3
#7

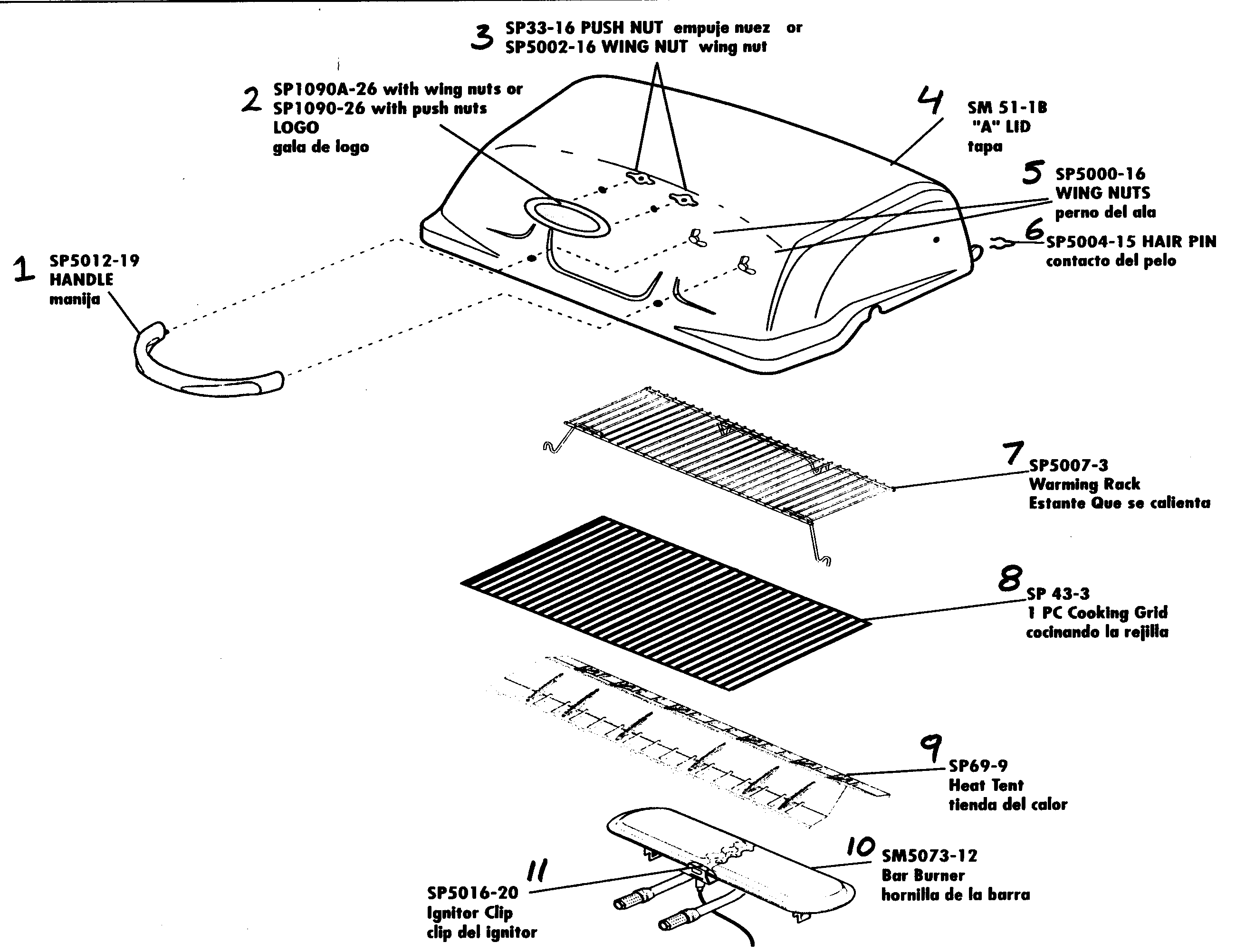

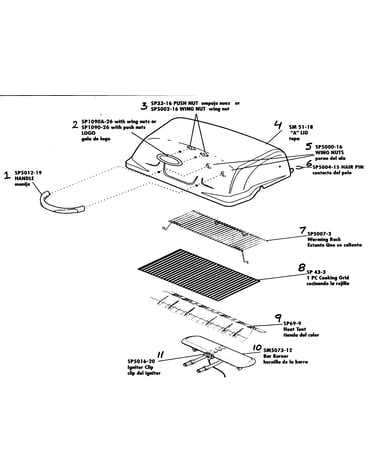

Grill assy 1 diagram

Fiesta gas grill warming rack

Part #SP5007-3

The manufacturer no longer makes this part, and there's no substitute part

Fiesta Burner Trim SP48-9B
#8

Grill assy 2 diagram

Fiesta burner trim

Part #SP48-9B

The manufacturer no longer makes this part, and there's no substitute part

Tank GG20-27
#11

Grill assy 2 diagram

Tank

Part #GG20-27

The manufacturer no longer makes this part, and there's no substitute part

Fiesta Step Bolt SP49-18
#19

Grill assy 2 diagram

Fiesta step bolt

Part #SP49-18

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob SP9-7
#23

Grill assy 2 diagram

Burner knob

Part #SP9-7

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Cross Member SM88-8B
#37

Grill assy 2 diagram

Kenmore cross member

Part #SM88-8B

The manufacturer no longer makes this part, and there's no substitute part

Push Nut SP33-16
#3A

Grill assy 1 diagram

Push nut

Part #SP33-16

The manufacturer no longer makes this part, and there's no substitute part

Igniter SP12-20
#36

Grill assy 2 diagram

Igniter

Part #SP12-20

The manufacturer no longer makes this part, and there's no substitute part
