Amana
Countertop Microwave

Model # RS520/P7766606M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RS520-P7766606M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

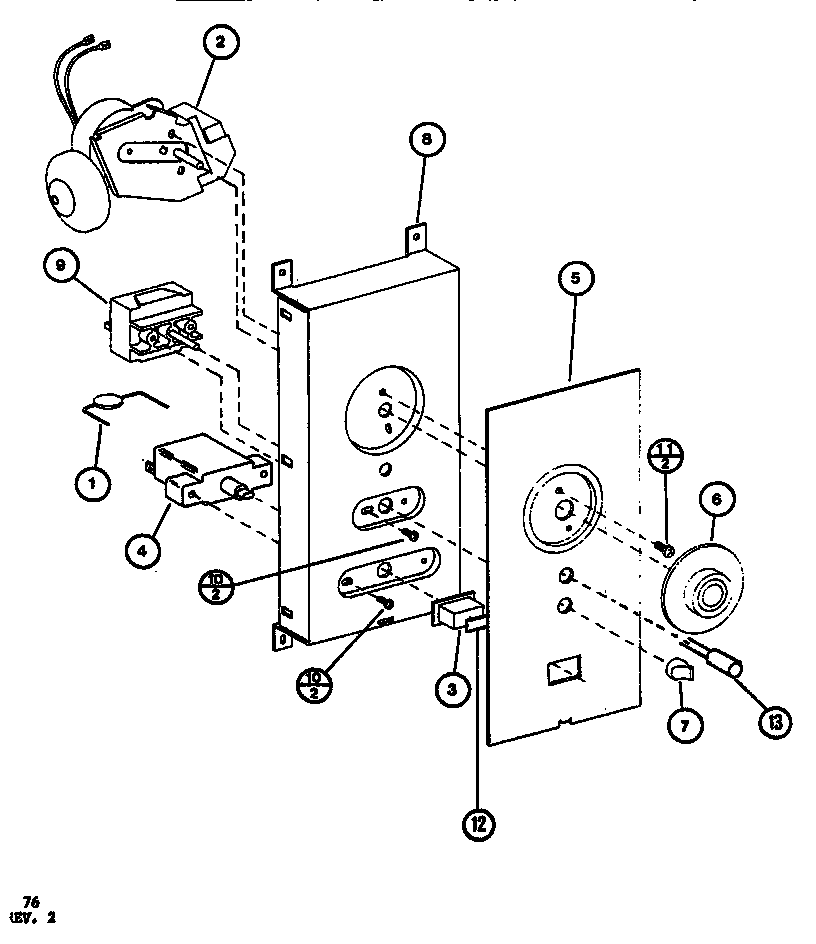

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Capacitor D8547909
#14

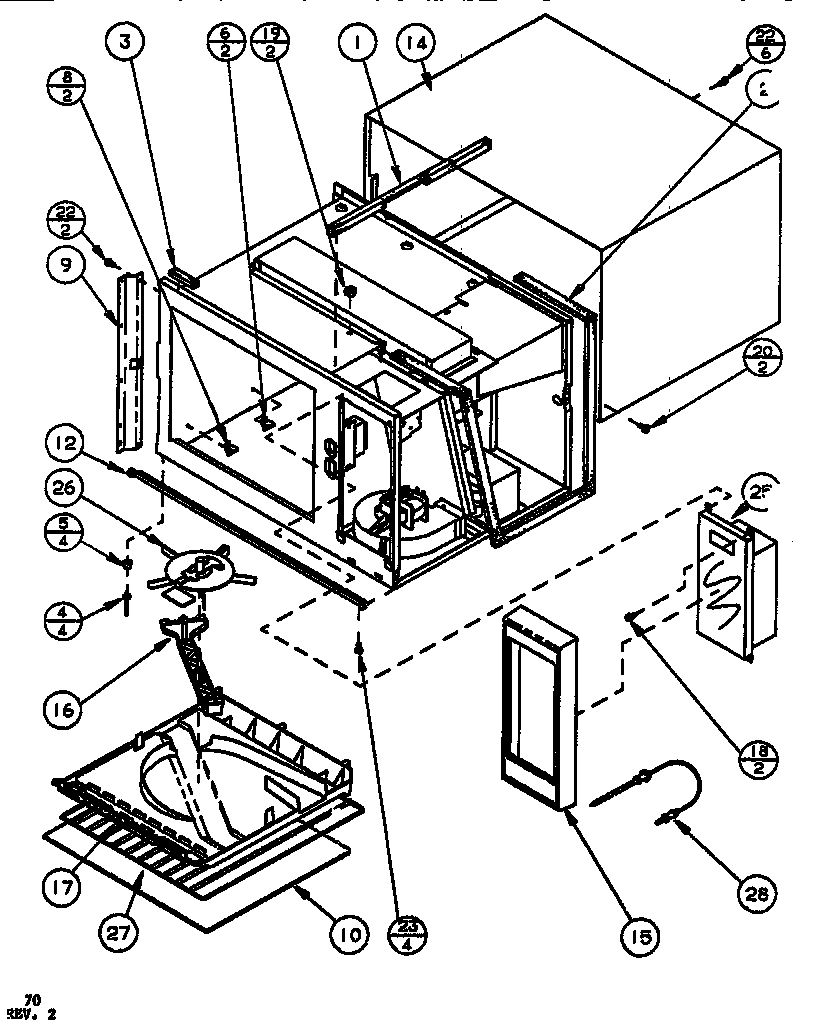

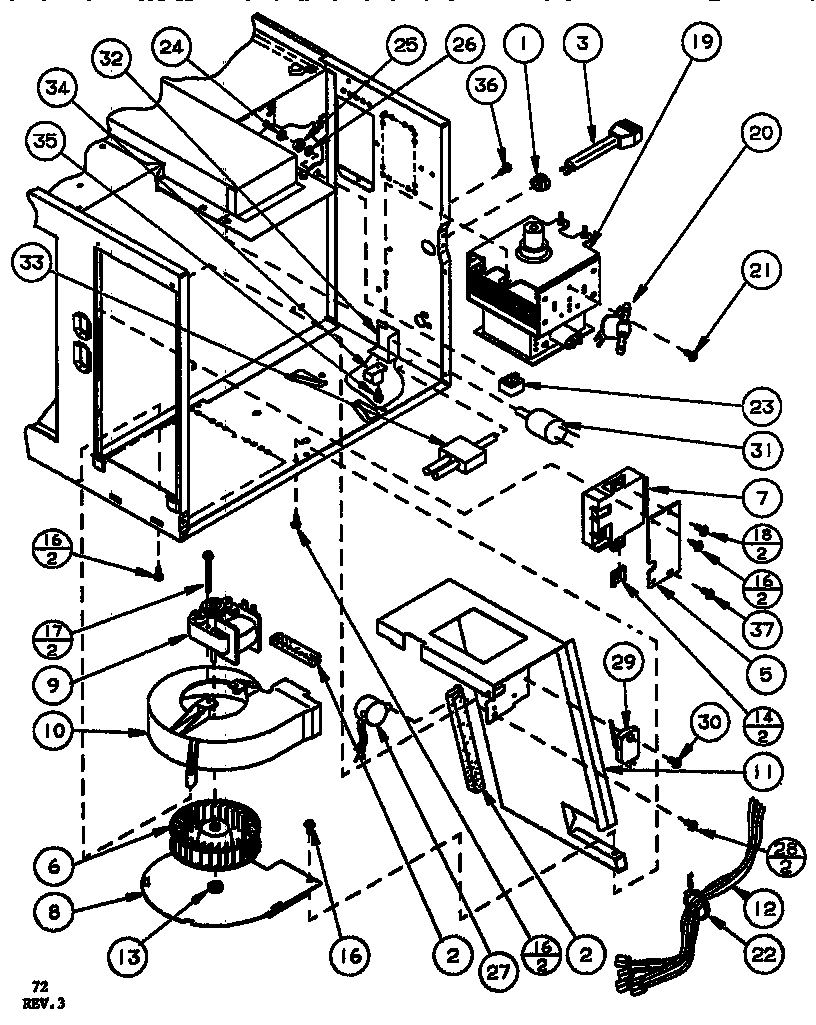

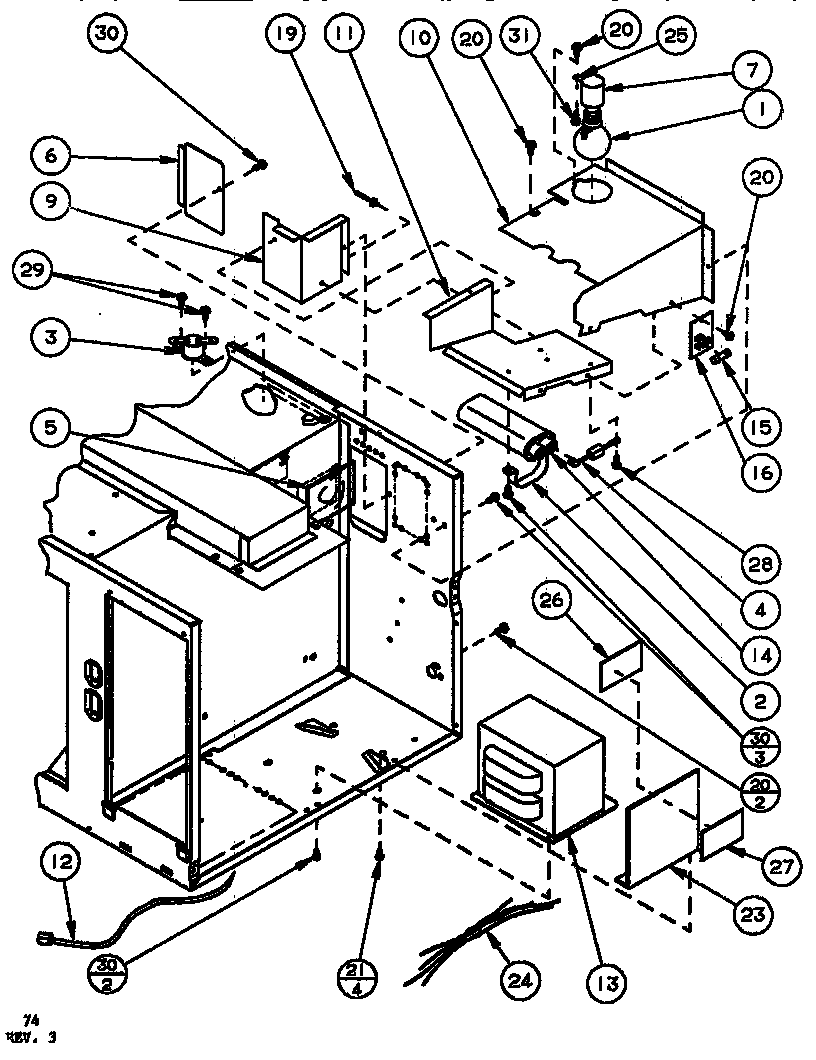

Interior diagram

Capacitor

Part #D8547909

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces D8547909. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Washer M0270536
#26

Interior diagram

Washer

Part #M0270536

Replaced by #M0270536

?
Manufacturer substitution
This part replaces M0270536. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Air Duct D7772202
#11

Interior diagram

Air duct

Part #D7772202

Replaced by #D7772202

?
Manufacturer substitution
This part replaces D7772202. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0243418
#22A

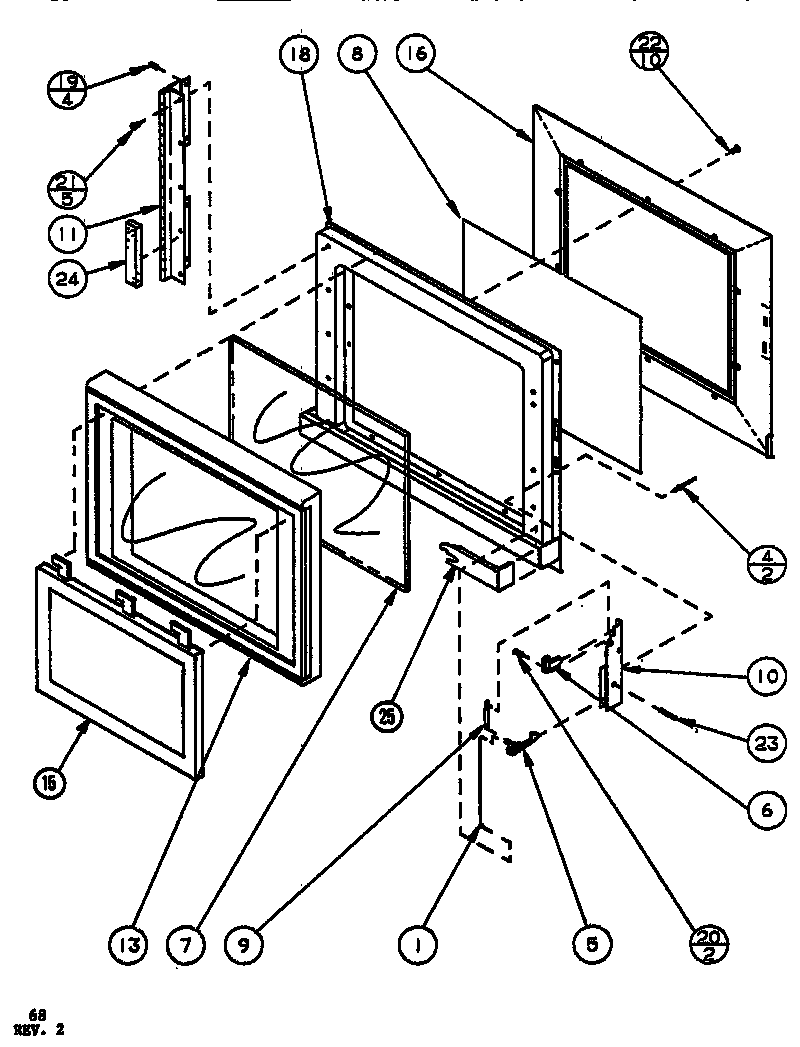

Exterior diagram

Screw

Part #M0243418

Replaced by #489392

?
Manufacturer substitution
This part replaces M0243418. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0234422
#29

Interior diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Lamp A0282802
#1

Interior diagram

Lamp

Part #A0282802

Replaced by #WP67002552

?
Manufacturer substitution
This part replaces A0282802. Substitute parts can look different from the original.
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
Torx Screw M0234016
Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Torx Screw M0216616
Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0216703
Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
