Craftsman
Wet/Dry Vacuum

Model # 113179920 Official Craftsman 32-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179920 32-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Nozzle (black) 28229-01
#23

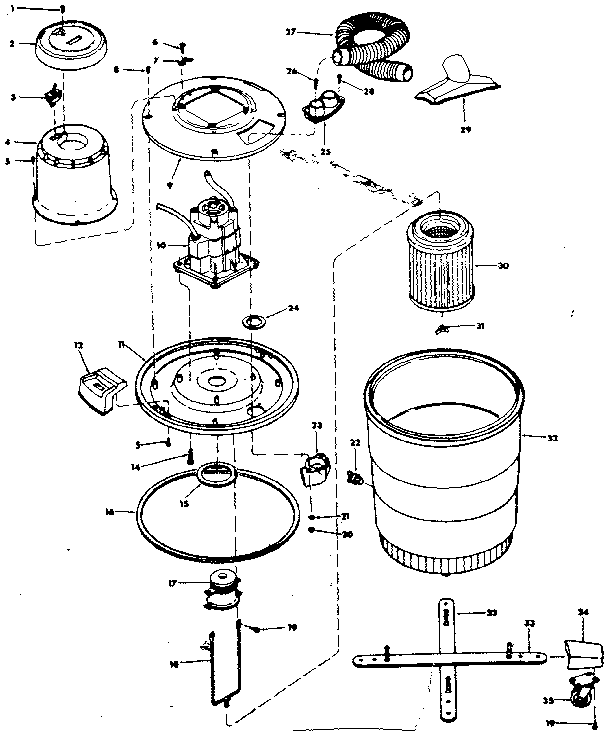

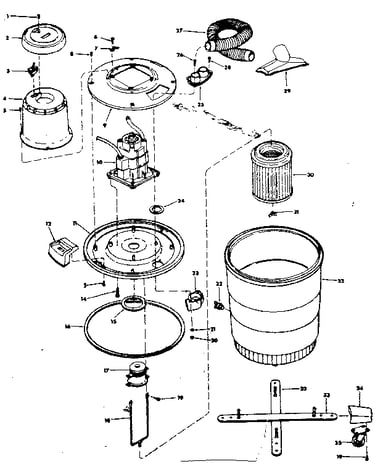

Unit diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 813189
#8

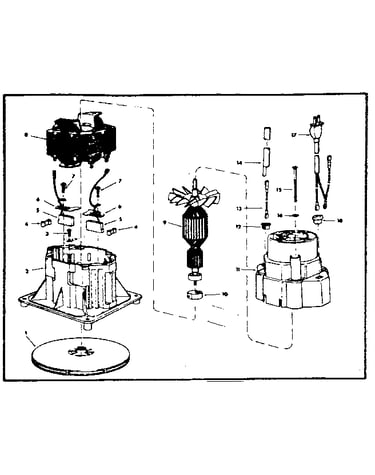

Motor nos. 73190 & 73333 diagram

Field assembly

Part #813189

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#3

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Ferrules 22212-01
#25

Unit diagram

Ferrules

Part #22212-01

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 20557-01
#29

Unit diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Motor Frame 813182
#11

Motor nos. 73190 & 73333 diagram

Motor frame

Part #813182

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer STD551008
#21

Unit diagram

Plain washer

Part #STD551008

The manufacturer no longer makes this part, and there's no substitute part

Brush Plate 813210
#6

Motor nos. 73190 & 73333 diagram

Brush plate

Part #813210

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 73232

#NI

All parts diagram

Owner's manual

Part #73232

The manufacturer no longer makes this part, and there's no substitute part

Float 22189
#17

Unit diagram

Float

Part #22189

The manufacturer no longer makes this part, and there's no substitute part
