Kenmore
Countertop Microwave

Model # 5649907710 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5649907710 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Latch Switch 10333
#8

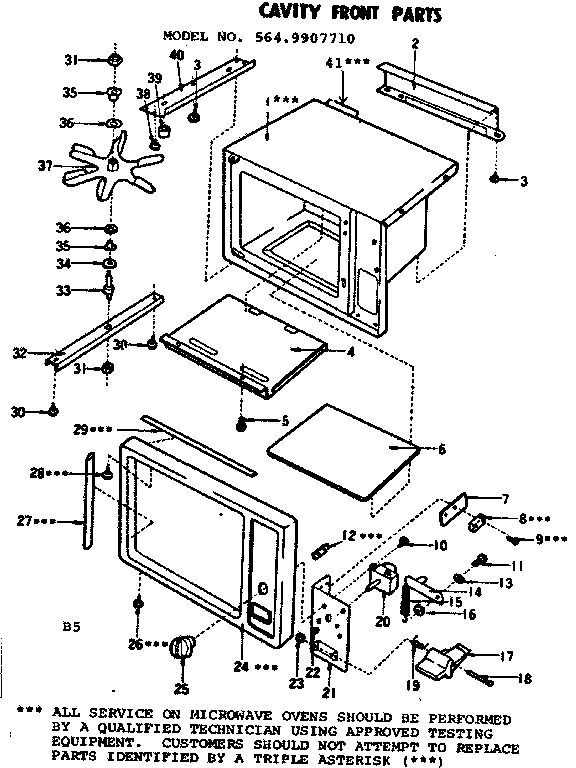

Cavity front parts diagram

Latch switch

Part #10333

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 10303
#10

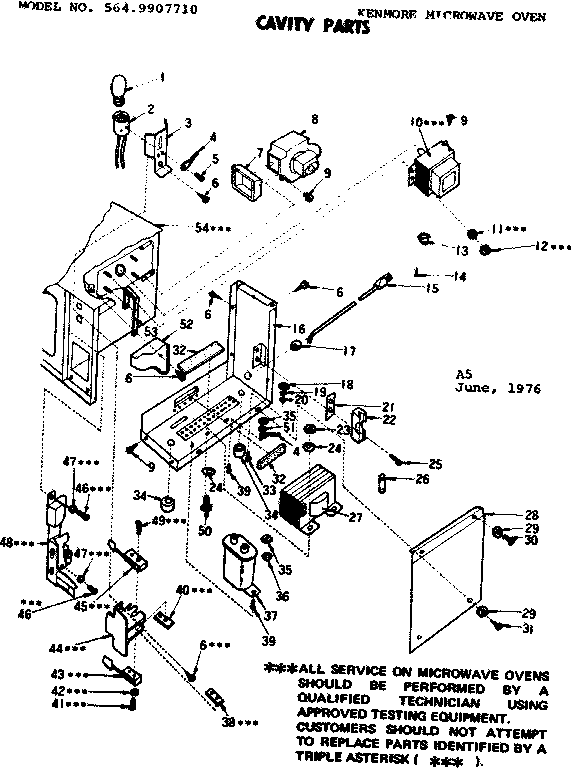

Cavity parts diagram

Magnetron

Part #10303

The manufacturer no longer makes this part, and there's no substitute part

Screw 10305
#14

Cavity parts diagram

Screw

Part #10305

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 10304
#13

Cavity parts diagram

Thermostat

Part #10304

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 10306
#15

Cavity parts diagram

Power cord

Part #10306

The manufacturer no longer makes this part, and there's no substitute part

Switch Base 10320
#44

Cavity parts diagram

Switch base

Part #10320

The manufacturer no longer makes this part, and there's no substitute part

Spring 10338
#15

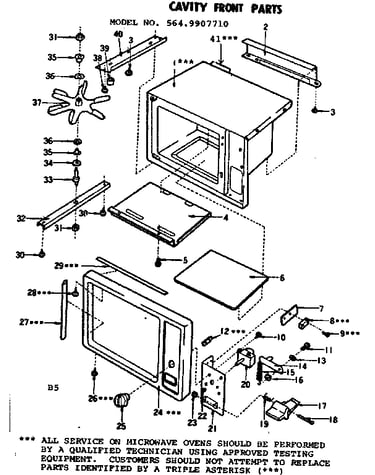

Cavity front parts diagram

Spring

Part #10338

The manufacturer no longer makes this part, and there's no substitute part

Latch 10201
#5

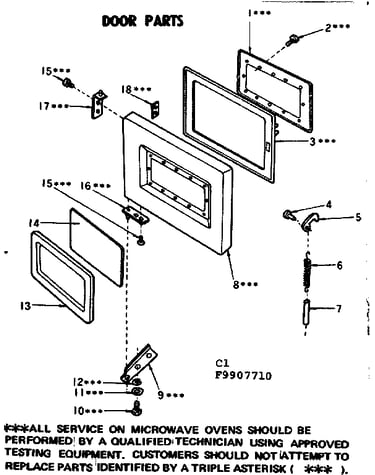

Door parts diagram

Latch

Part #10201

The manufacturer no longer makes this part, and there's no substitute part

Special Washer 10323
#47

Cavity parts diagram

Special washer

Part #10323

The manufacturer no longer makes this part, and there's no substitute part

Screw 10002
Screw

Part #10002

The manufacturer no longer makes this part, and there's no substitute part
