Eureka
Upright Vacuum

Model # 7618AT Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 7618AT upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Vacuum Screw, 10-pack 53238-18
#4

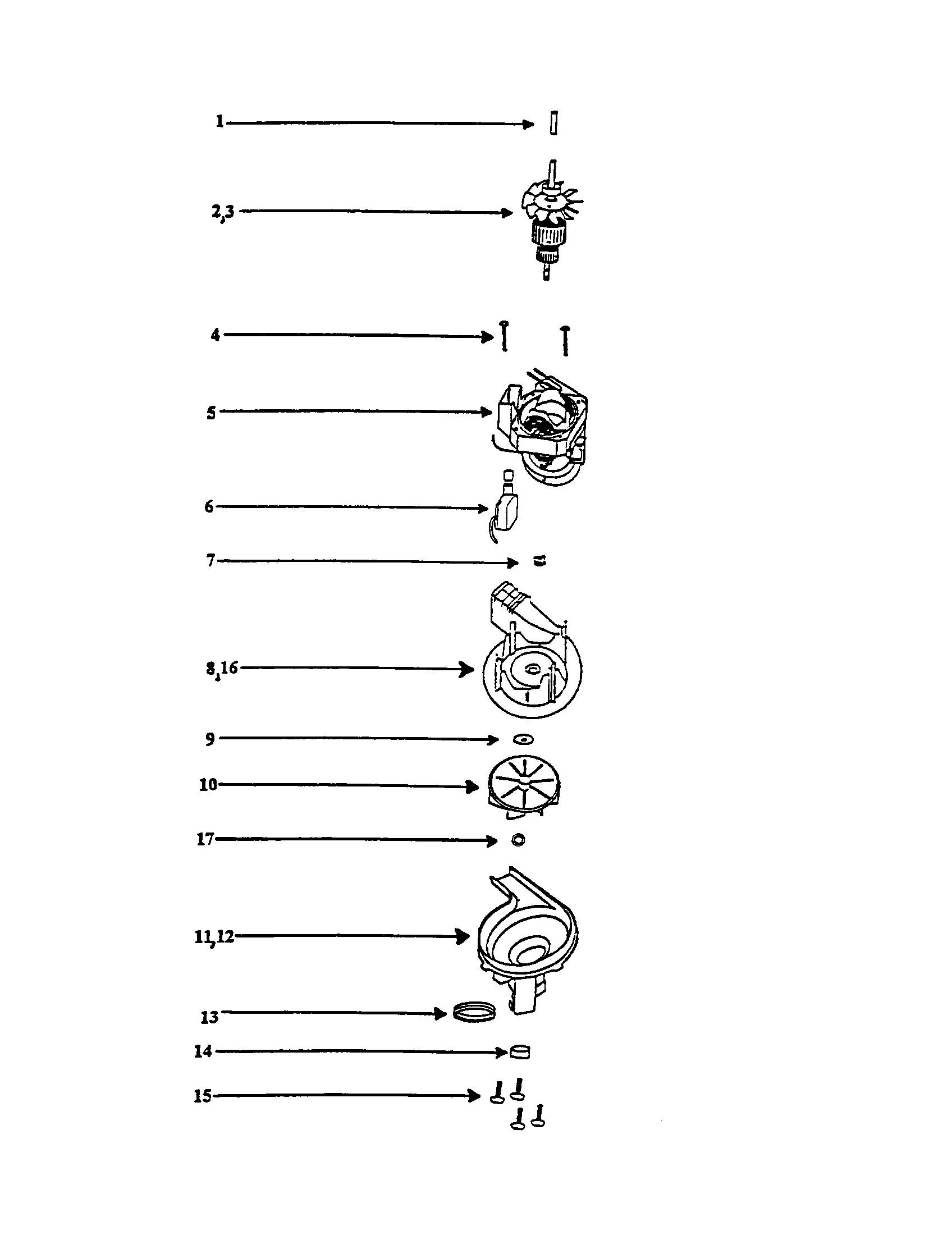

Fan cover diagram

Vacuum screw, 10-pack

Part #53238-18

The manufacturer no longer makes this part, and there's no substitute part

Switch 39406-1
#6

Fan cover diagram

Switch

Part #39406-1

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 15344B-313N
#13

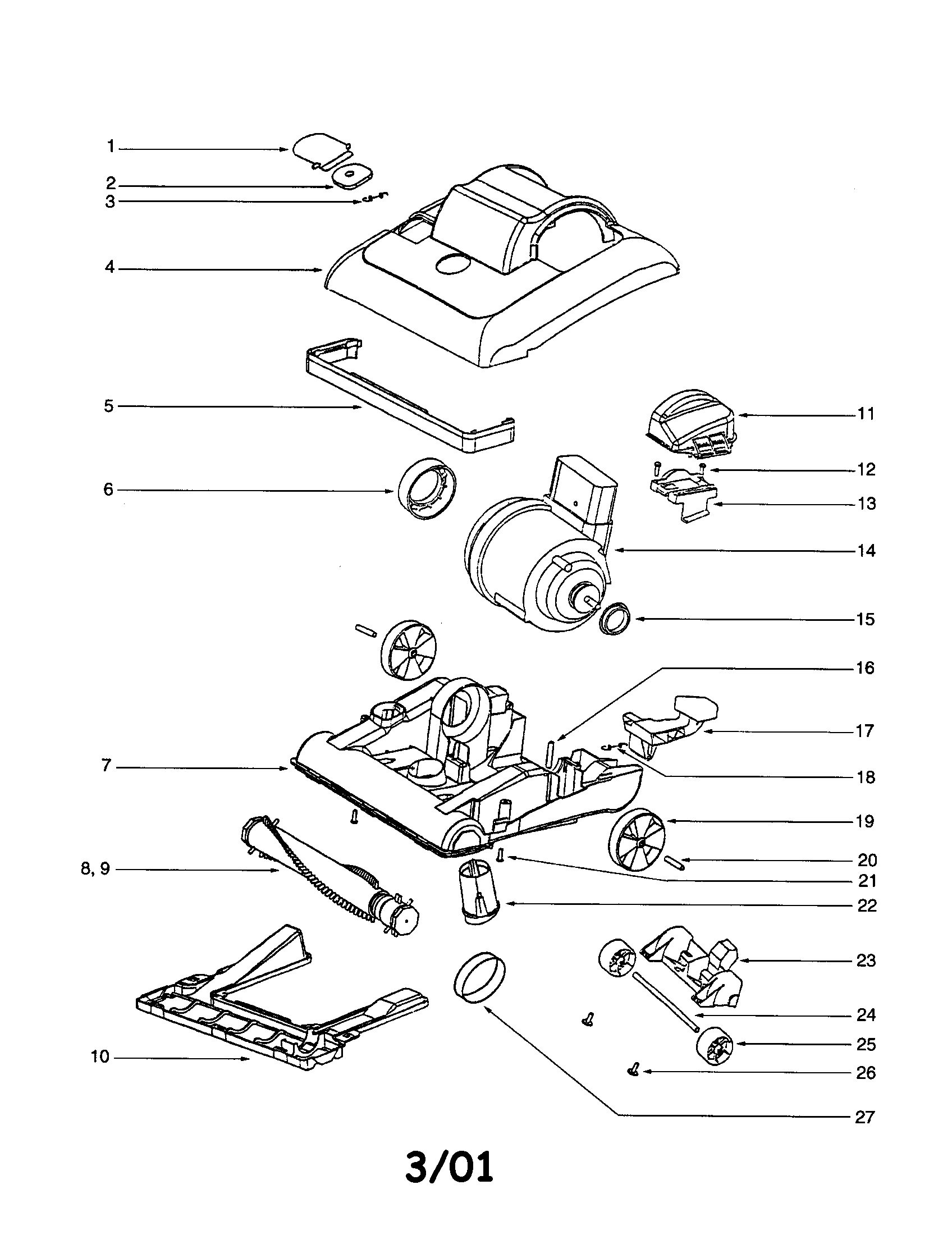

Hood diagram

Motor bracket

Part #15344B-313N

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#4

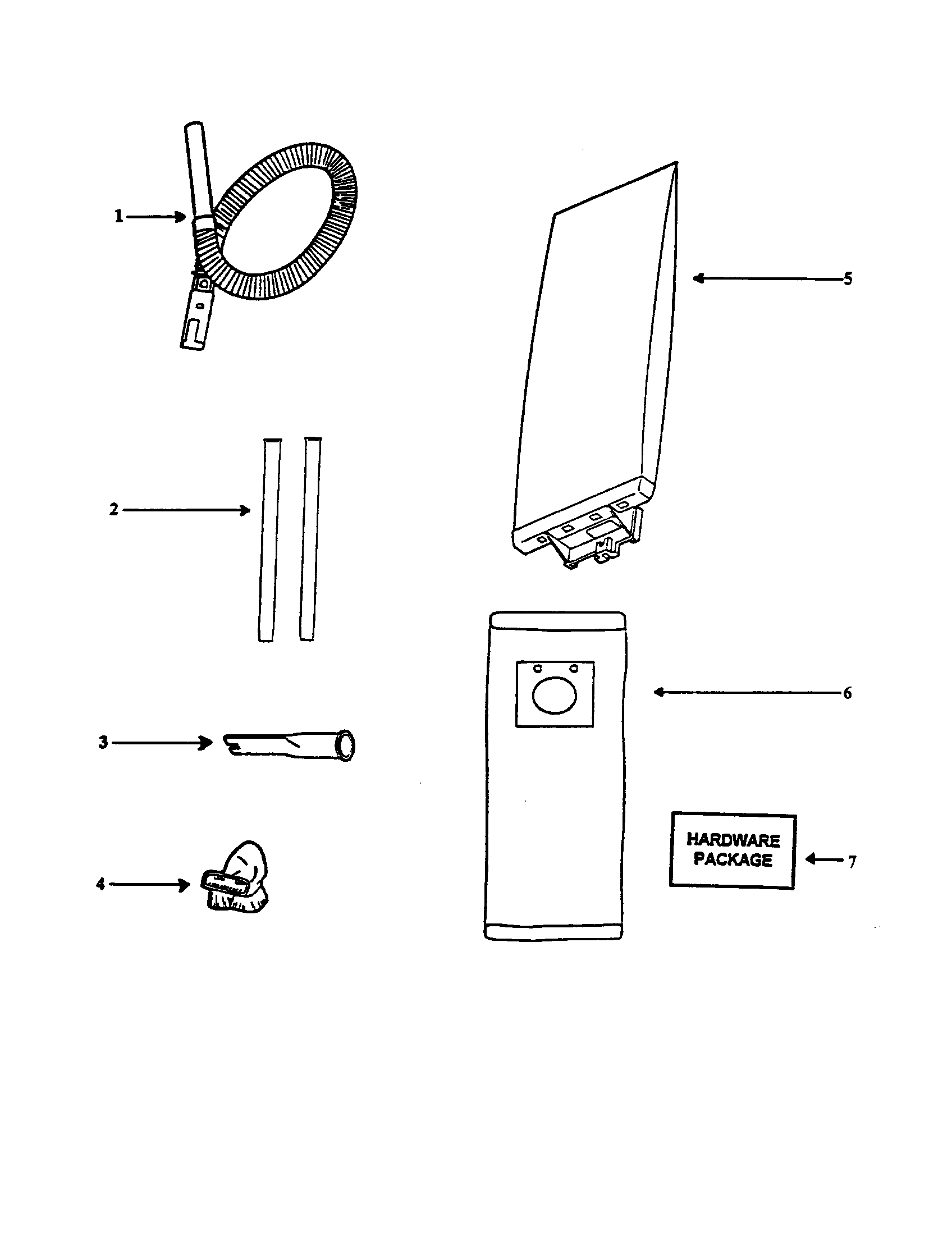

Hose diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 70885

#NI

All parts diagram

Owner's manual

Part #70885

The manufacturer no longer makes this part, and there's no substitute part

Screw 53238-38
#15

Fan cover diagram

Screw

Part #53238-38

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 28342A-288N
#22

Hood diagram

Vacuum knob

Part #28342A-288N

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 60165
#7

Fan cover diagram

Retaining ring

Part #60165

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-13
#8

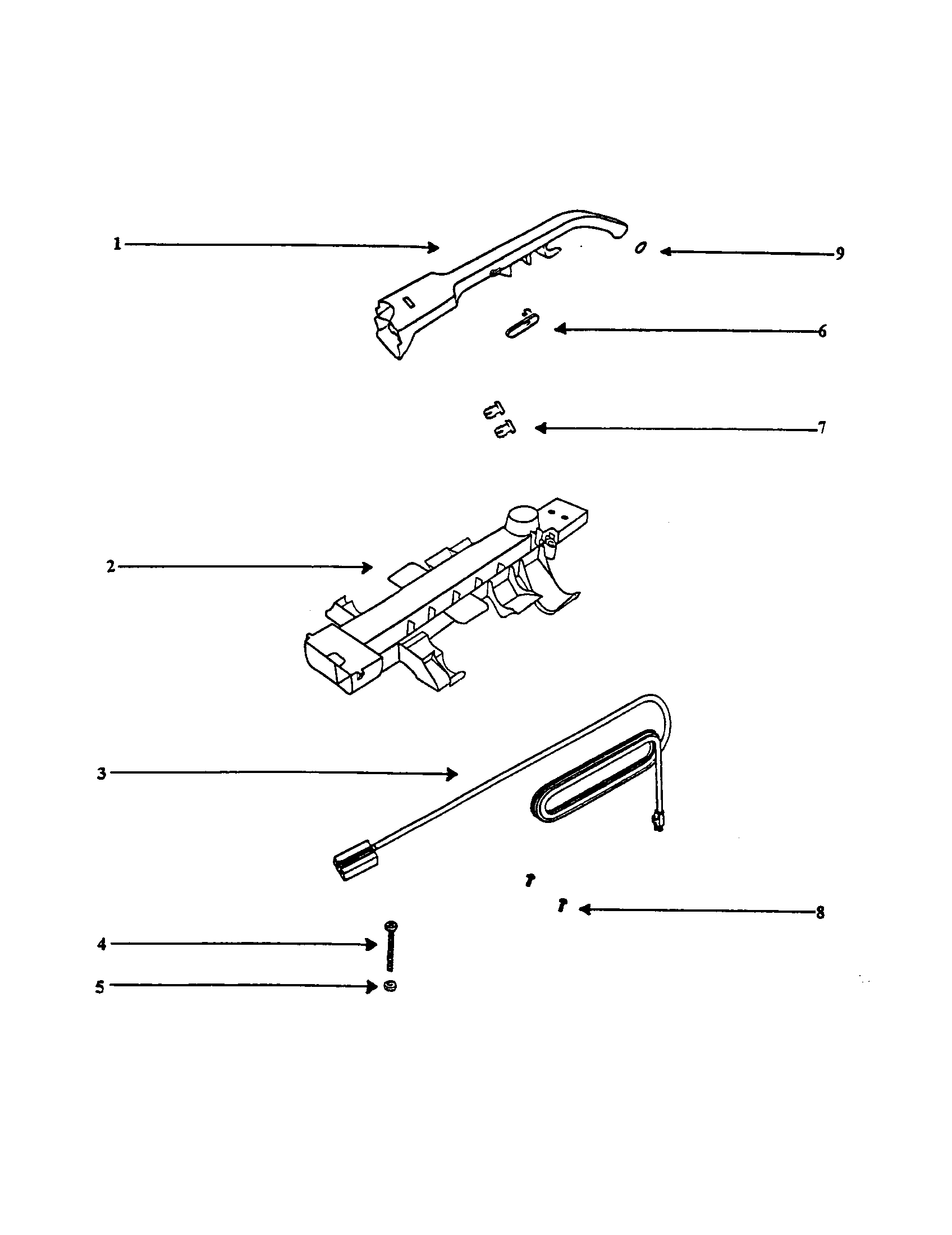

Handle diagram

Vacuum screw, 10-pack

Part #53238-13

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Nut 53213-5
#5

Handle diagram

Kenmore nut

Part #53213-5

The manufacturer no longer makes this part, and there's no substitute part
