Model # CPE42-1FB Official Janitrol heat pump

Here are the diagrams and repair parts for Official Janitrol CPE42-1FB heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Bi-flow Drie B12192-01
#23

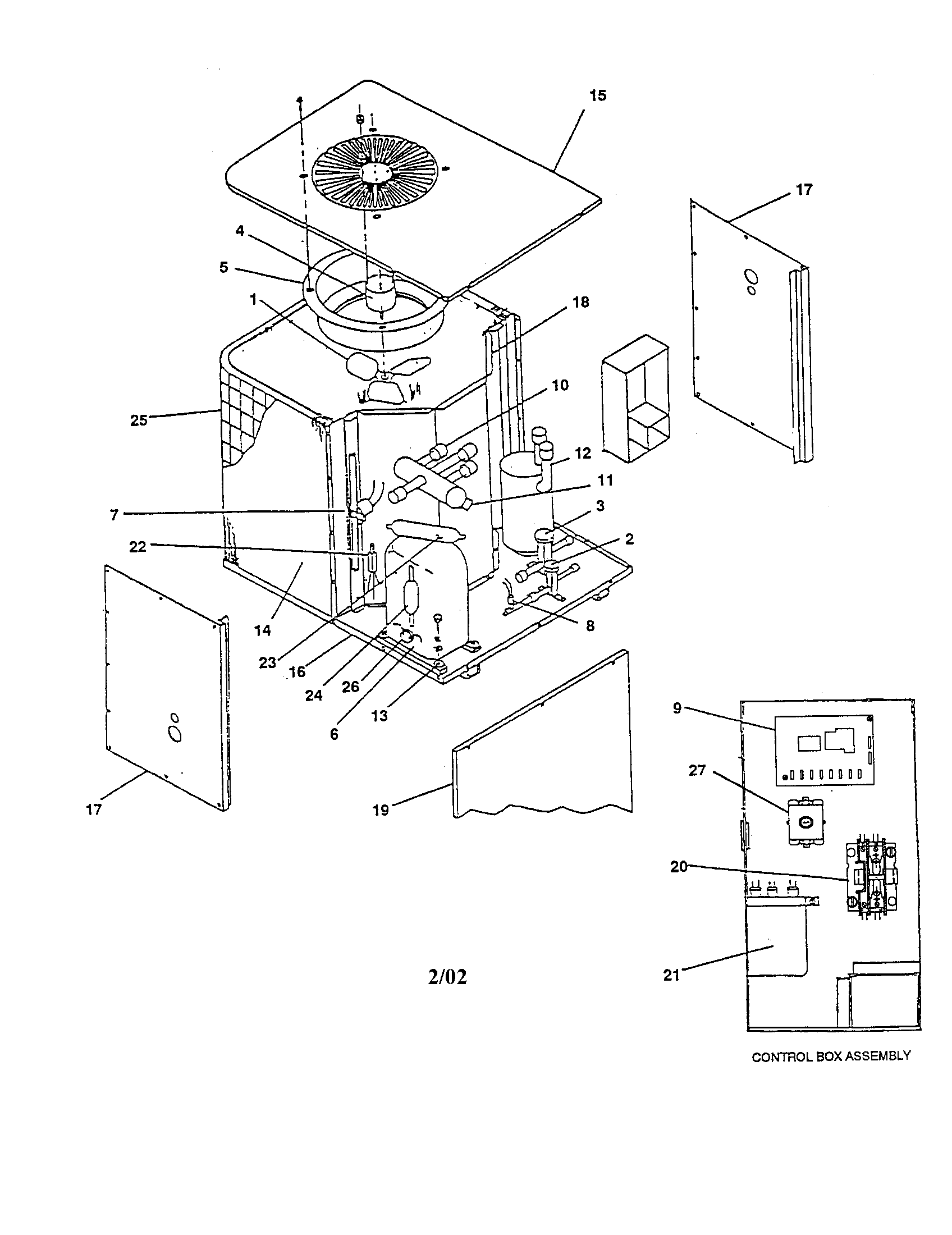

Heat pump diagram

Bi-flow drie

Part #B12192-01

Replaced by #163S

?
Manufacturer substitution
This part replaces B12192-01. Substitute parts can look different from the original.
$48.94 |
11% OFF Phone Price : $54.94
In Stock
Contactor 25 B13603-21
#20

Heat pump diagram

Contactor 25

Part #B13603-21

Replaced by #94-388

?
Manufacturer substitution
This part replaces B13603-21. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Capacitor 5/ B9456-50
#21C

Heat pump diagram

Capacitor 5/

Part #B9456-50

Replaced by #12005

?
Manufacturer substitution
This part replaces B9456-50. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Capacitor 40 B9457-5600
#21A

Heat pump diagram

Capacitor 40

Part #B9457-5600

Replaced by #STD379405

?
Manufacturer substitution
This part replaces B9457-5600. Substitute parts can look different from the original.
$54.99
In Stock
Capacitor 60 B9457-7500
#21B

Heat pump diagram

Capacitor 60

Part #B9457-7500

Replaced by #CAP050600440RTP

?
Manufacturer substitution
This part replaces B9457-7500. Substitute parts can look different from the original.
$49.56 |
11% OFF Phone Price : $55.56
In Stock
Reversing Va B12273-10
#10

Heat pump diagram

Reversing va

Part #B12273-10

Replaced by #0151R00070SP

?
Manufacturer substitution
This part replaces B12273-10. Substitute parts can look different from the original.
$227.24
In Stock
Defrost Ther B13708-03
#7

Heat pump diagram

Defrost ther

Part #B13708-03

Replaced by #0130M00105

?
Manufacturer substitution
This part replaces B13708-03. Substitute parts can look different from the original.
$27.22
In Stock
Defrost Time B12260-08
#9

Heat pump diagram

Defrost time

Part #B12260-08

Replaced by #ICM318

?
Manufacturer substitution
This part replaces B12260-08. Substitute parts can look different from the original.
$78.08 |
7% OFF Phone Price : $84.08
In Stock
Base Valve 3 B12825-40
#2

Heat pump diagram

Base valve 3

Part #B12825-40

Replaced by #20163801

?
Manufacturer substitution
This part replaces B12825-40. Substitute parts can look different from the original.
$174.10
In Stock
Motor 1/3 Hp B13400-248
#4A

Heat pump diagram

Motor 1/3 hp

Part #B13400-248

Replaced by #0131M00430SF

?
Manufacturer substitution
This part replaces B13400-248. Substitute parts can look different from the original.
$308.70 |
$12.00 OFF Phone Price : $320.70
In Stock
