Model # 917270241 Official Craftsman 4-hp shredder

Here are the diagrams and repair parts for Official Craftsman 917270241 4-hp shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Bolt 3336P
#77

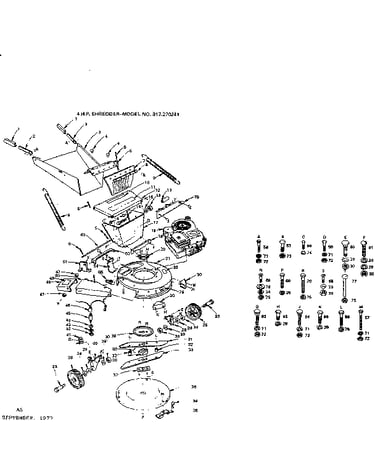

Replacement parts diagram

Bolt

Part #3336P

The manufacturer no longer makes this part, and there's no substitute part

Tiller Handle Grip 8206H
#1

Replacement parts diagram

Tiller handle grip

Part #8206H

Replaced by #532008206

?
Manufacturer substitution
This part replaces 8206H. Substitute parts can look different from the original.
$17.11
In Stock
Shldr Bolt 4898H
#23

Replacement parts diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bolt STD523707
Bolt

Part #STD523707

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 1605H
#74

Replacement parts diagram

Lock nut

Part #1605H

The manufacturer no longer makes this part, and there's no substitute part

Decal 9150R
#79

Replacement parts diagram

Decal

Part #9150R

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#56

Replacement parts diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#71

Replacement parts diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Deflector 4628R
#7

Replacement parts diagram

Deflector

Part #4628R

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541025
#14

Replacement parts diagram

Nut

Part #STD541025

The manufacturer no longer makes this part, and there's no substitute part
