Model # URFS518S-P1330227M Official Amana microwave

Here are the diagrams and repair parts for Official Amana URFS518S-P1330227M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

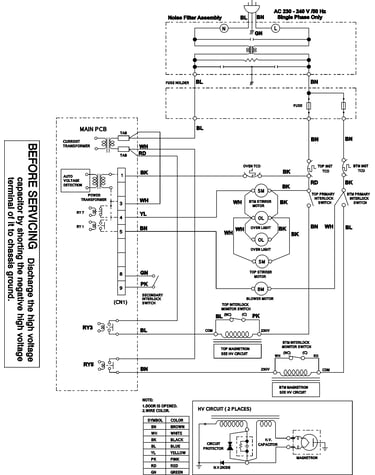

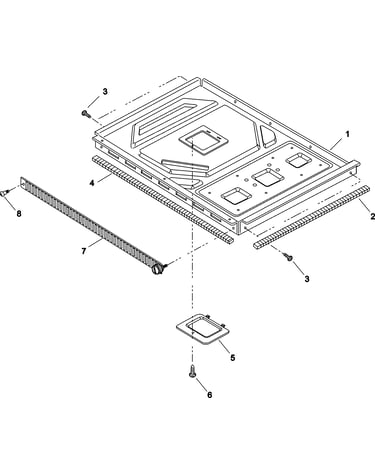

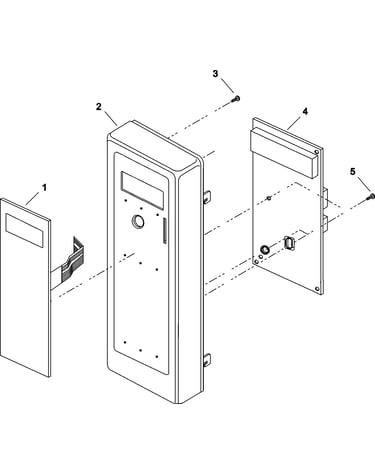

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
"screw, Binin" R0654028
"screw, binin"

Part #R0654028

Replaced by #4344826

?
Manufacturer substitution
This part replaces R0654028. Substitute parts can look different from the original.
$12.49
In Stock
Tapping Screw R0131246
Tapping screw

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Microwave Thermostat 53001561
#8

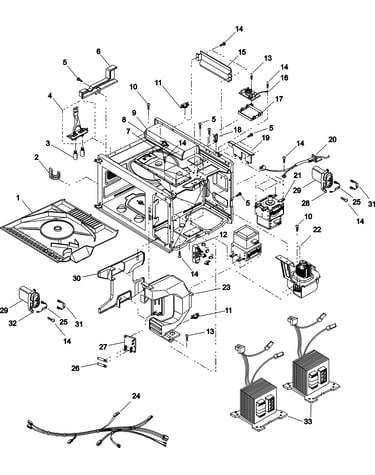

Electrical, grease shield, ducts, diagram

Microwave thermostat

Part #53001561

Replaced by #W10864742

?
Manufacturer substitution
This part replaces 53001561. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
In Stock
Plate Screw R0654036
#3

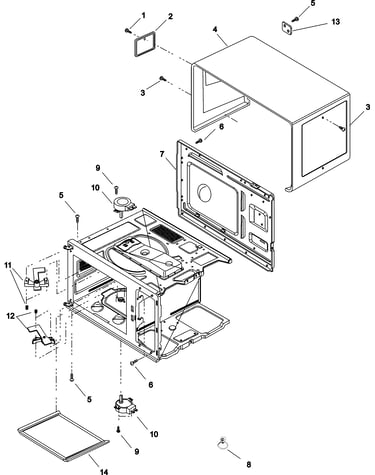

Antenna, tray, outercase, diagram

Plate screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Microwave Diode R9800486
#25

Electrical, grease shield, ducts, diagram

Microwave diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Cable Assembly 53001725
#31

Electrical, grease shield, ducts, diagram

Cable assembly

Part #53001725

The manufacturer no longer makes this part, and there's no substitute part

Bracket Cap 53001728
#28

Electrical, grease shield, ducts, diagram

Bracket cap

Part #53001728

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 53001743
#20A

Electrical, grease shield, ducts, diagram

Power cord

Part #53001743

The manufacturer no longer makes this part, and there's no substitute part

Antenna Kit 12002592
#11

Antenna, tray, outercase, diagram

Antenna kit

Part #12002592

The manufacturer no longer makes this part, and there's no substitute part

Choke Cover 53001572
#2

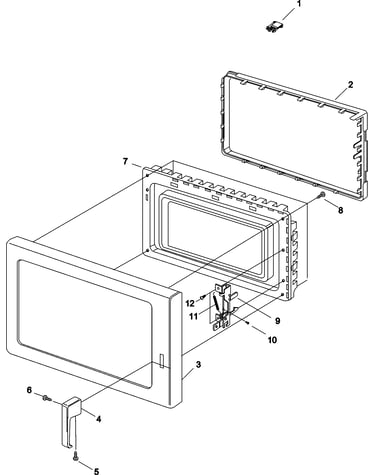

Door diagram

Choke cover

Part #53001572

The manufacturer no longer makes this part, and there's no substitute part
